12.5 E: MOTOR
624 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
E5-01 PM Mot Code Selection
No.
(Hex.)
Name Description
Default
(Range)
E5-01
(0329)
PM Mot Code Selection
Sets the motor code for Yaskawa PM motors. The drive uses the motor code to set some
parameters to their correct settings automatically.
Determined by A1-02, o2-
04, and C6-01
(0000 - FFFF)
Note:
If the drive hunts or shows an alarm after you use a motor code, use the keypad to enter the value shown on the nameplate to E5-xx.
When you use a PM motor other than a Yaskawa SMRA, SSR1, or SST4 series, set E5-01 = FFFF.

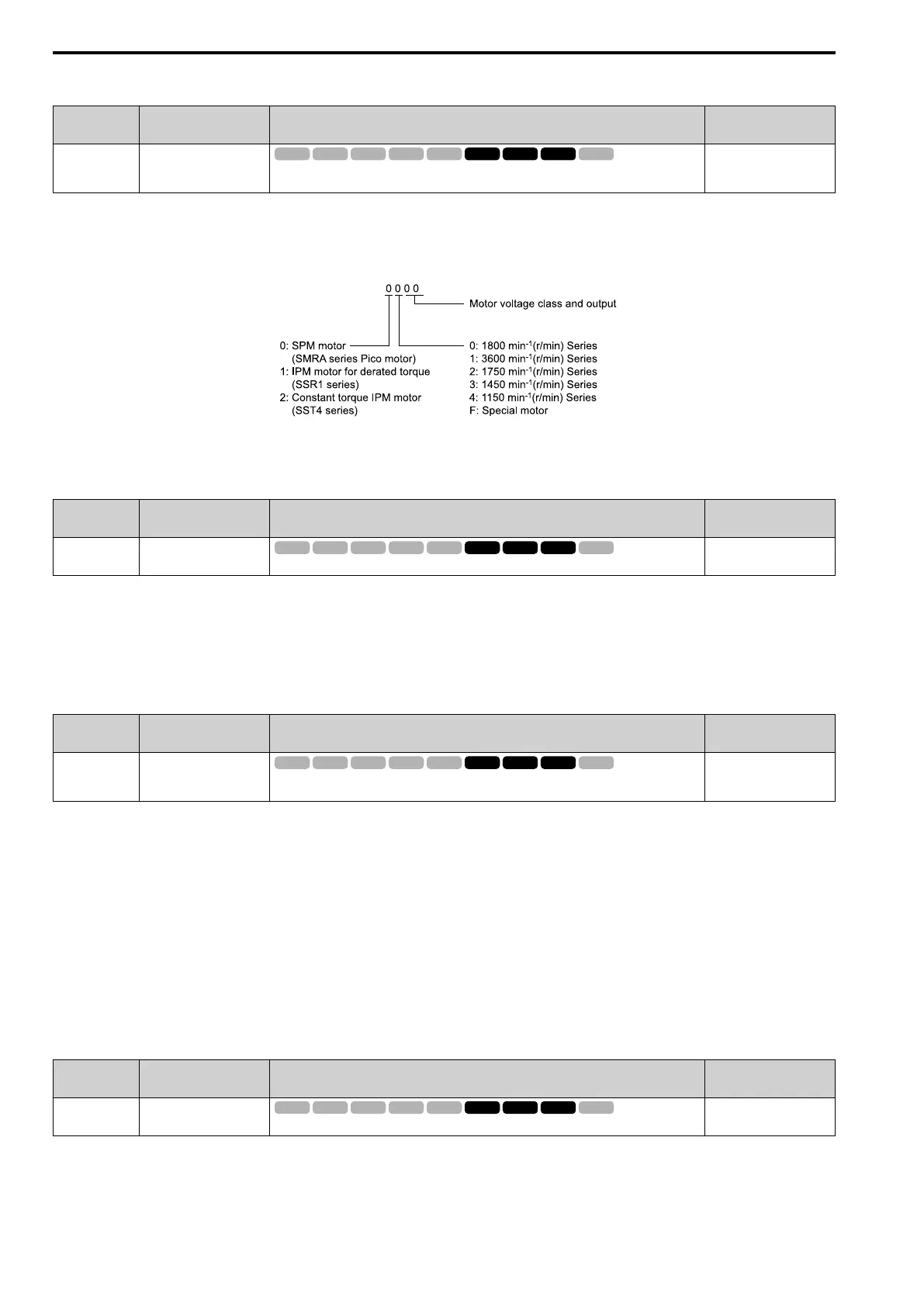

Figure 12.69 gives information about the motor code setting digits.
Figure 12.69 PM Motor Code
E5-02 PM Mot Rated Power (kW)
No.
(Hex.)
Name Description
Default
(Range)
E5-02
(032A)
PM Mot Rated Power (kW)
Sets the PM motor rated power.
Determined by E5-01
(0.10 - 650.00 kW)
These types of Auto-Tuning will automatically set this parameter:
PM Motor Parameter Settings
PM Stationary Auto-Tuning
PM Rotational Auto-Tuning
E5-03 PM Mot Rated Current (FLA)
No.
(Hex.)
Name Description
Default
(Range)
E5-03
(032B)
PM Mot Rated Current
(FLA)
Sets the PM motor rated current (FLA).
Determined by E5-01
(10% to 200% of the drive
rated current)
Note:
When the drive model changes, the display units for this parameter also change.
0.01 A: 4002 to 4023
0.1 A: 4031 to 4675
The drive automatically sets E5-03 to the value input for PM Motor Rated Current after you do these types of
Auto-Tuning:
PM Motor Parameter Settings
PM Stationary Auto-Tuning
PM StaTun for Stator Resistance
PM Rotational Auto-Tuning
E5-04 PM Mot Pole Count
No.
(Hex.)
Name Description
Default
(Range)
E5-04
(032C)
PM Mot Pole Count
Sets the number of PM motor poles.
Determined by E5-01
(2 - 120)
Note:
When A1-02 = 7 [Control Method = PM CLVector], the maximum value is 120.
When A1-02 = 5, 6 or 8 [PM OLVector, PM AOLVector or EZ Vector], the maximum value is 48.
