Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 691
This output is input to the Watt hour meter or PLC through a 200 ms pulse signal. This parameter sets the kWh
unit for each pulse output.

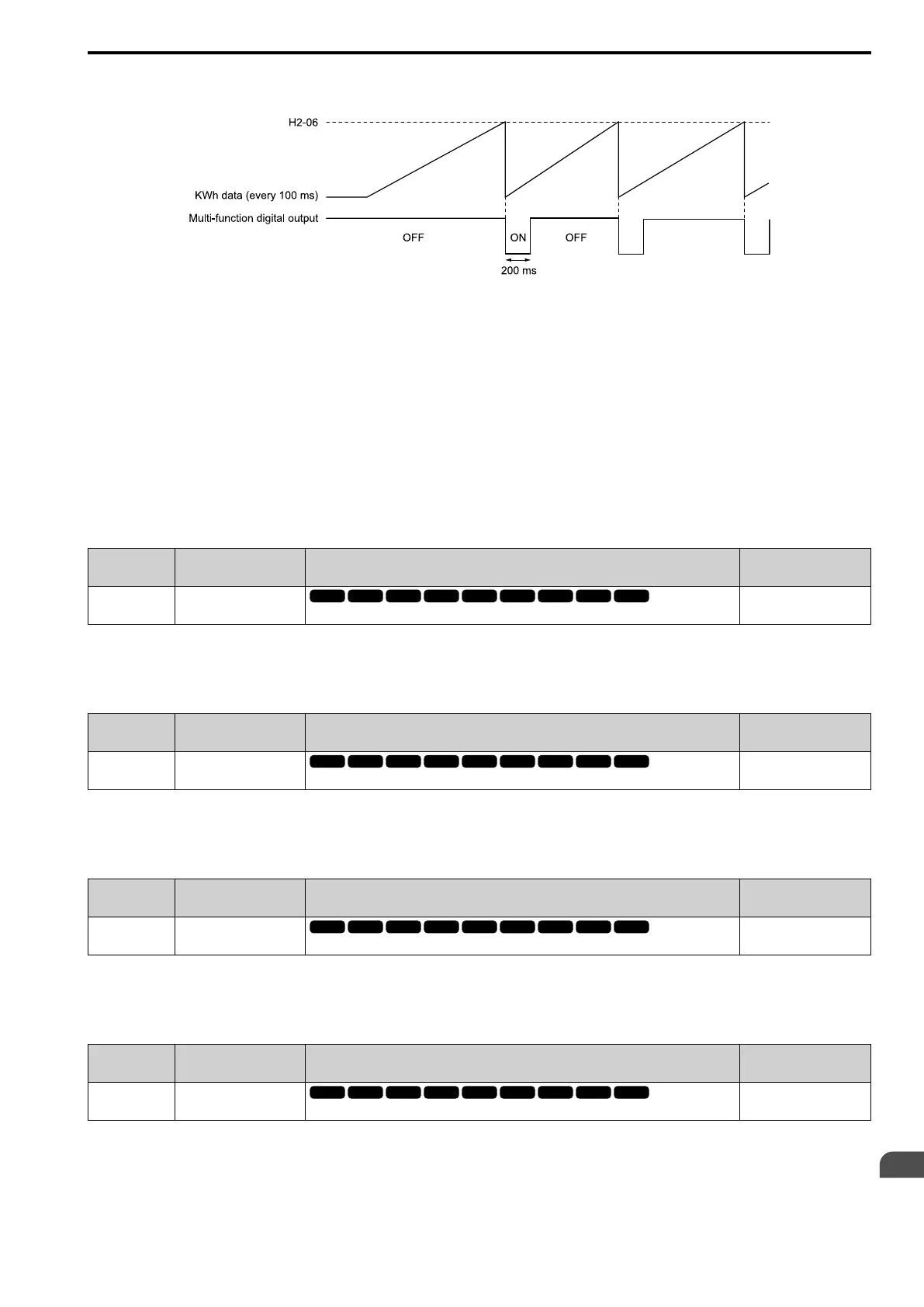

Figure 12.83 Example MFDO when Configured for Watt Hours
Note:
• When the power value is a negative value (regenerative state), the drive does not count Watt hours.
• When the control power supply to the drive is operating, the drive will keep the Watt hours. If a momentary power loss causes the drive
to lose control power, the Watt hour count will reset.
1 : 0.1 kWh units
2 : 1 kWh units
3 : 10 kWh units
4 : 100 kWh units
5 : 1000 kWh units
■ H2-07 Mbus Reg1 Address Select
No.
(Hex.)
Name Description
Default
(Range)
H2-07
(0B3A)
Mbus Reg1 Address Select
Sets the address of the Modbus register output to the MFDO terminal.
0001
(0001 - 1FFF)
Configures H2-07 with the address of the register that is output to ModbusReg 1 [H2-01 to H2-03 = 67] and
configures H2-08 with the bit.
■ H2-08 Mbus Reg1 Bit Select
No.
(Hex.)
Name Description
Default
(Range)
H2-08
(0B3B)
Mbus Reg1 Bit Select
Sets the bit of the Modbus register output to the MFDO terminal.
0000
(0000 - FFFF)
Sets the bit of the register that is output to ModbusReg 1 [H2-01 to H2-03 = 67] and uses the address in H2-07
[Mbus Reg1 Address Select].
■ H2-09 Mbus Reg2 Address Select
No.
(Hex.)
Name Description
Default
(Range)
H2-09
(0B3C)
Mbus Reg2 Address Select
Sets the address of the Modbus register output to the MFDO terminal.
0001
(0001 - 1FFF)
Sets H2-09 with the address of the register that is output to ModbusReg 2 [H2-01 to H2-04 = 69] and uses the bit
in H2-10 [Mbus Reg2 Bit Select].
■ H2-10 Mbus Reg2 Bit Select
No.
(Hex.)
Name Description
Default
(Range)
H2-10
(0B3D)
Mbus Reg2 Bit Select
Sets the bit of the Modbus register output to the MFDO terminal.
0000
(0000 - FFFF)
Sets the bit of the register that is output to ModbusReg 2 [H2-01 to H2-03 = 69] and uses the address in H2-09
[Mbus Reg2 Address Select].
