Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 703
■ 13: FreqDetect 1
Setting Value Function Description
13 FreqDetect 1
The terminal turns off when the output frequency is higher than the value of L4-01 [SpAgree Det.Level] + L4-02 [SpAgree Det.
Width]. After the terminal turns off, the terminal continues to remain off until the output frequency reaches the level set with
L4-01.
Note:
• The motor rotation direction does not have an effect on the detection function. The drive uses the L4-01 value as the forward/reverse
detection level.
• CLV control uses motor speed as the reference.
ON : The output frequency is less than the value of L4-01 or is not more than the value of L4-01 +
L4-02.
OFF : The output frequency is higher than the value of L4-01 + L4-02.

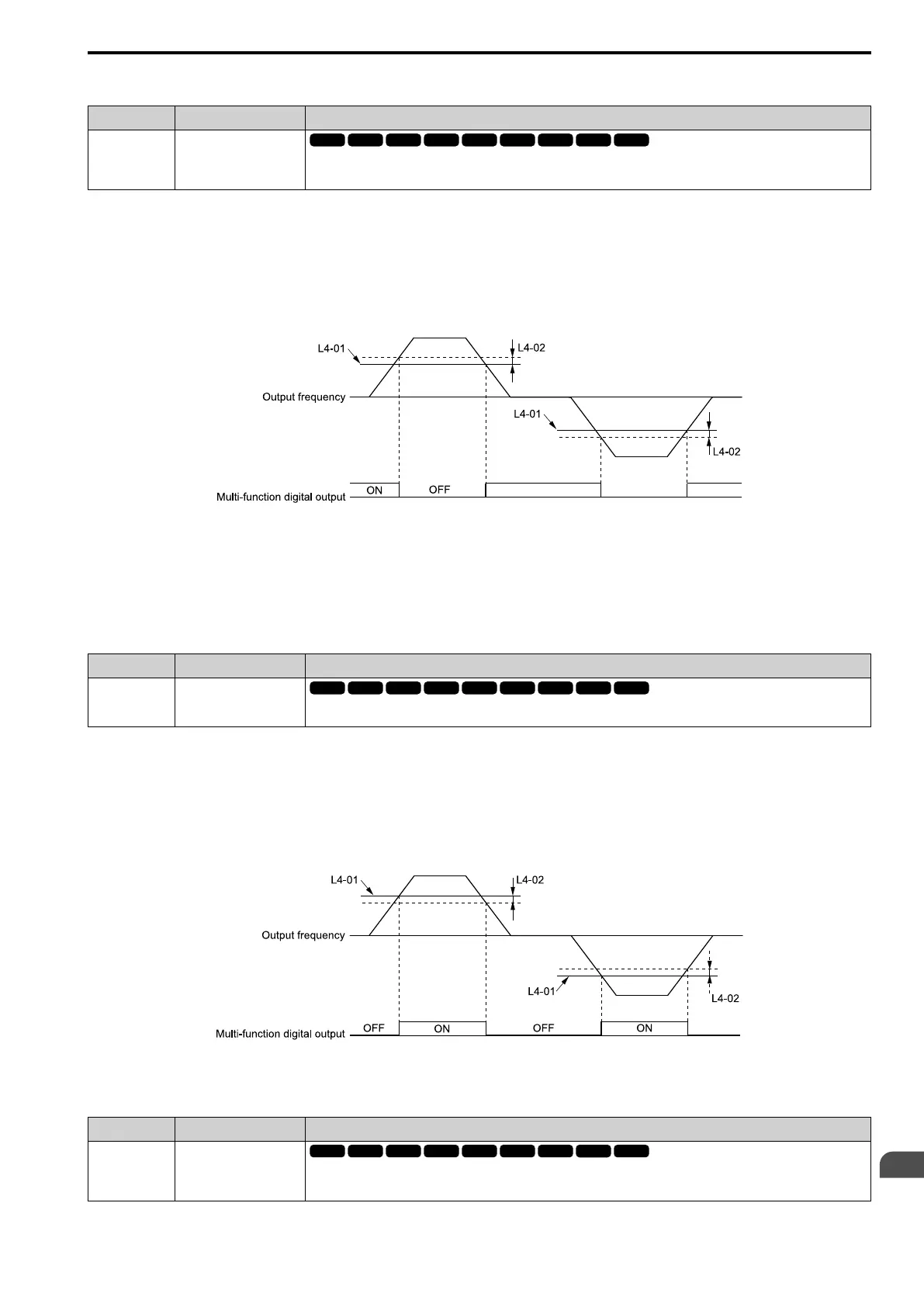

Figure 12.92 Frequency Detection 1 Time Chart
Note:
Figure 12.92 shows the result of the configuration when L4-07 = 2 [SpAgree Det.Selection = Always Detect]. The default setting of L4-
07 is 1 [No Detect@BB]. When the speed agreement detection selection is “No Detect@BB”, the terminal is deactivated when the drive
output stops.
■ 14: FreqDetect 2
Setting Function Description
14 FreqDetect 2
The terminal activates when the output frequency is higher than the setting value of L4-01 [SpAgree Det.Level]. After the
terminal activates, the terminal stays on until the output frequency is at the value of L4-01 - L4-02.
Note:
• The motor rotation direction does not have an effect on the detection function. The drive uses the L4-01 value as the forward/reverse
detection level.
• CLV control uses motor speed as the reference.
ON : The output frequency is higher than the value of L4-01.
OFF : The output frequency is less than the value of “L4-01 - L4-02”, or is less than the value of
L4-01.
Figure 12.93 Frequency Detection 2 Time Chart
■ 15: FreqDetect 3
Setting Function Description
15 FreqDetect 3
The terminal deactivates when the output frequency is higher than the setting value of “L4-03 [SpAgree Det.Level(+/-)] + L4-04
[SpAgree Det.Width(+/-)]”. After the terminal deactivates, the terminal stays off until the output frequency is at the value of L4-
03.
