Omron R88D-1SAN-ECT Series User Manual

23

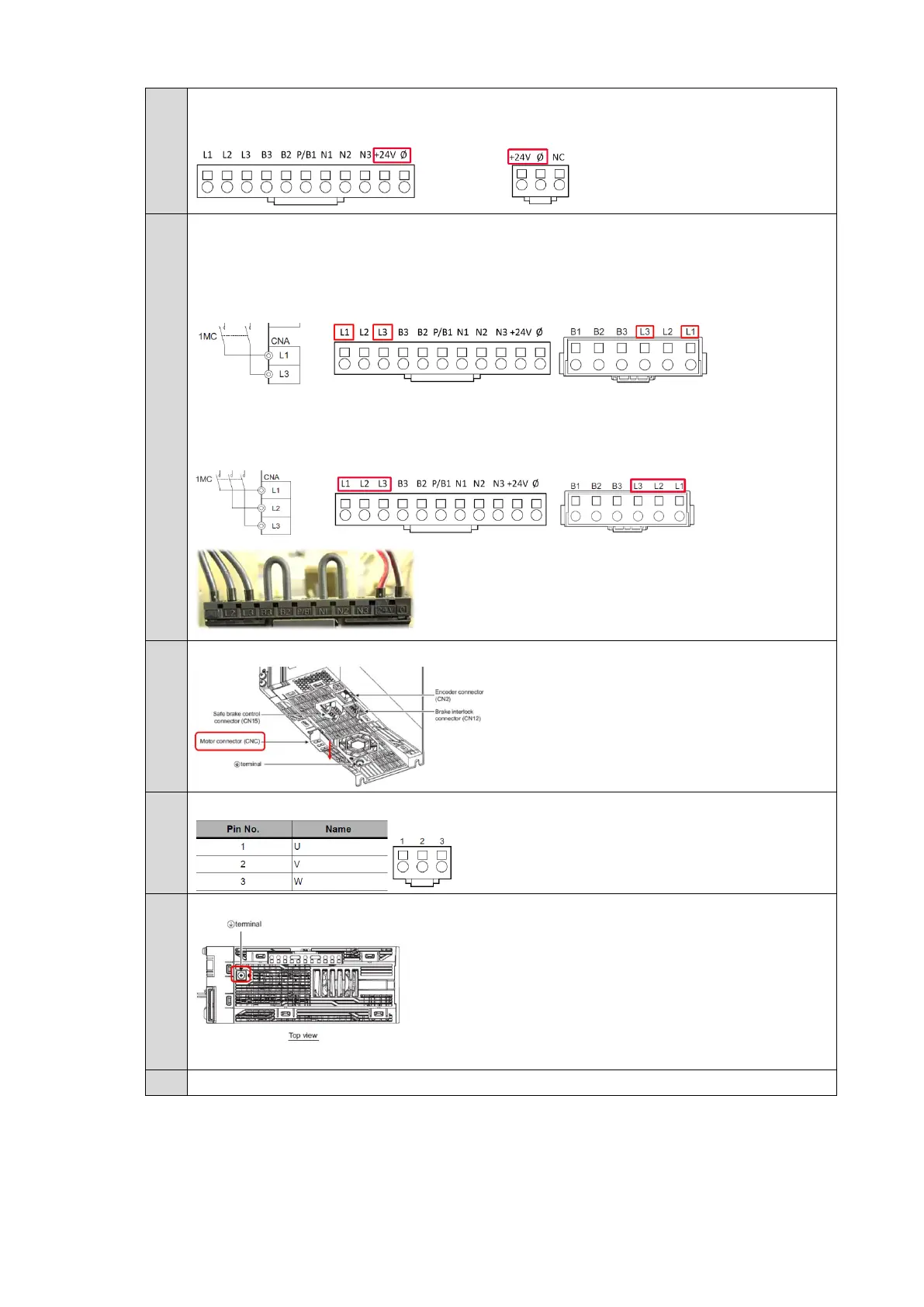

CNA for 200 V (up to 1 kW) CND for 200 V (1.5 - 3 kW) and 400 V (1 - 3
kW)
4.
Wire the main circuit power supply.
Check the connector corresponding to your Servo Drive and AC power supply.
Single-phase
200 V (up to 1 kW) 200 V (1.5 kW)
3-phase
200 V (up to 1 kW) 200 V (1.5 - 3 kW) and 400 V (1 - 3
kW)
Example: CNA for 200 V (up to 1 kW)
5.
Remove the motor connector (CNC) from the Servo Drive.
6.
Connect the power line to the phase U, V, and W of the Servomotor.
7.
Screw the PE wire of the main circuit power supply cable to the Servo Drive.
8.
Plug back the above connectors to the Servo Drive. (Power and motor)
