Omron R88D-1SAN-ECT Series User Manual

22

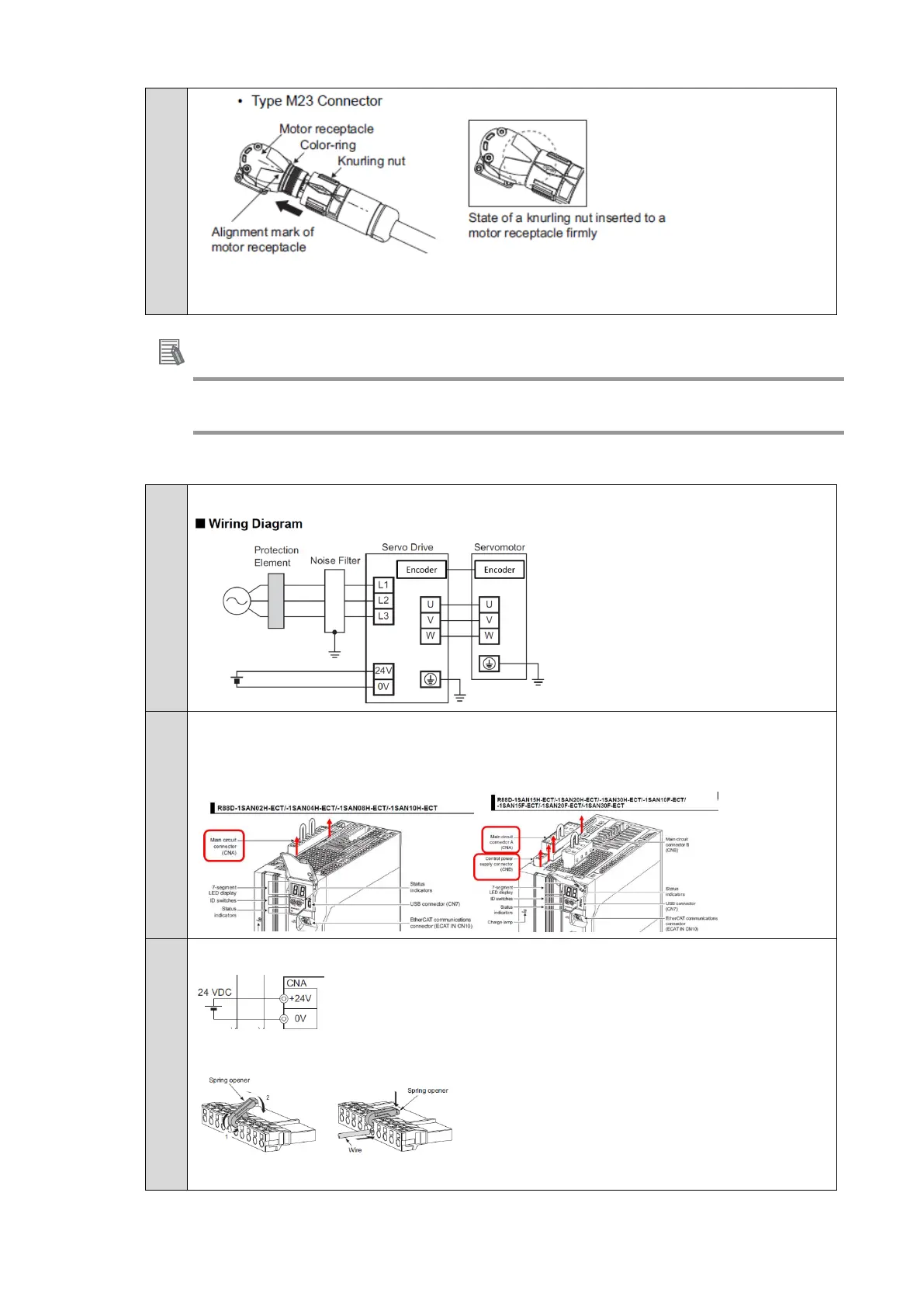

Turn the knurling nut to clockwise direction until it stops.
Additional Information
For further details on how to mount the Servomotor, refer to the 1S-series AC Servomotors/Servo
Drives with Built-in EtherCAT Communications and Safety Functionality User’s Manual (Cat. No. I621).
◼ Wiring
1.
Overview
2.
Remove the main circuit connector (CNA), or the main circuit connector A (CNA)
and control power supply connector (CND) from the Servo Drive.
200 V (up to 1 kW) 200 V (1.5 - 3 kW) and 400 V (1 - 3 kW)
3.
Wire the 24 V control power supply.
Connect wires with the spring opener.
Check the connector corresponding to your Servo Drive and AC power supply.
