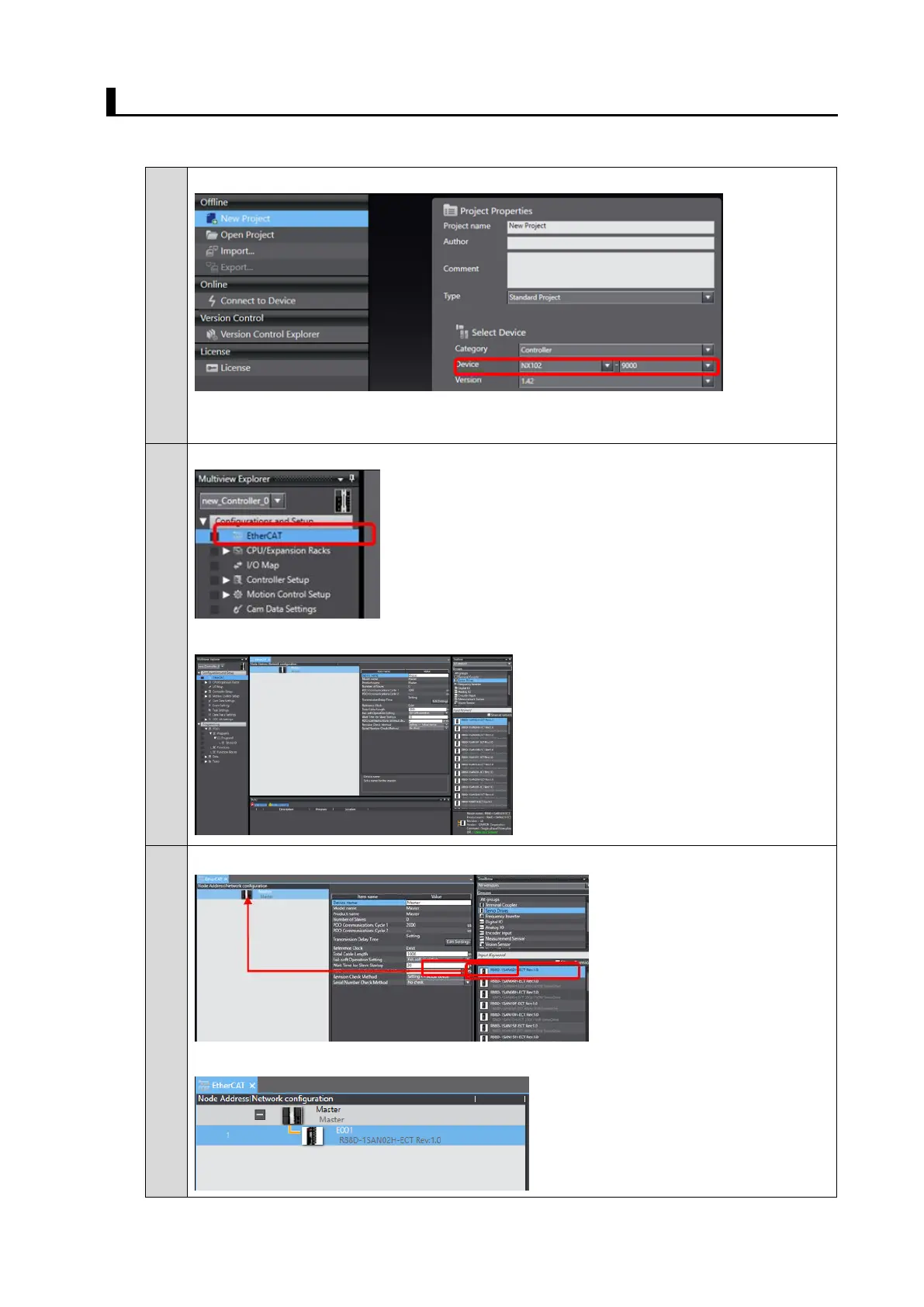

3.3. Sysmac Studio Project Creation
◼ Creating a Network Configuration
1.
Select the NX102-9000 Controller from the list.
Note: When using the motor sizing tool results file, refer to the Adding a Servo Drive and
Axis from Motor Sizing Tool Results under Appendices.
2.
Double-click EtherCAT under Configurations and Setup in the Multiview Explorer.
The EtherCAT Tab Page is displayed in the Edit Pane.
3.
Drag a Servo Drive from the Toolbox to the Master in the EtherCAT Tab Page.
The Servo Drive with a node address of 1 is added under the Master.
