◼ I/O Wiring
When using general-purpose I/O, make the wiring as shown below.

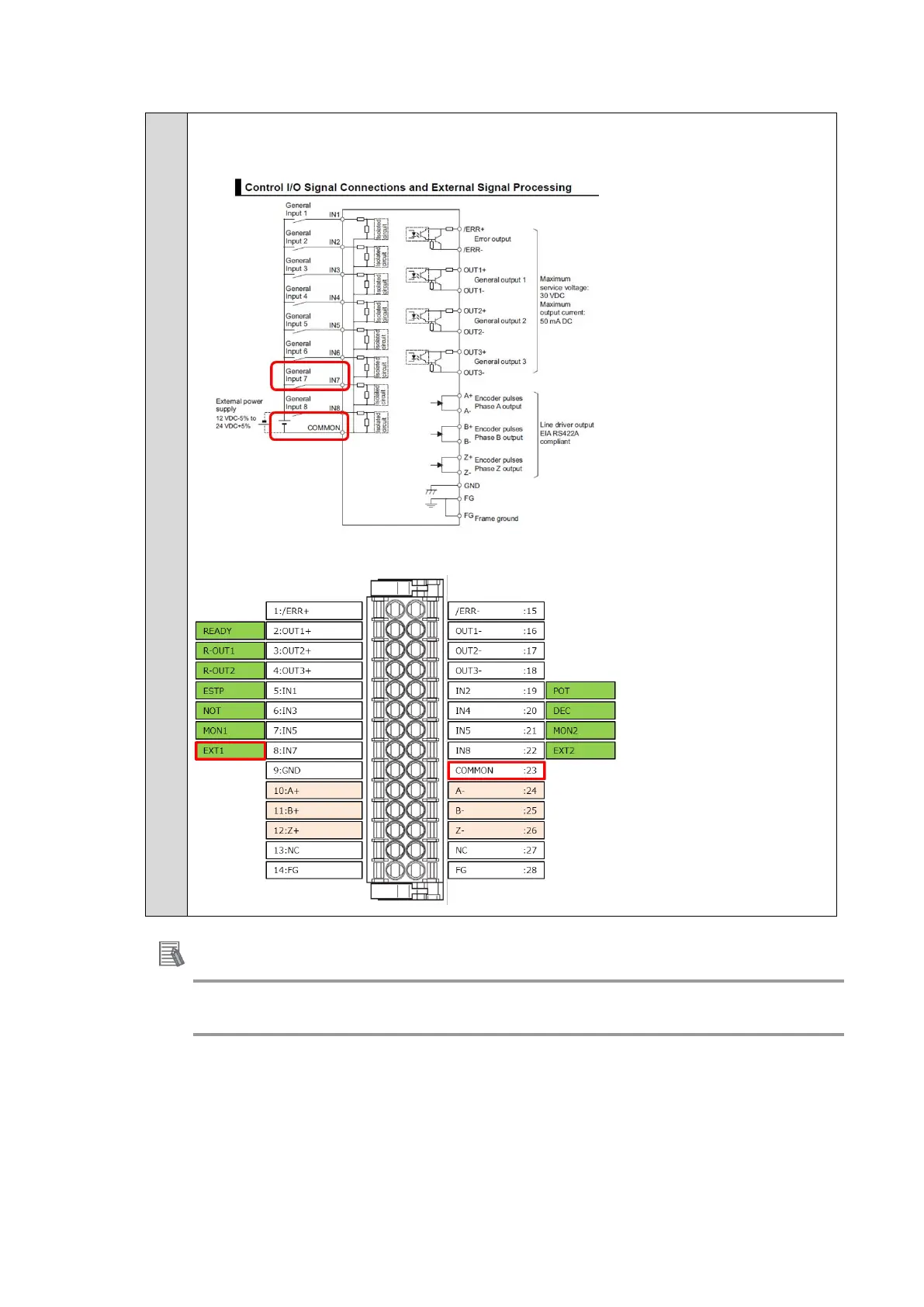

Example of Latch Input 1:
Servo Drive connector view:
Additional Information
For further details on wiring, refer to the 1S-series AC Servomotors/Servo Drives with Built-in EtherCAT
Communications and Safety Functionality User’s Manual (Cat. No. I621).
