2-1 Installation

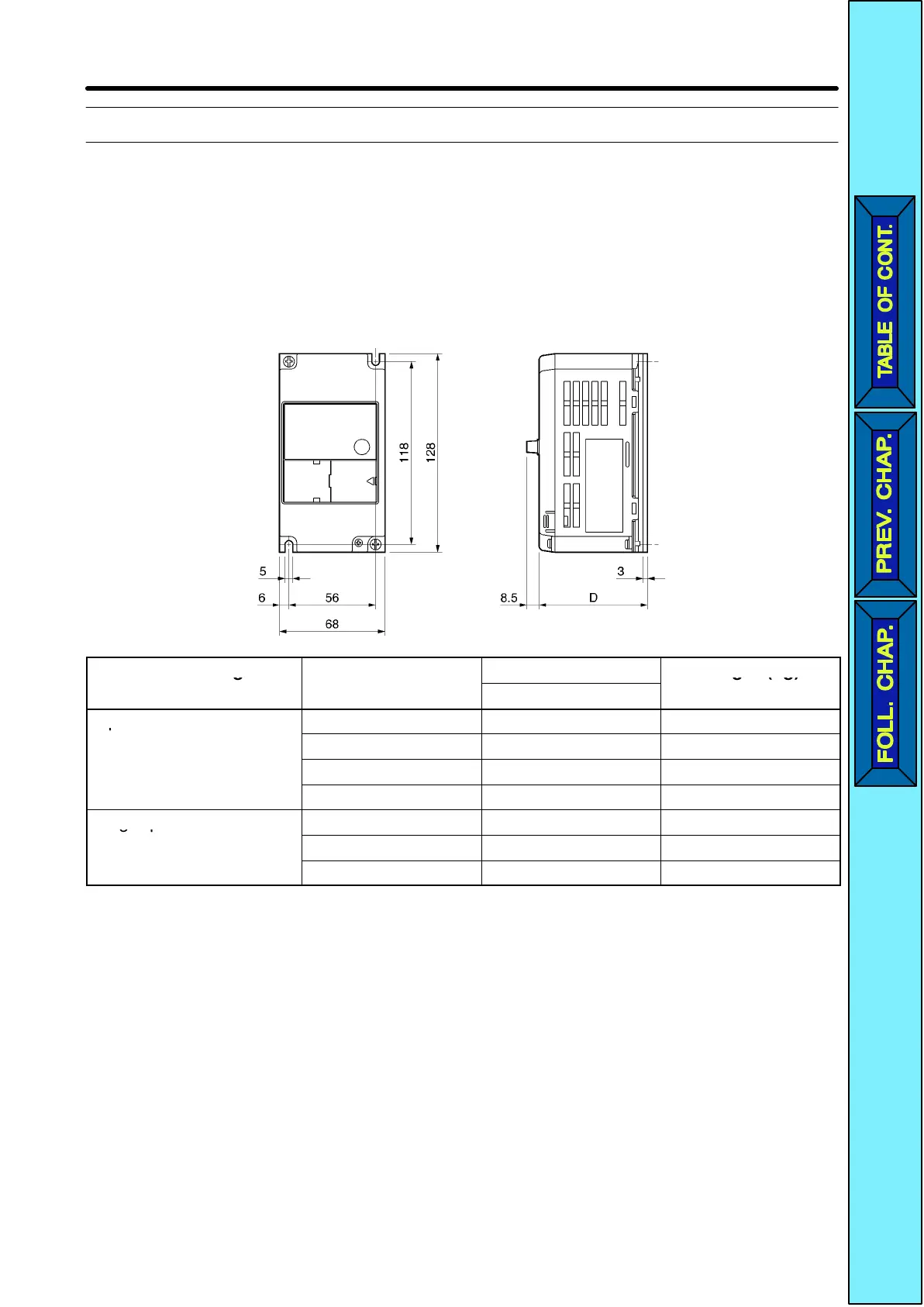

2-1-1 Dimensions
D 3G3JV-A2001 to 3G3JV-A2007 (0.1 to 0.75 kW) 3-phase 200-VAC Input
3G3JV-AB001 to 3G3JV-AB004 (0.1 to 0.4 kW) Single-phase 200-VAC
Input
Rated voltage Model 3G3JV-
Dimensions (mm)
Weight (kg)
ated o tage
ode 3G3J
D
eg t( g)
3-phase 200 VAC
A2001 70 Approx. 0.5
3 p ase 00 C
A2002 70 Approx. 0.5
A2004 102 Approx. 0.8
A2007 122 Approx. 0.9
Single-phase 200 VAC
AB001 70 Approx. 0.5
S g e p ase 00 C
AB002 70 Approx. 0.5
AB004 112 Approx. 0.9
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
