Omron SYSDRIVE 3G3JV Series User Manual

8-4
8-2 Option Specifications
8-2-1 EMC-compatible Noise Filter
•Be sure to select an optimum Noise Filter from the following so that the Inverter will
satisfy EMC directive requirements of the EC Directives.
•Connect the Noise Filter between the power supply and the input terminals (R/L1,
S/L2, and T/L3) of the Inverter.
•The
Inverter can be mounted to the upper side of the Noise Filter because the upper
side of the Noise Filter incorporates mounting holes for the Inverter.
H Standard Specifications
Noise Filters for 3-phase 200-VAC Inverter Models
Inverter Noise Filter for 3-phase 200-VAC Inverter models
Model 3G3JV- Model 3G3JV- Rated current (A) Weight (kg)
A2001/A2002/A2004/A2007 PFI2010-E 10 1.1
A2015/A2022 PFI2020-E 20 1.1
Noise Filters for Single-phase 200-VAC Inverter Models
Inverter Noise Filter for single-phase 200-VAC Inverter models
Model 3G3JV- Model 3G3JV- Rated current (A) Weight (kg)
AB001/AB002/AB004 PFI1010-E 10 1.1
AB007/AB015 PFI1020-E 20 1.1

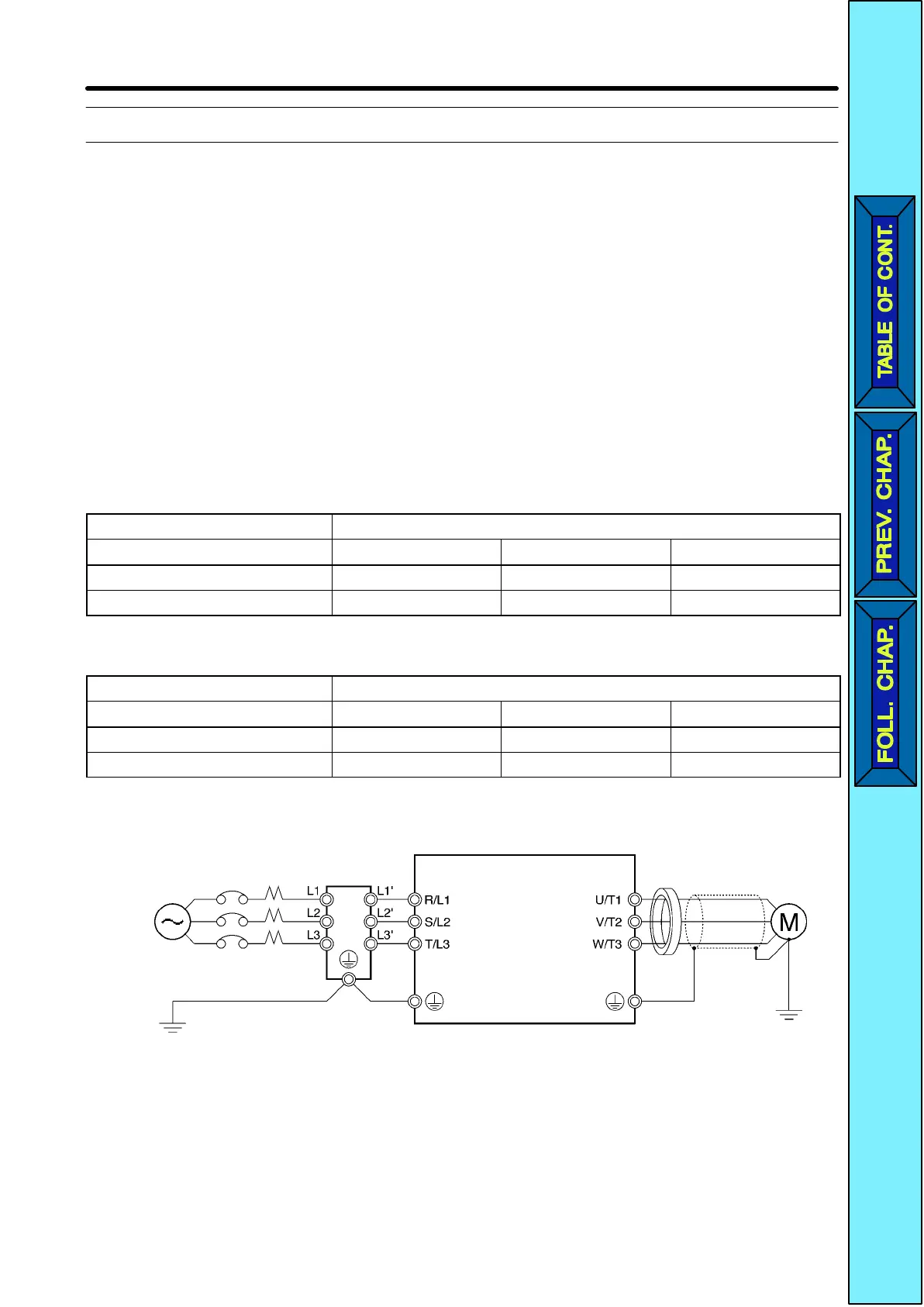

H Connection Example
Line breakers
Noise Filter
3-phase 200 VAC or
single-phase 200 VAC
Clamp core
Specifications Chapter 8

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
