Omron SYSDRIVE 3G3JV Series User Manual

2-15
D Selecting Frequency Reference Input Method
•By using SW8, frequency reference voltage or current input can be selected.
Parameter
settings are required together with the selection of the frequency reference
input method.
Frequency reference input
method
SW8 setting Frequency reference
selection (parameter n03)
Voltage input V (OFF) Set value 2
Current input I (ON) Set value 3 or 4

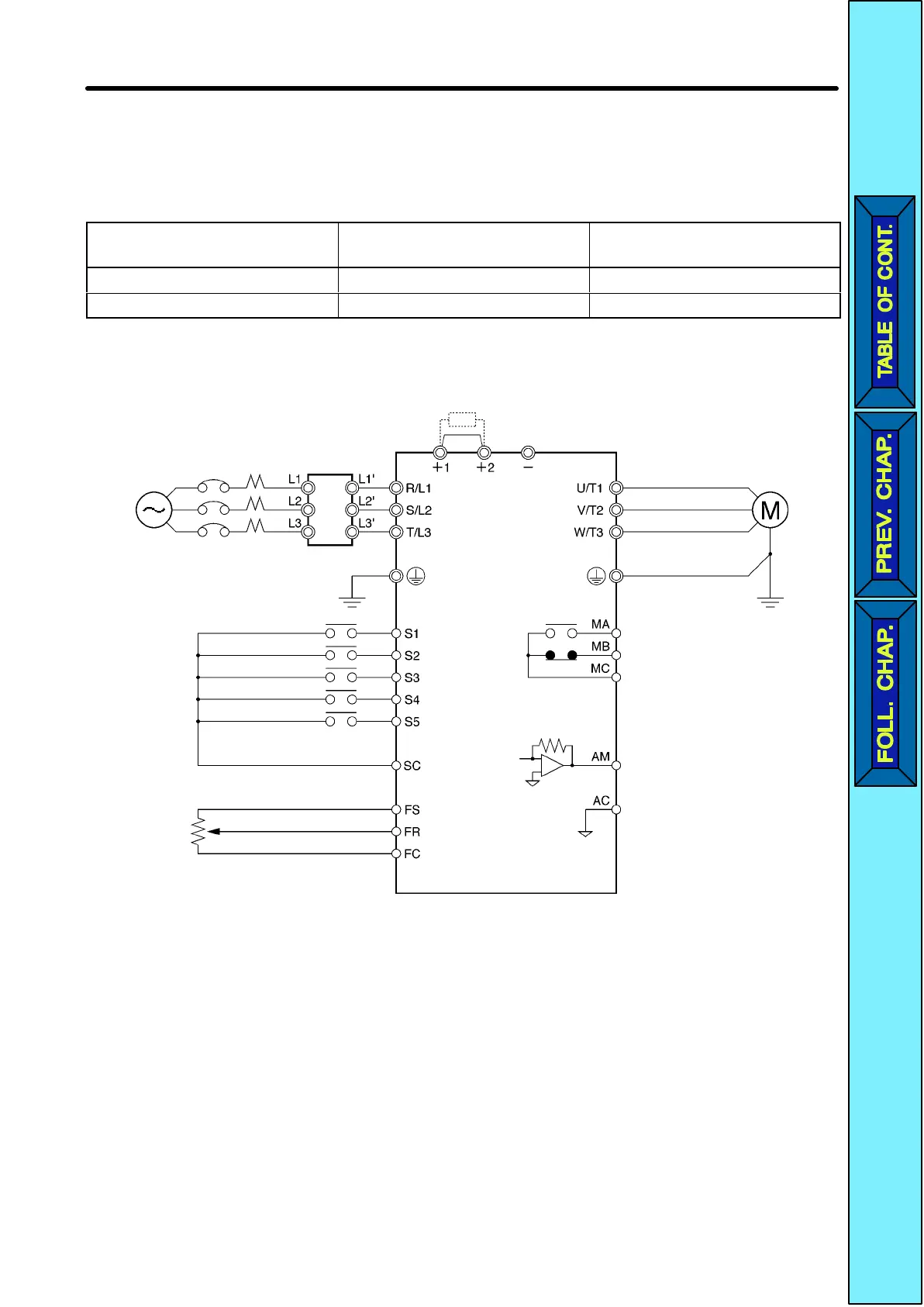

2-2-3 Standard Connections
DC reactor
(optional)
Noise Filter
3-phase 200 VAC
Single-phase 200 VAC
(see note 1)
Forward/Stop
Multi-function input 1 (S2)
Multi-function input 2 (S3)
Multi-function input 3 (S4)
Multi-function input 4 (S5)
Sequence input common
Frequency reference power
supply 20 mA at +12 V
FREQ
adjuster
Frequency reference input
Frequency reference common
Multi-function contact output
NO
NC
Common
Analog monitor output
Analog monitor output common
Note 1. Connect single-phase 200 V AC to terminals R/L1 and S/L2 of the 3G3JV -ABj.
Note 2. The
braking resistor cannot be connected because no braking transistor is in -
corporated.
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
