Omron SYSDRIVE 3G3JV Series User Manual

10-2
H Using Inverter for Existing Standard Motor
When a standard motor is operated with the Inverter , a power loss is lightly higher than
when operated with a commercial power supply.
In
addition, cooling ef fects also decline the low-speed range, resulting in an increase in
the motor temperature. Therefore, motor torque should be reduced in the low speed
range.

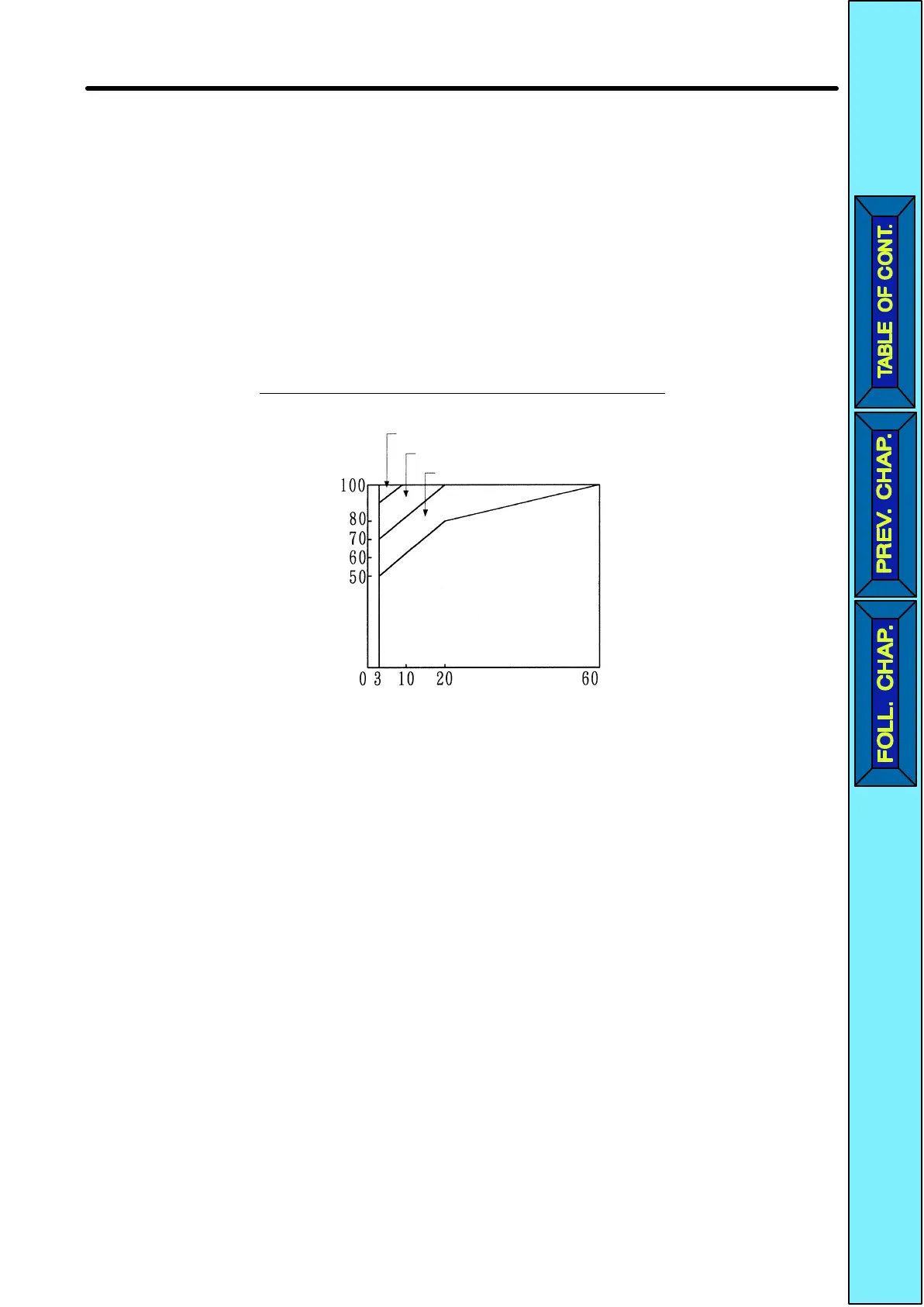

The following figure shows allowable load characteristics of a standard motor.
If
100% torque is continuously required in the low-speed range, use a special motor for
use with Inverters.
Allowable Load Characteristics of Standard Motor
25% ED (or 15 min)
40% ED (or 20 min)
60% ED (or 40 min)
Torque (%)
Continuous
Frequency (Hz)
D High-speed Operation
When using the motor at high-speed (60 Hz or more), problems may arise in dynamic
balance and bearing durability.
D Torque Characteristics
The motor may require more acceleration torque when the motor is operated with the
Inverter than when operated with a commercial power supply. Check the load torque
characteristics of the machine to be used with the motor to set a proper V/f pattern.
Using Inverter for Motor Chapter 10

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
