D Installing a Noise Filter on the Power Supply Side
Install a Noise Filter to eliminate noise transmitted between the power line and the In -
verter.

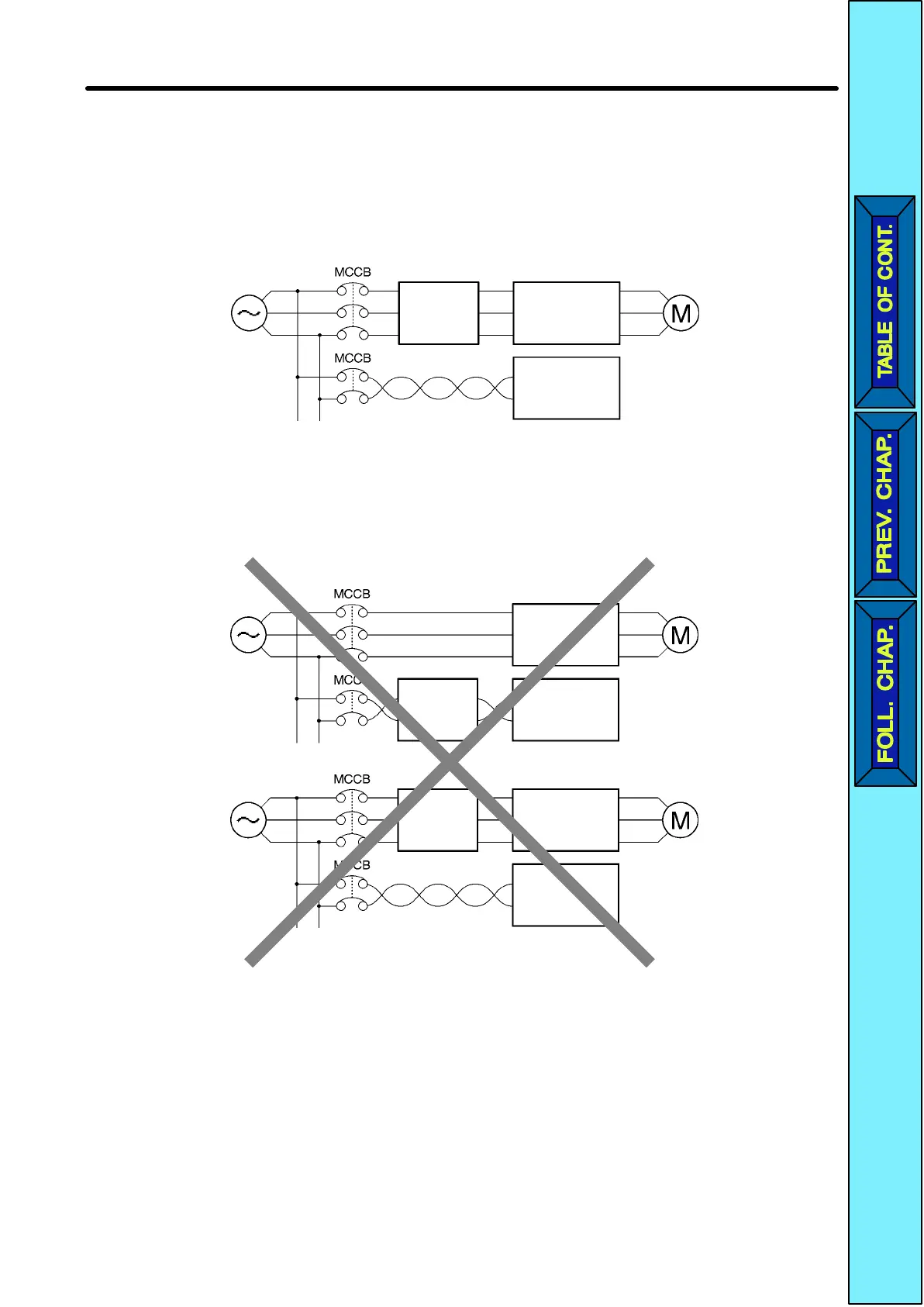

Wiring Example 1
Power
supply
3G3IV-PHF
Noise
Filter
3G3JV
SYSDRIVE
Programmable
Controller
Other controllers
Note Use a special-purpose Noise Filter for the SYSDRIVE 3G3JV.
Wiring Example 2
Power
supply
General-
purpose
noise
filter
3G3JV
SYSDRIVE
Programmable
Controller
Other controllers
Power
supply
General-
purpose
noise
filter
SYSDRIVE
Programmable
Controller
Other controllers
3G3JV
Note Do not use any general-purpose noise filter . No general-purpose noise filter can
effectively suppress noise generated from the Inverter.
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
