2-34

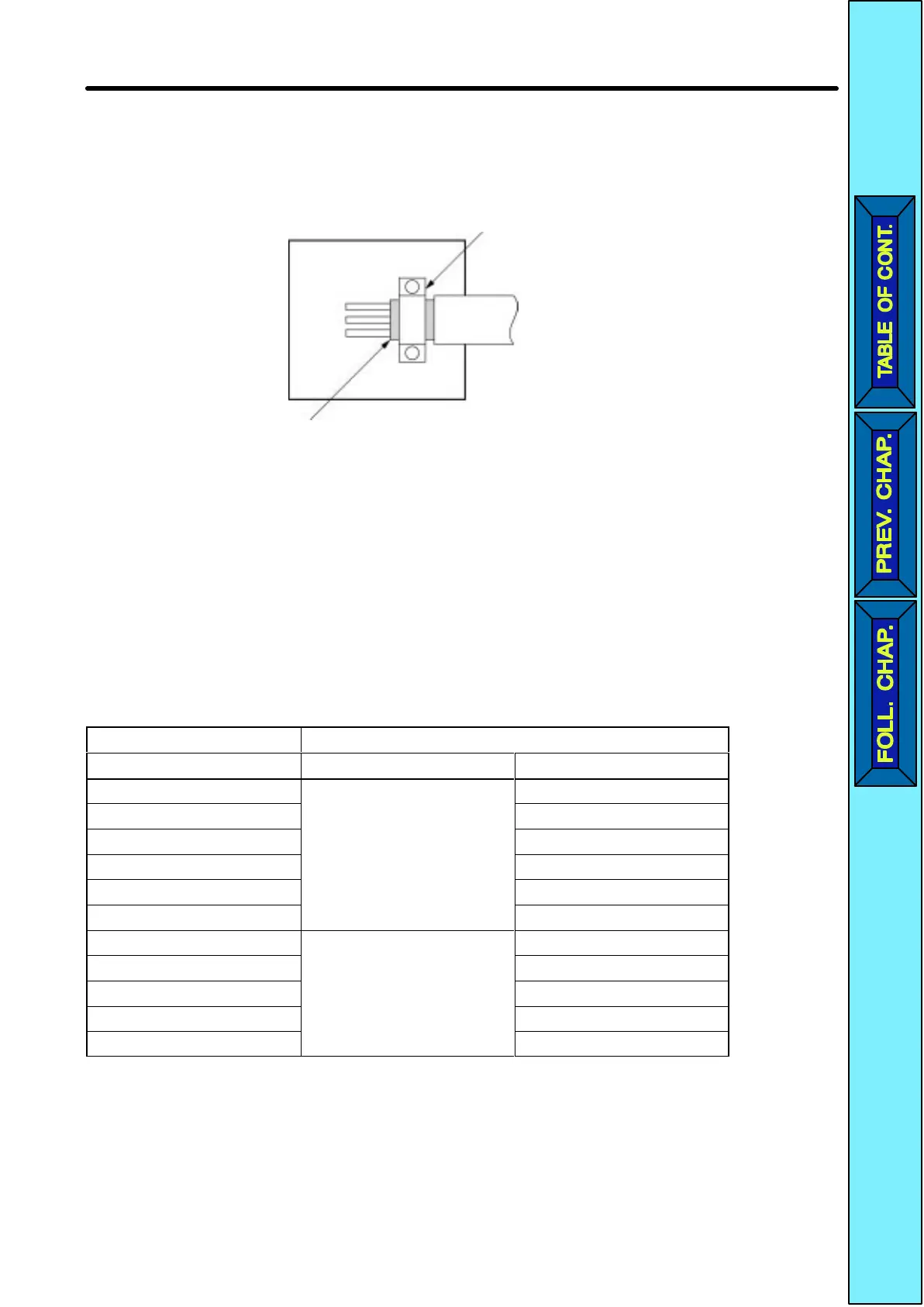

D Grounding the Shield
In
order to
ground the shield securely
, it is recommended that a cable clamp be directly
connected to the ground plate as shown below.
Ground plate
Cable clamp
Cable
Shield
H LVD Conformance
Always connect the Inverter and power supply via a molded case circuit breaker
(MCCB)
suitable to the Inverter for protecting the Inverter from damage that may result
from short-circuiting.
Use one MCCB per Inverter.
Select a suitable MCCB from the following table.
200-V Models
Inverter MCCB (Mitsubishi Electric)
Model 3G3JV- Type Rated current (A)
A2001
NF30
5
A2002
5
A2004 5
A2007 10
A2015 20
A2022 20
AB001
NF30
5
AB002
5
AB004 10
AB007 20
AB015 20
The frequency reference power supply (FS) of the Inverter is of basic insulation
construction.
When connecting the Inverter to peripheral devices, be sure to increase
the degree of insulation.
