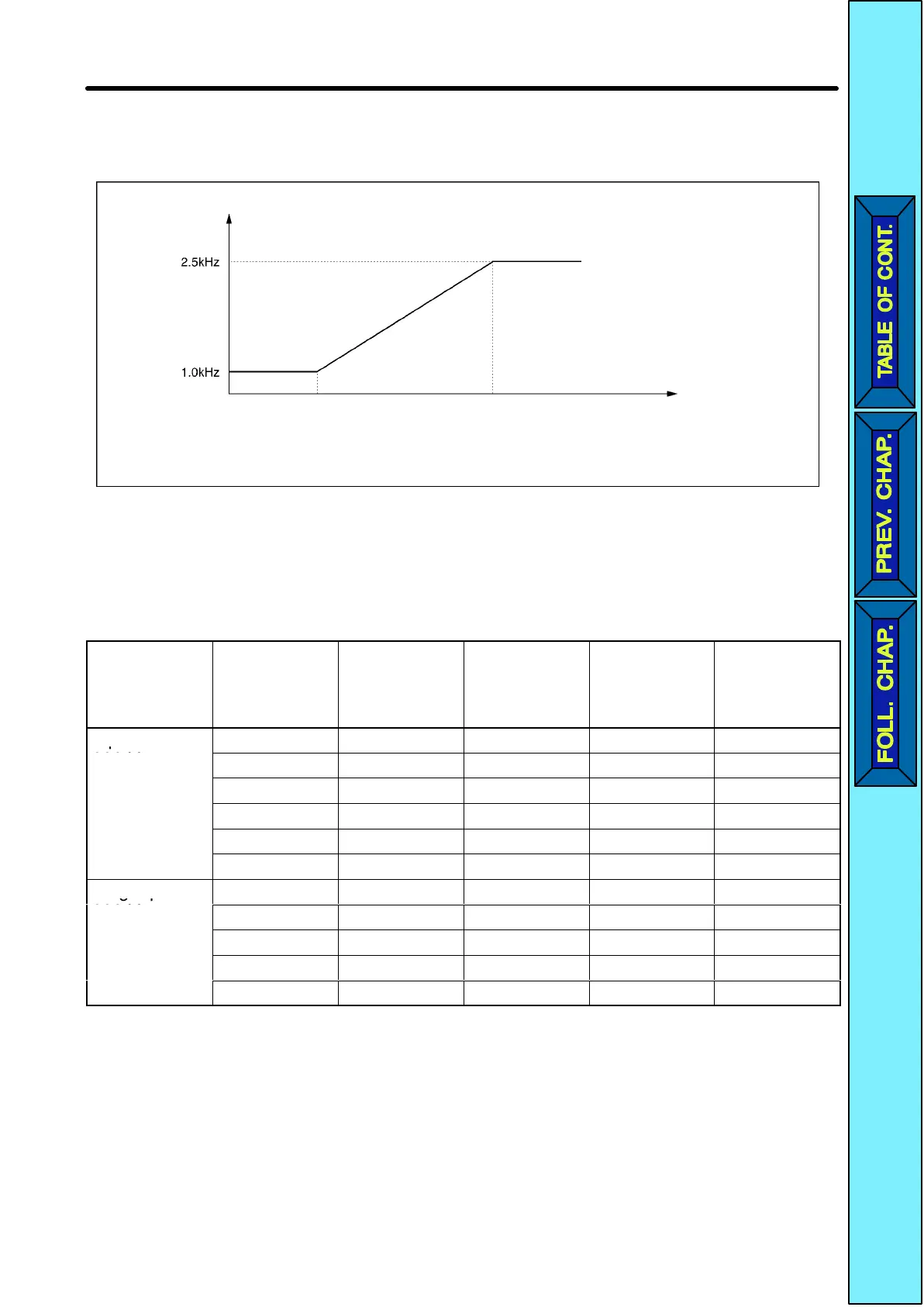

6-3
Note The
carrier frequency changes as shown in the following graph with 7 through 9
set in n46.
Carrier Frequency (n46: 7 through 9)
Carrier
Frequency
83.3 Hz (Set value: 7)
41.6 Hz (Set value: 8)
27.7 Hz (Set value: 9)
208.3 Hz (Set value: 7)
104.1 Hz (Set value: 8)
69.4 Hz (Set value: 9)
Output frequency
The Inverter cannot maintain rated output current with the carrier frequency set to a
value higher than the default one.
The following table shows the default value and a decrease in the output current of
each Inverter model.
Be sure to use the Inverter so that there will be no decrease in rated output current.
Voltage Model
3G3JV-
Default
setting
Rated
output
current (A)
Set to 3
Reduced
rated output
current (A)
Set to 4
Reduced
rated output
current (A)
3-phase
200 V
A2001 4 (10 kHz) 0.8
3 p ase
200 V
A2002 4 (10 kHz) 1.6
A2004 4 (10 kHz) 3.0
A2007 4 (10 kHz) 5.0
A2015 3 (7.5 kHz) 8.0 7.0
A2022 3 (7.5 kHz) 11.0 10.0
Single-phase
200 V
AB001 4 (10 kHz) 0.8
S g e p ase
200 V
AB002 4 (10 kHz) 1.6
AB004 4 (10 kHz) 3.0
AB007 4 (10 kHz) 5.0
AB015 3 (7.5 kHz) 8.0 7.0
