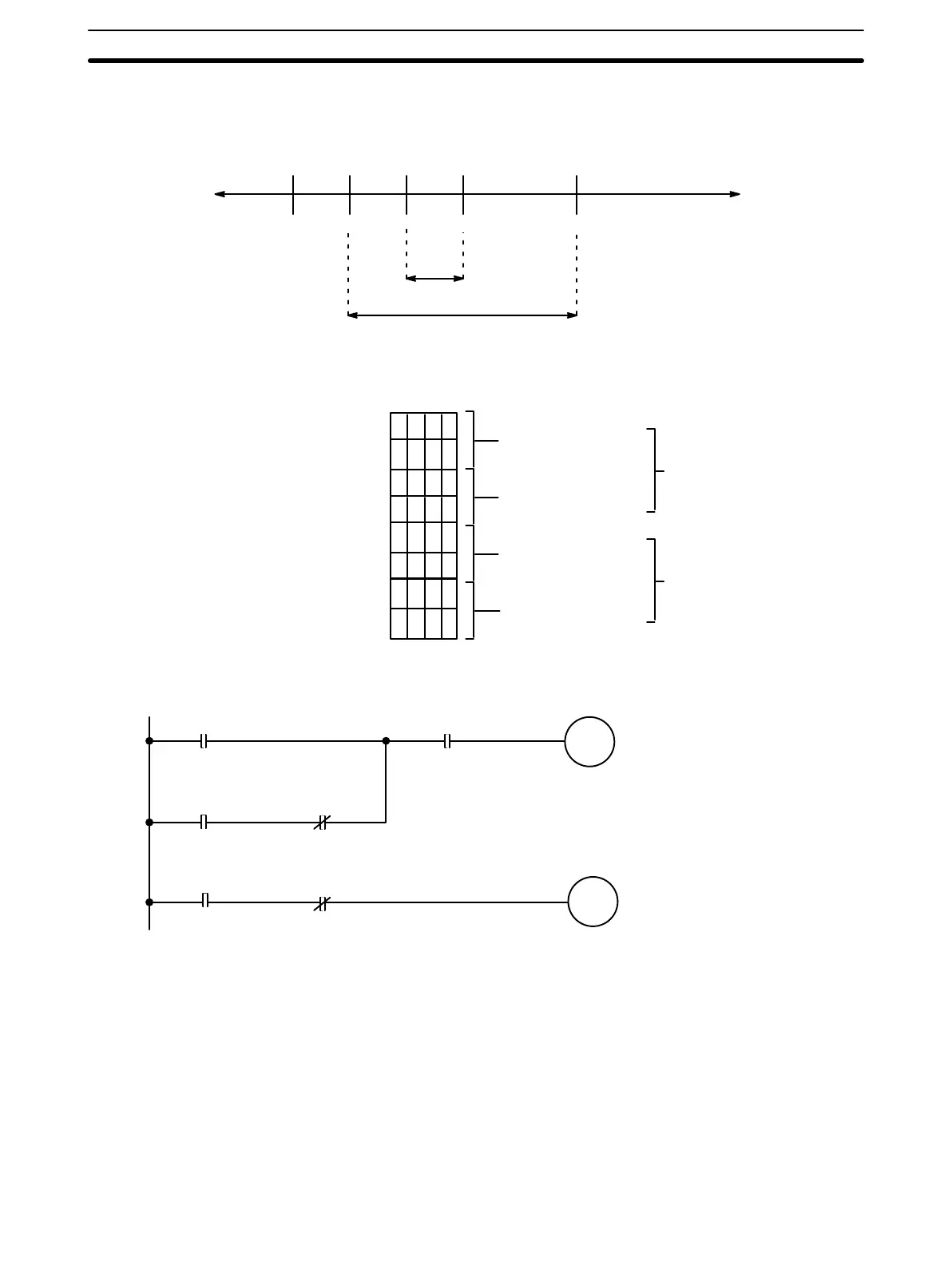

operations are possible in zone 1 except for the part of it occupied by zone 0.
In zone 0, CCW manual feeding is prohibited.
CCW
CW
0 200
100 5000300
Zone 0
Zone 1
DM Area Settings (Zone Data)
DM 1009 0 3 0 0
DM 1010 0 0 0 0
DM 1011 0 2 0 0
DM 1012 0 0 0 0
DM 1013 5 0 0 0
DM 1014 0 0 0 0
DM 1015 0 1 0 0
DM 1016 0 0 0 0
Zone 0 CW limit
Zone 0 CCW limit
Zone 1 CW limit
Zone 1 CCW limit
Zone 0
Zone 1
Program
CW JOG switch
JOG direction
CCW JOG switch
CCW JOG switch
10507
Zone 0 flag
10506
CW JOG switch
Zone 1 flag
10013
10012
Low-speed JOG
Using Zones to Control Jogging Section 5–8
