5–9 Setting Speeds

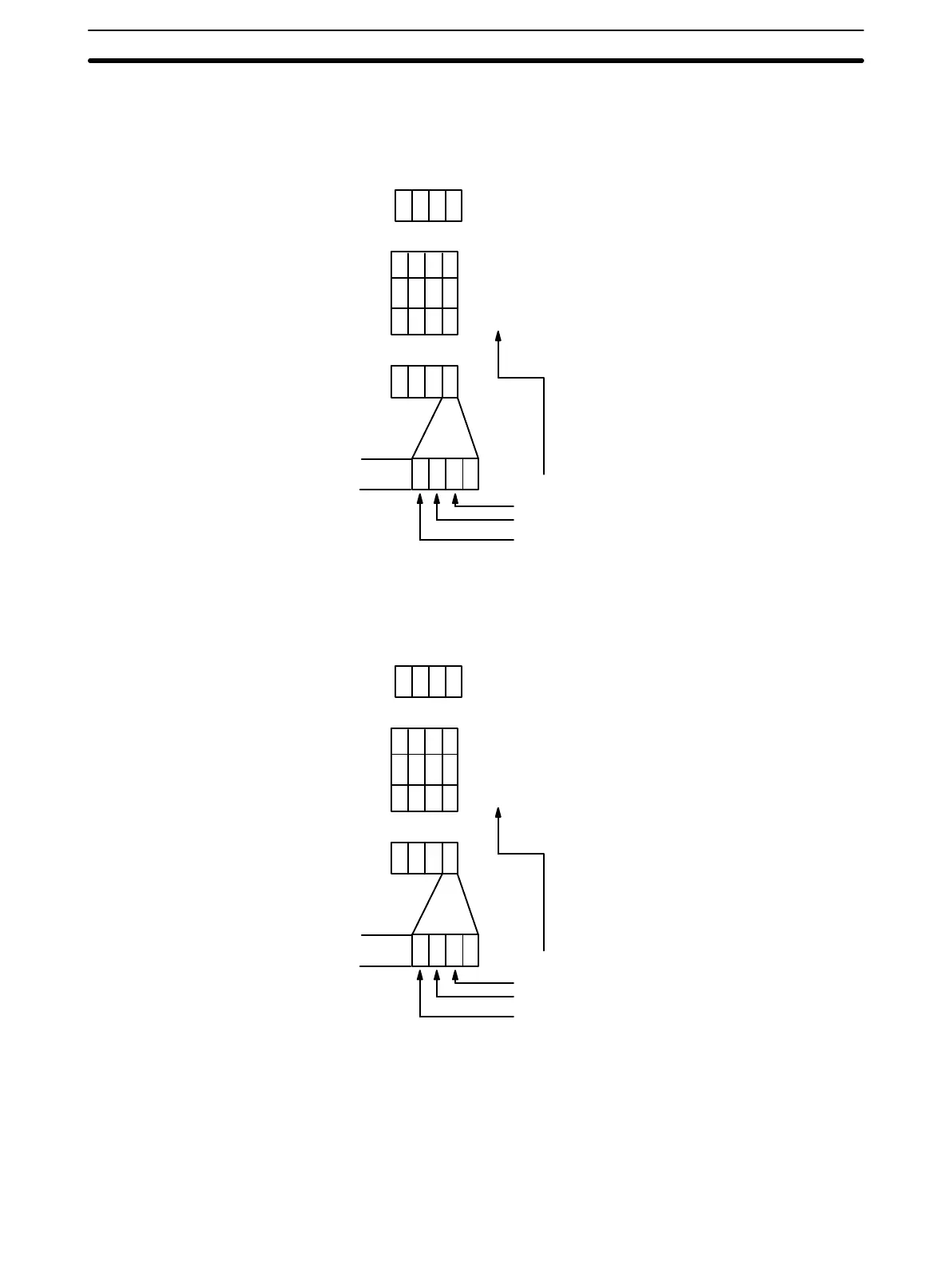

Multiplying the Speed Unit by 10
where
speed No. 1 x 10
speed No. 2 x 1
speed No. 3 x 10
DM 1003 X X 0 X
DM 1082 2 0 0 0
DM 1083 1 0 0 0
DM 1084 1 0 0 0
DM 1097 0 0 0 A
Multiplies speed unit by 10
x10 Speed No. 1 = 20000 pps
x1 Speed No. 2 = 1000 pps
x10 Speed No. 3 = 10000 pps
1 0 1 0
Speed unit
Multiplying the Speed Unit by 100
where
speed No. 1 x 100
speed No. 2 x 1
speed No. 3 x 100
DM 1003 X X 1 X
DM 1082 2 0 0 0
DM 1083 1 0 0 0
DM 1084 1 0 0 0
DM 1097 0 0 0 A
Multiplies speed unit by 100
x100 Speed No. 1= 200000 pps
x1 Speed No. 2 = 1000 pps
x100 Speed No. 3 = 100000 pps
1 0 1 0
Speed unit
5–10 Using a Multiple Bank Program
In this example, it is assumed that the data from the example Section 5–4
has already been input to Unit #0.
Using a Multiple Bank Program Section 5–10
