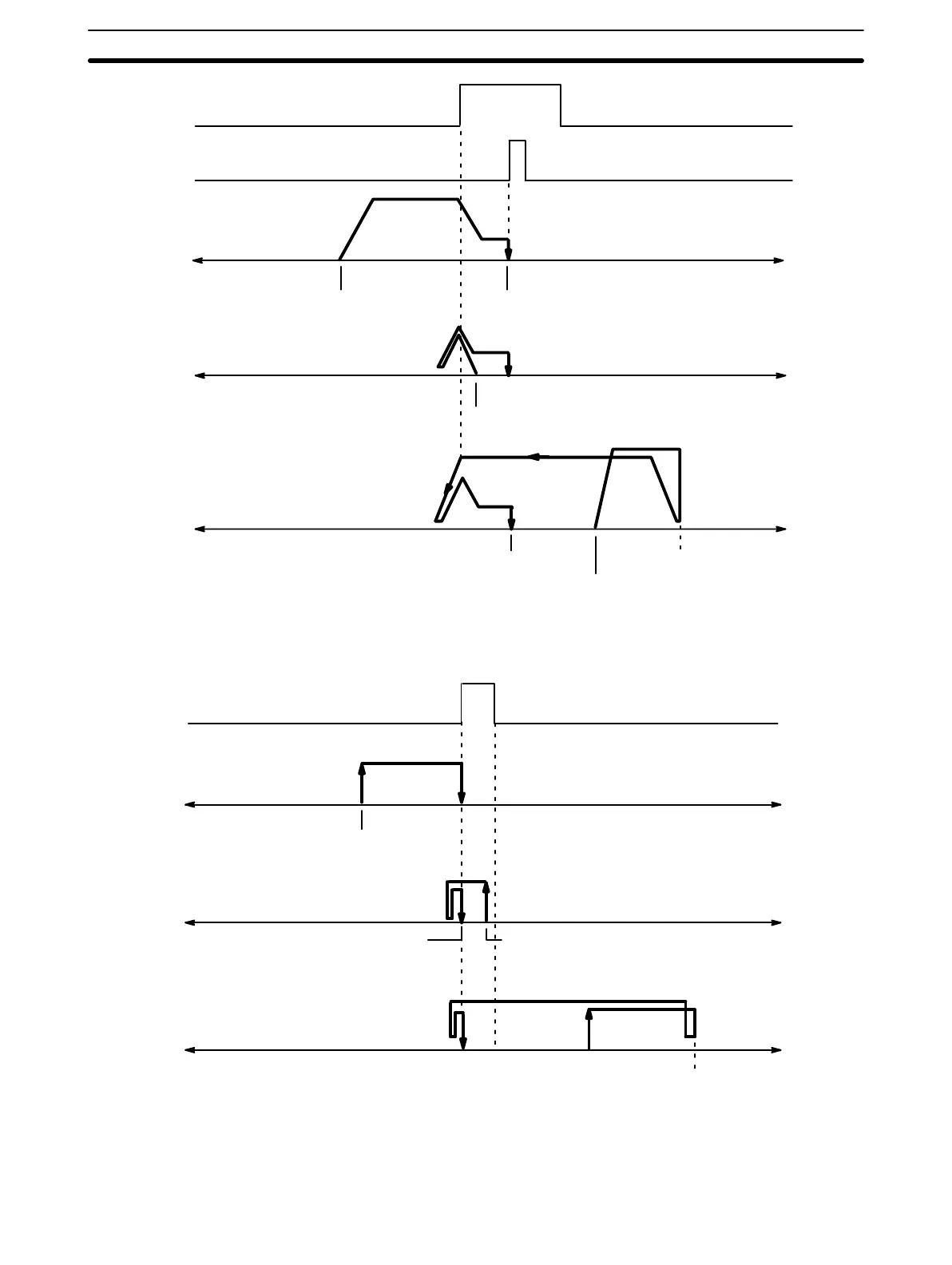

Origin
(When searching for the
origin in the CCW direction)
CCW
CCW
CCW
Origin (Stop)
CW limit
Positioning axis
CW
CW
ORIGIN SEARCH (Start)
Origin proximity
ORIGIN SEARCH (Start)
Origin (Stop)
ORIGIN SEARCH (Start)
Origin (Stop)
When the pin is set to OFF, ORIGIN SEARCH is executed completely at
proximity speed (low speed).
Origin
(When searching for the
origin in the CW direction)
CCW
CCW
CCW
CW limit
Positioning axis
CW
CW
ORIGIN SEARCH (Start)
Origin (Stop)
ORIGIN SEARCH (Start)
Origin (Stop)
ORIGIN SEARCH (Start)Origin (Stop)
CW
These pins determine whether the origin proximity and origin signals are in-
put from NO or NC contacts. When the pin is set to ON, the corresponding
signal is input from an NO contact; when set to OFF, from an NC contact.
Pin 4: Origin Proximity
Signal Type and
Pin 5: Origin Signal Type
Switch Settings Section 2–1
