28

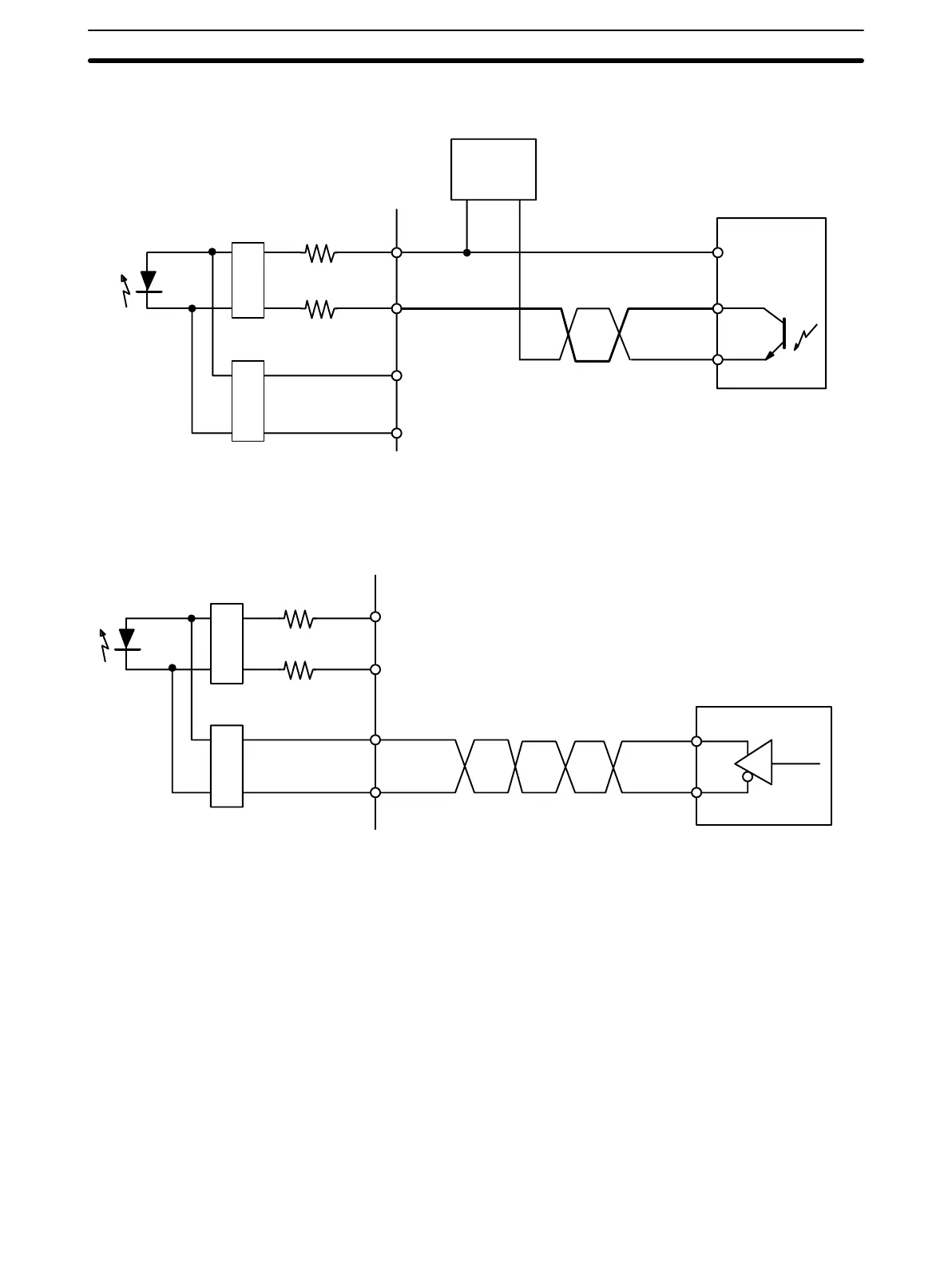

Origin Input (A11, B11)
V
1 kΩ
1 kΩ
A11
B11
A8
B8
Power
supply
(24 VDC)
+
–
Leave these pins open
OMRON
E3S-X3 CE4
(NPN output type)
Photoelectric Switch
Signal
0 V
Pins A11 and B11 are internally rectified so that they can be used bi-direc-
tionally.
Origin Line Driver Input (A8, B8)
OMRON R88D-EP
Servomotor Driver
(Marketed in Japan)
1 kΩ
1 kΩ
A11
B11
A8
B8
Leave these pins open
22
Z
33
–Z
Use a separate
power source for
the Z-phase signal
Wiring Section 2–2
