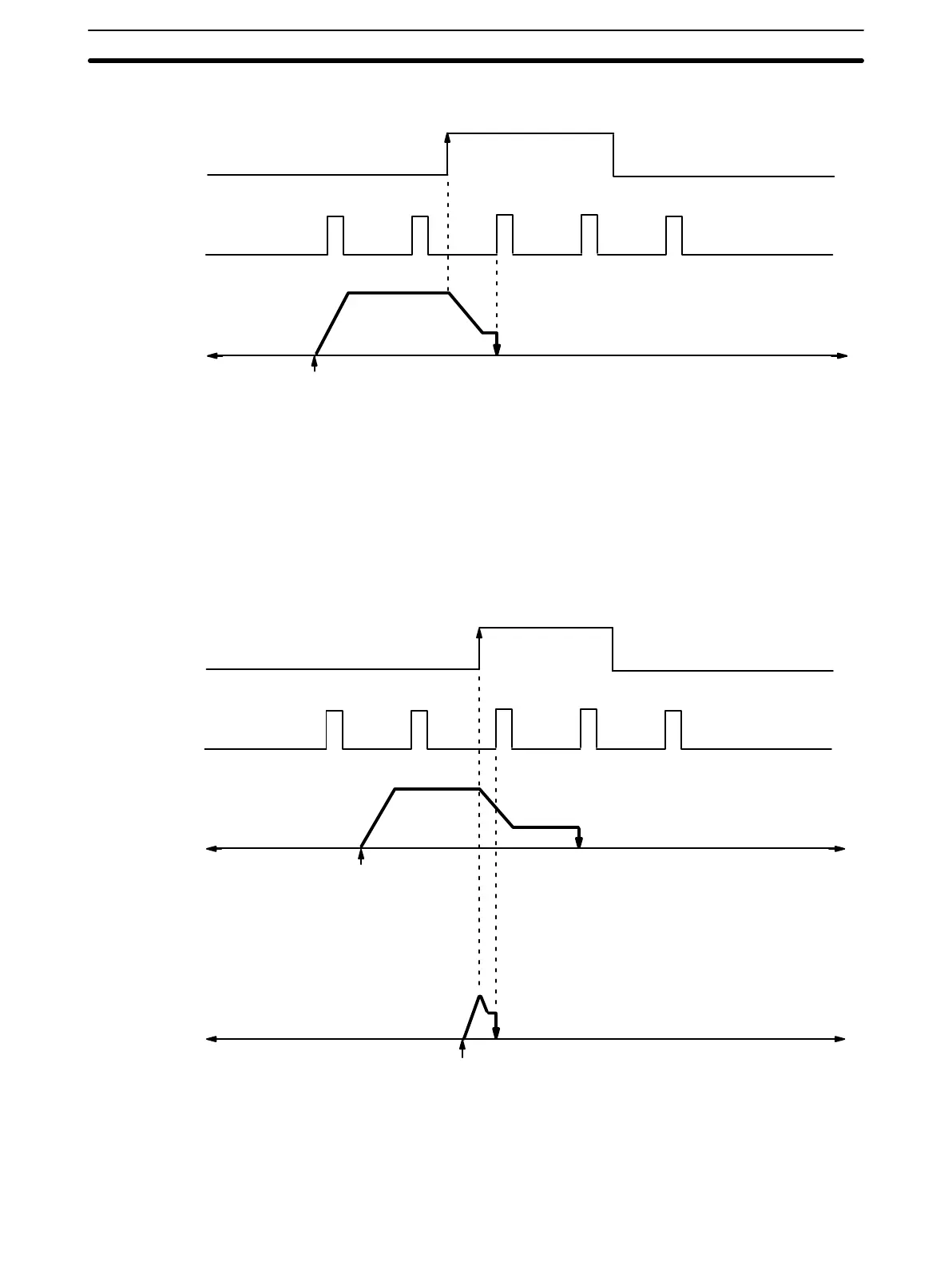

Origin proximity
signal
Origin signal
Pulse output
1
0
1
0
CCW
(The origin is sought after deceleration has ended.)
Positioning axis
CW
ORIGIN SEARCH (Start)
Origin (Stop)
Note that if the origin signal is been input during deceleration, the stop posi-
tion differs depending on the length of the deceleration period.
Origin proximity
signal
Origin signal
Pulse output
1
0
1
0
CCW
CCW
positioning axis
CW
CW
In this example diagram, deceleration from ORIGIN SEARCH high speed to
proximity speed (low speed) is completed between the time of the origin
proximity signal and the first origin signal.
ORIGIN SEARCH Section 4–3
