12 Pulse Outputs
12-48
CP2E CPU Unit Software User’s Manual(W614)

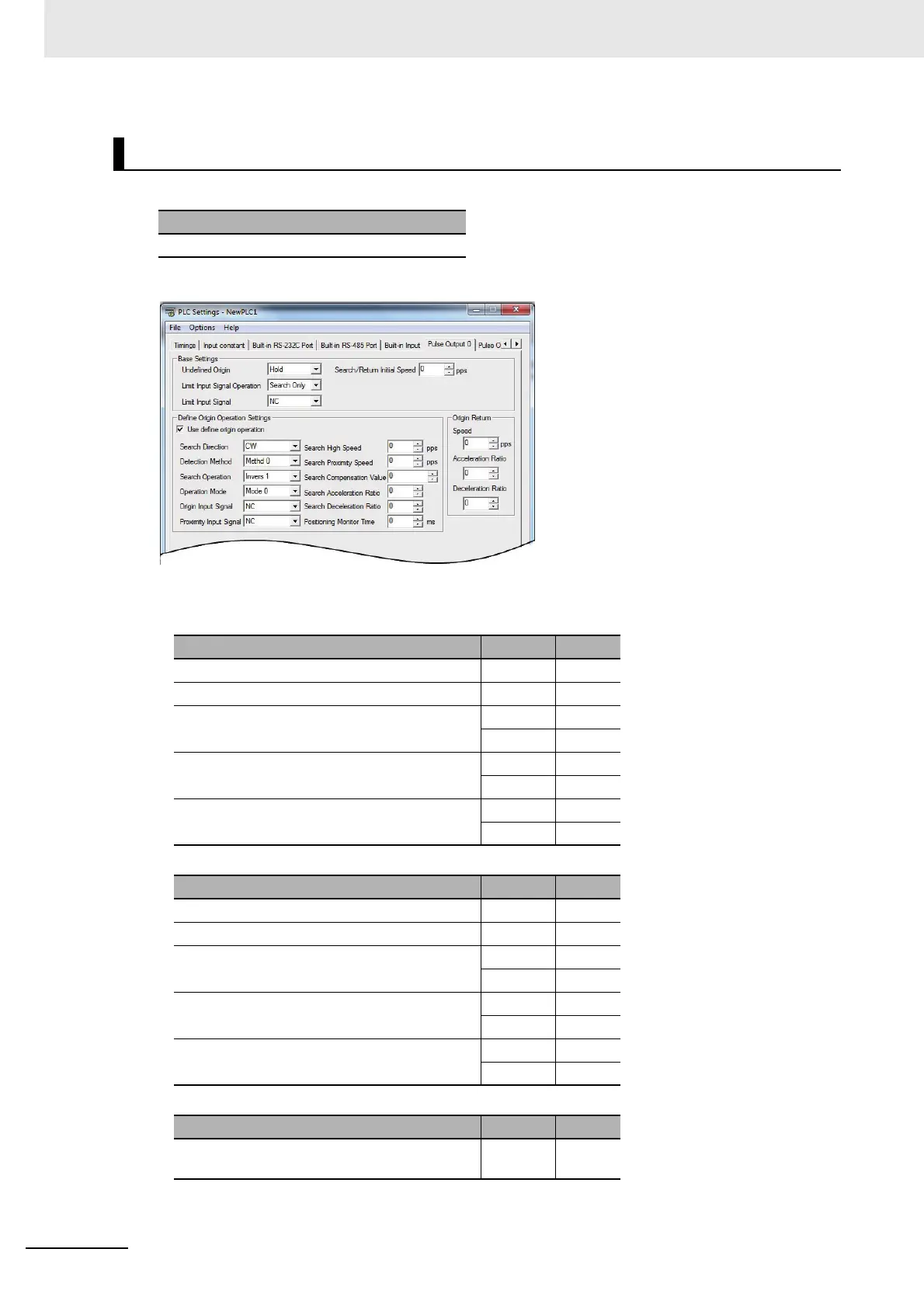

z PLC Setup
Note The Use define origin operation setting is read from the PLC Setup when the power supply is turned ON.
z DM Area Settings
• Settings for PLS2 for Fixed-distance Positioning (D0 to D7)
• Settings for PLS2 to Return to Start (D10 to D17)
• Number of Repeats of Fixed-distance Positioning Operation (D20)
Preparations
Setting
Use define origin operation for pulse output 0.
Setting details Address Data
Acceleration rate: 1,000 Hz/4 ms D0 #03E8
Deceleration rate: 1,000 Hz/4 ms D1 #03E8
Target frequency: 50,000 Hz D2 #C350
D3 #0000
Number of output pulses: 10,000 pulses D4 #2710
D5 #0000
Starting frequency: 0 Hz D6 #0000
D7 #0000
Setting details Address Data
Acceleration rate: 300 Hz/4 ms D10 #012C
Deceleration rate: 200 Hz/4 ms D11 #00C8
Target frequency: 50,000 Hz D12 #C350
D13 #0000
Number of output pulses: 0 pulse D14 #0000
D15 #0000
Starting frequency: 100 Hz D16 #0064
D17 #0000
Setting details Address Data
Number of repeats of fixed-distance positioning
operation (number of PCBs in stocker)
D20 #000F
