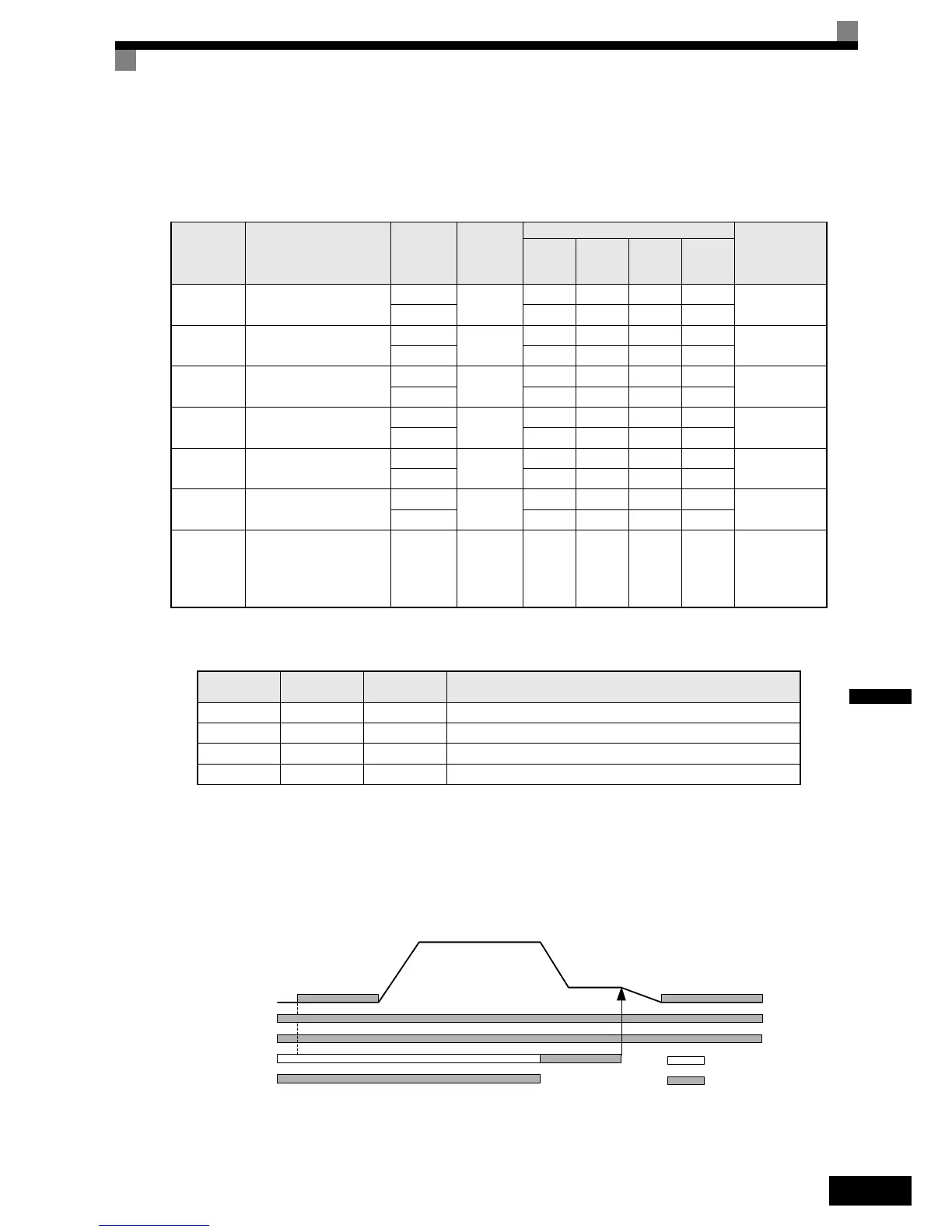

Separate Speed Selection Inputs, High Speed Has Priority (d1-18=1)
If d1-18 is set to 1, 6 different speeds can be set and selected using four digital inputs.
Related Parameters
Digital Input Factory Settings
Higher Speed has Priority and a Leveling Speed Input is Selected (H1-=83)
If d1-18 is set to 1 and one multi-function digital input is set to leveling speed selection (H1-=83), the
inverter decelerates to the leveling speed (d1-17) when the selected speed signal is removed. Inspection Speed
can not be selected as travel speed. The higher speed has priority over the leveling speed, i.e. as long as a
higher speed is selected, the leveling signal is disregarded (see the fig. below)
The inverter stops when the leveling signal or the Up/Down signal is removed.
Parameter
No.
Name
Factory
Setting
Change
during
Operation
Control Methods
Digital Input
Setting (H1-01
to H1-05)
V/f
Open
Loop
Vector
Closed
Loop
Vector
Closed
Loop Vec-
tor (PM)
d1-09 Nominal Speed
50.00 Hz
Yes
QQQ -
80
100.00% - - - Q
d1-10 Intermediate Speed 1
0.00 Hz
Yes
AAA -
81
0.00% - - - A
d1-11 Intermediate Speed 2
0.00 Hz
Yes
AAA -
-
*1
*1. This speed can be selected by a combination of two inputs
0.00% - - - A
d1-12 Intermediate Speed 3
0.00 Hz
Yes
AAA -
-
*1
0.00% - - - A
d1-13 Releveling Speed
0.00 Hz
Yes
AAA -
82
0.00% - - - A
d1-17 Leveling Speed
4.00 Hz
Yes
QQQ -
83
8.00% - - - Q
S3-09
Frequency reference loss
detection when d1-18 = 1 and
H1-K83.
0:Disabled
1:Enabled
1NoAAAA -
Terminal
Parameter
Number
Set Value Details
S3 H1-01 80 Nominal speed selection (d1-09)
S4 H1-02 84 Inspection speed selection (d1-14)
S5 H1-03 81 Intermediate speed selection (d1-10)
S6 H1-04 83 Leveling speed selection (d1-17)
Up/Donw
Leveling speed
Selected speed
Speed
DC Injection/
zero servo
DC Injection/
zero servo
Input is set
No effect
Hardware BB
