Onkyo A-9030 Owner's Manual

17
En

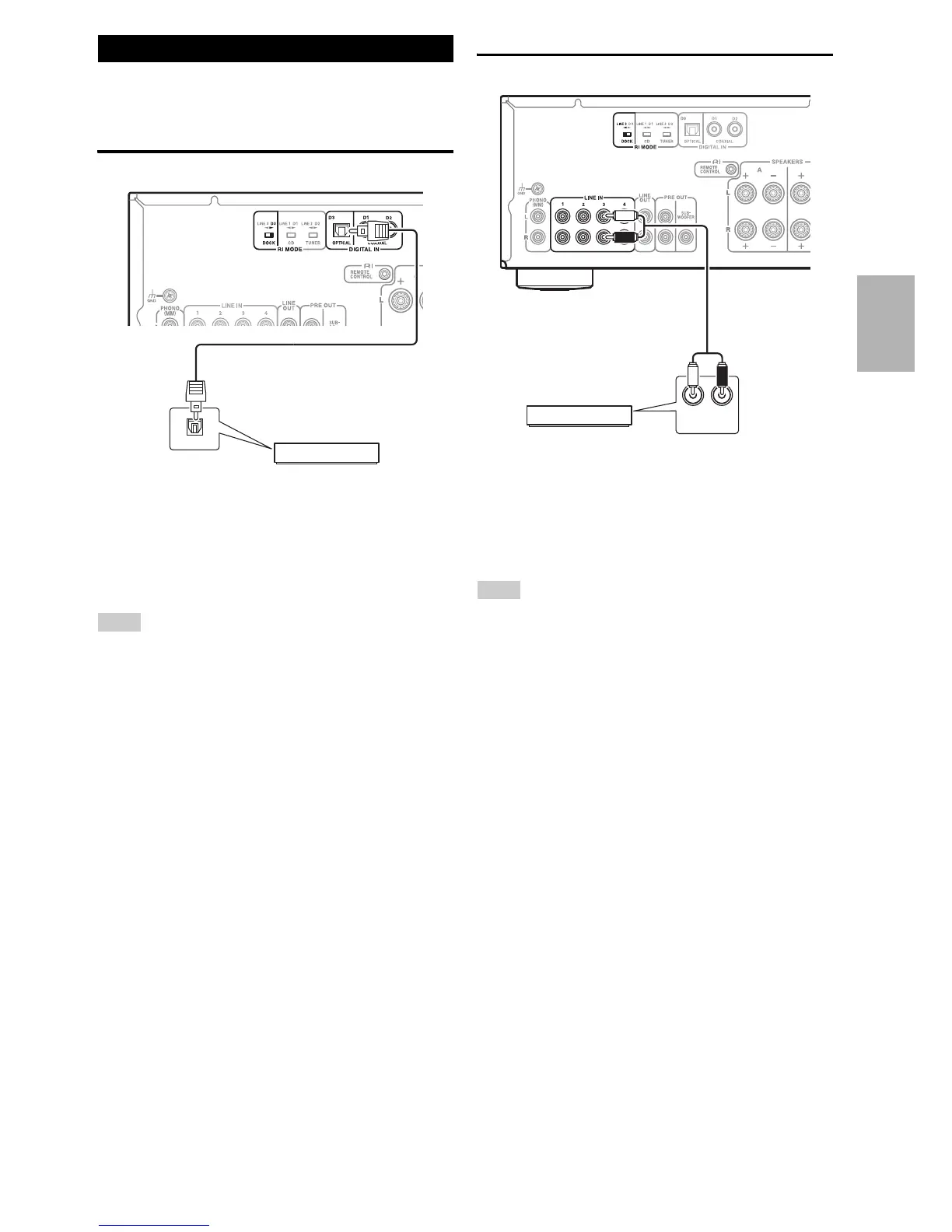

This is an example of connection using the Onkyo u
Dock.
Digital Connection (A-9050 only)
Tip
• An Onkyo Dock can be connected to the COAXIAL D1 or D2
jack or the OPTICAL D3 jack. However, when using the u
interlock function, be sure to connect the Onkyo Dock to the
OPTICAL D3 jack.
Analog Connection
Tip
• An Onkyo Dock can be connected to the LINE IN 1/2/3/4 jack.
However, when using the u interlock function, be sure to
connect the Onkyo Dock to the LINE IN 3 jack.
Connecting an Onkyo Dock
1
Connect the optical digital cable to the OPTICAL
D3 jack.
2
Set the RI MODE switch to DOCK D3.
OPTICAL
Integrated Amplifier
Digital Media Transport, u Dock
1
Connect the audio pin cable to the LINE IN 3 jack.
2
Set the RI MODE switch to DOCK LINE 3.
(A-9050 only)
R
AUDIO OUT
----
L
Integrated Amplifier
Digital Media Transport, u Dock

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
