9
En
a GND screw
Connects the turntable’s ground wire.
b u MODE selector (A-9050 only)
c DIGITAL IN OPTICAL D3 jack (A-9050 only)
Connects components such as CD players with optical
digital audio output.
d DIGITAL IN COAXIAL D1/D2 jacks (A-9050 only)
Connect components such as CD players with coaxial
digital audio output.
e PHONO (MM) L/R jacks
Connect a turntable with analog audio output.
f LINE IN 1/2/3/4 L/R jacks
Connect playback devices with analog audio output.
g LINE OUT L/R jacks
Connect components such as analog line-level
sources. The input signals are output with no level
adjustment.
h PRE OUT L/R jacks (A-9050 only)
Connect a power amplifier when the integrated
amplifier is used as a preamplifier (Pre mode).
i PREOUT SUBWOOFER jack
j u REMOTE CONTROL jack
Connect Onkyo components such as Onkyo Docks,
CD Players, or Tuner with u (Remote Interactive)
jacks.
k SPEAKERS A terminals
Connect Speakers A.
l SPEAKERS B terminals
Connect Speakers B.
m AUTO STANDBY selector
Enables or disables the Auto standby function.
n SPEAKER IMPEDANCE selector (A-9050 only)
Switches the speaker impedance to 4 Ω or 8 Ω.
o AC INLET (A-9050 only)
Connects the supplied power cord. The other end of
the power cord should be connected to a suitable wall
outlet.
p POWER CORD (A-9030 only)

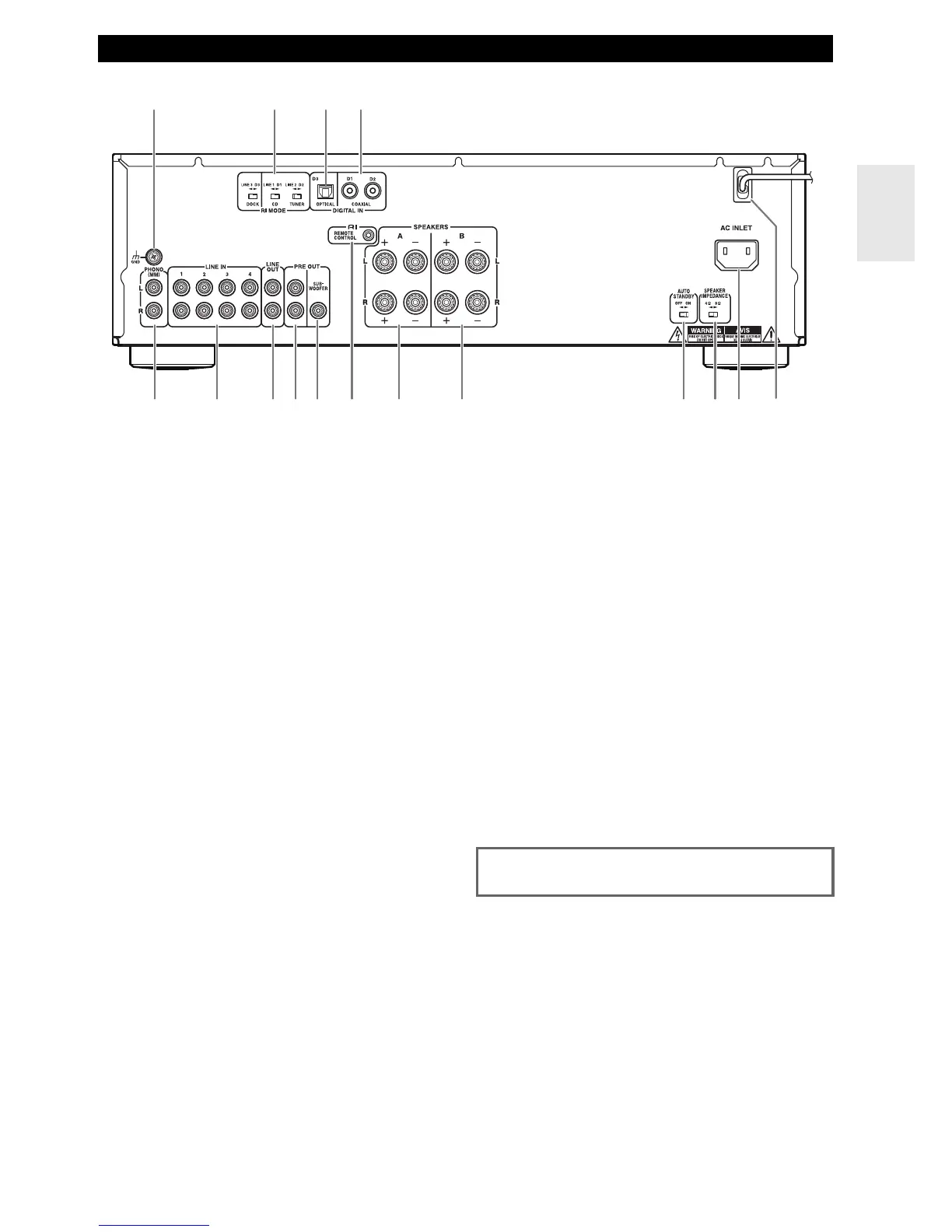

Rear Panel
34
5
2
876j
op
kmln9
a
See “Connections” for connection information
(➔ page 12).
