Getting to Know the Integrated Amplifier
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (➔ page 21)
Sets the integrated amplifier to On or Standby.
b Remote control sensor (➔ page 7)
Receives control signals from the remote controller.
c Volume controller (➔ page 22)
Adjusts the volume.
d Input source LEDs (➔ page 23)
Lights according to the selected input source.
(*A-9050 only)
e INPUT selector (➔ page 23)
Selects the input sources in sequence.
f SPEAKERS button (➔ page 22)
Selects Speakers A, Speakers B, or both.
g A/B LEDs (➔ page 22)
Lights according to the selected speaker output.
h BASS –/+ controller (➔ page 24)
Adjusts the level of bass sounds.
i TREBLE –/+ controller (➔ page 24)
Adjusts the level of treble sounds.
j BALANCE L/R controller (➔ page 24)
Adjusts the balance of left and right channels.
k DIRECT LED (➔ page 23)
Lights when the integrated amplifier is in Direct
mode.
l DIRECT button (➔ page 23)
Enables or disables the Direct function.
m PHASE MATCHING BASS LED (➔ page 23)
Lights when the integrated amplifier is in Phase
matching bass mode.
n PHASE MATCHING BASS button (➔ page 23)
Enables or disables the Phase matching bass function.
o LINE5 (AUX) jack
Connect playback devices with analog audio output.
p PHONES jack (➔ page 24)
Connects headphones with a standard plug.

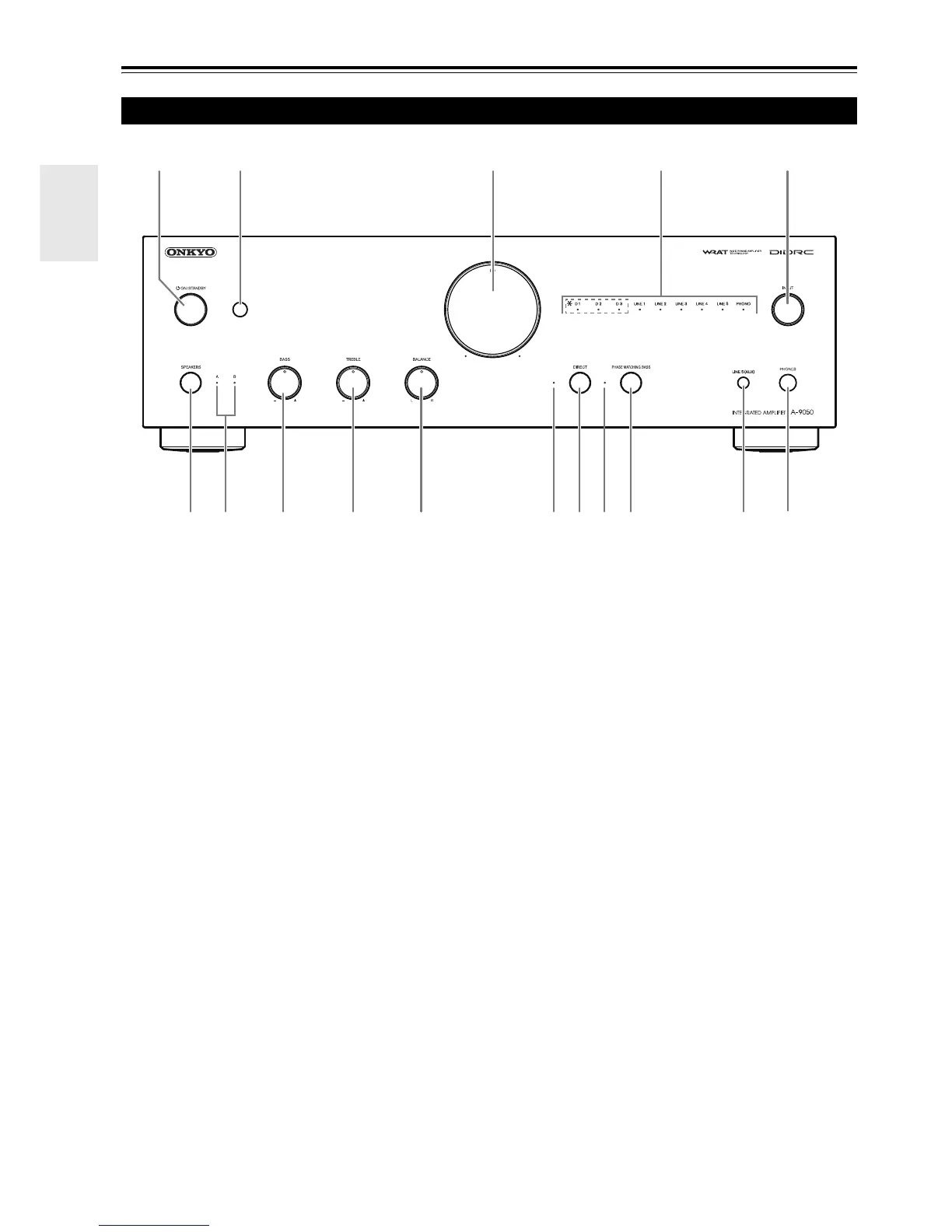

Front Panel
a 3 45
87
2
6j
kmlonp9
