The PHONO input jacks are for use with moving-magnet
(MM) type cartridges.
Use an analog audio cable to connect the PHONO L/R
jacks to the audio output jacks on the turntable, as shown.
If your amplifier has shorting pin plugs, remove the
shorting pin plugs before connecting your turntable.
Tip
• If the turntable has a ground wire, connect it to GND terminal.
With some turntables, connecting the ground wire may cause
hum, in which case it should be disconnected.
• If the turntable has a moving-coil (MC) type cartridge, you’ll
need a commercially available MC phono preamp. In this case,
connect the turntable to the phono preamp’s input, and connect
the phono preamp’s output to the PHONO L/R jacks.
Tip
• Connect your cassette tape deck to either of the following jacks:
LINE IN 1/2/3/4.
Note
• Volume adjustments and use of the muting function are not
reflected in the signal output from LINE OUT.
• Manual tone adjustments using the BASS –/+ controller,
TREBLE –/+ controller, BALANCE L/R controller, direct
function, and phase matching bass function are not reflected in
the signal output from LINE OUT.
• See the manual of the recording component for instructions on
correct use.

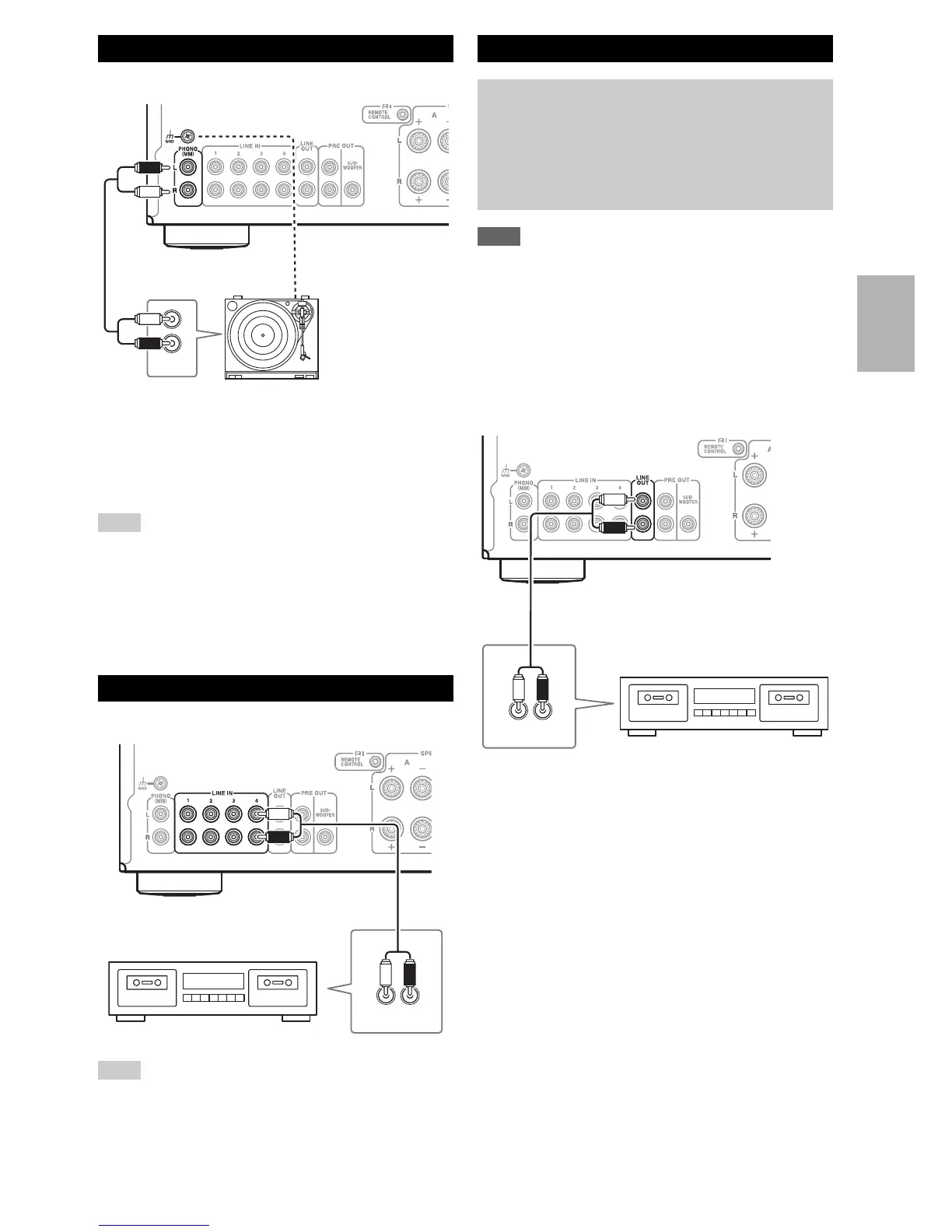

Connecting a Turntable
Connecting a Cassette Tape Deck
L
R
AUDIO
OUTPUT
Ground wire
Integrated Amplifier
AUDIO
OUT
LR
Integrated Amplifier
Cassette tape deck
Connecting a Recording Component
Important:
• Unless you have the full consent of the copyright holder,
copyright laws prohibit using your recordings for anything
other than personal enjoyment!
• Do not change the integrated amplifier’s input while
recording. Doing so will cause the audio from the selected
component to be recorded.
AUDIO
IN
LR
Integrated Amplifier
Cassette tape deck

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
