Onkyo A-9030 Owner's Manual

20
En
A subwoofer with a built-in power amplifier can be
connected to be used.
Connect LINE INPUT on the subwoofer with a built-in
power amplifier to PRE OUT: SUBWOOFER terminal on
the integrated amplifier.
If your subwoofer does not have a built-in amplifier,
connect the input jack of your amplifier to the pre out jack
of the subwoofer.
For details, refer to the manual supplied with your
subwoofer.
The integrated amplifier can be used as a preamplifier (Pre
mode). This is an example of connection using the power
amplifier. (A-9050 only)

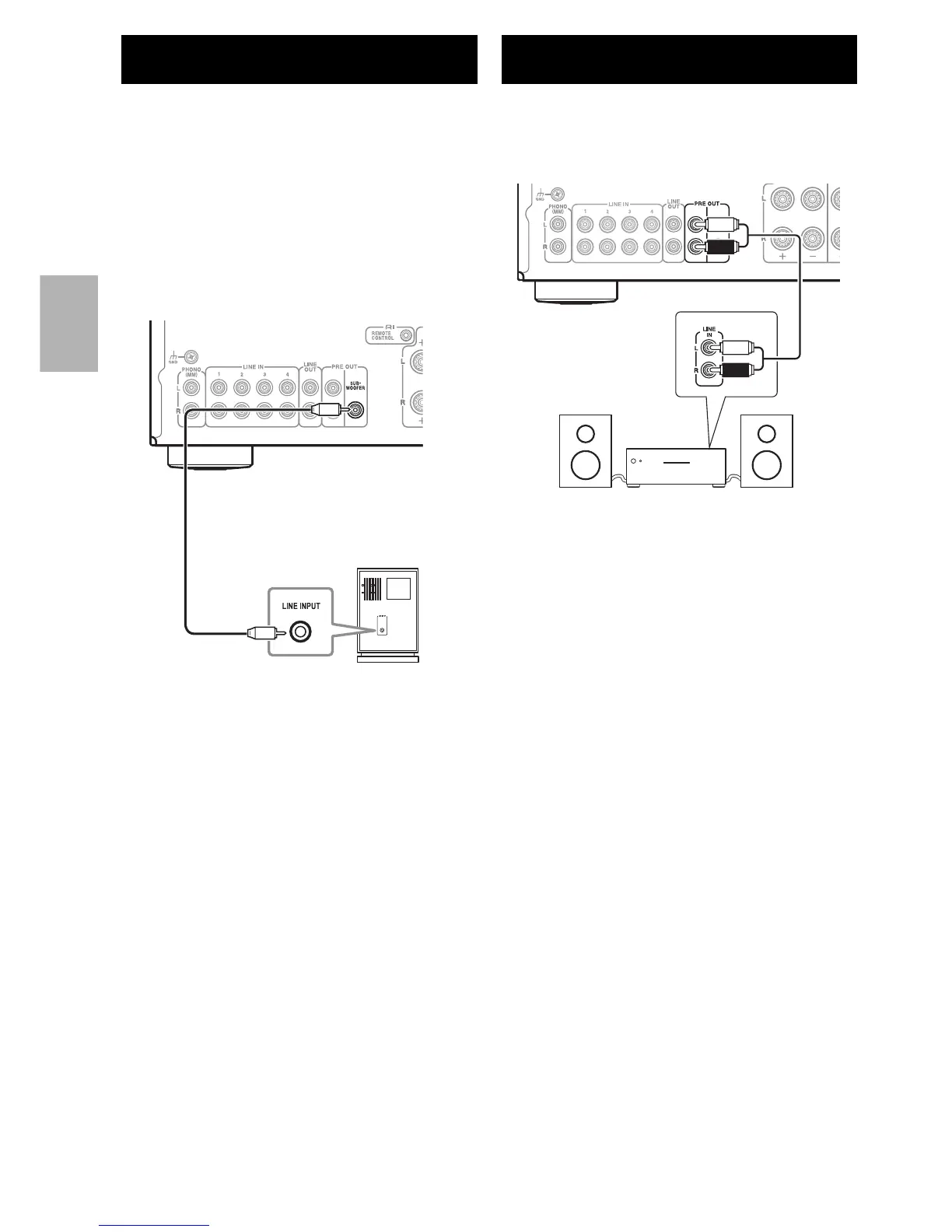

Connecting a Subwoofer With Built-In
Power Amplifier
Integrated Amplifier
Subwoofer with
built-in power
amplifier
Using the Integrated Amplifier as a
Preamplifier
Integrated Amplifier
Power Amplifier

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
