Onkyo R-N855 User Manual

En- 23

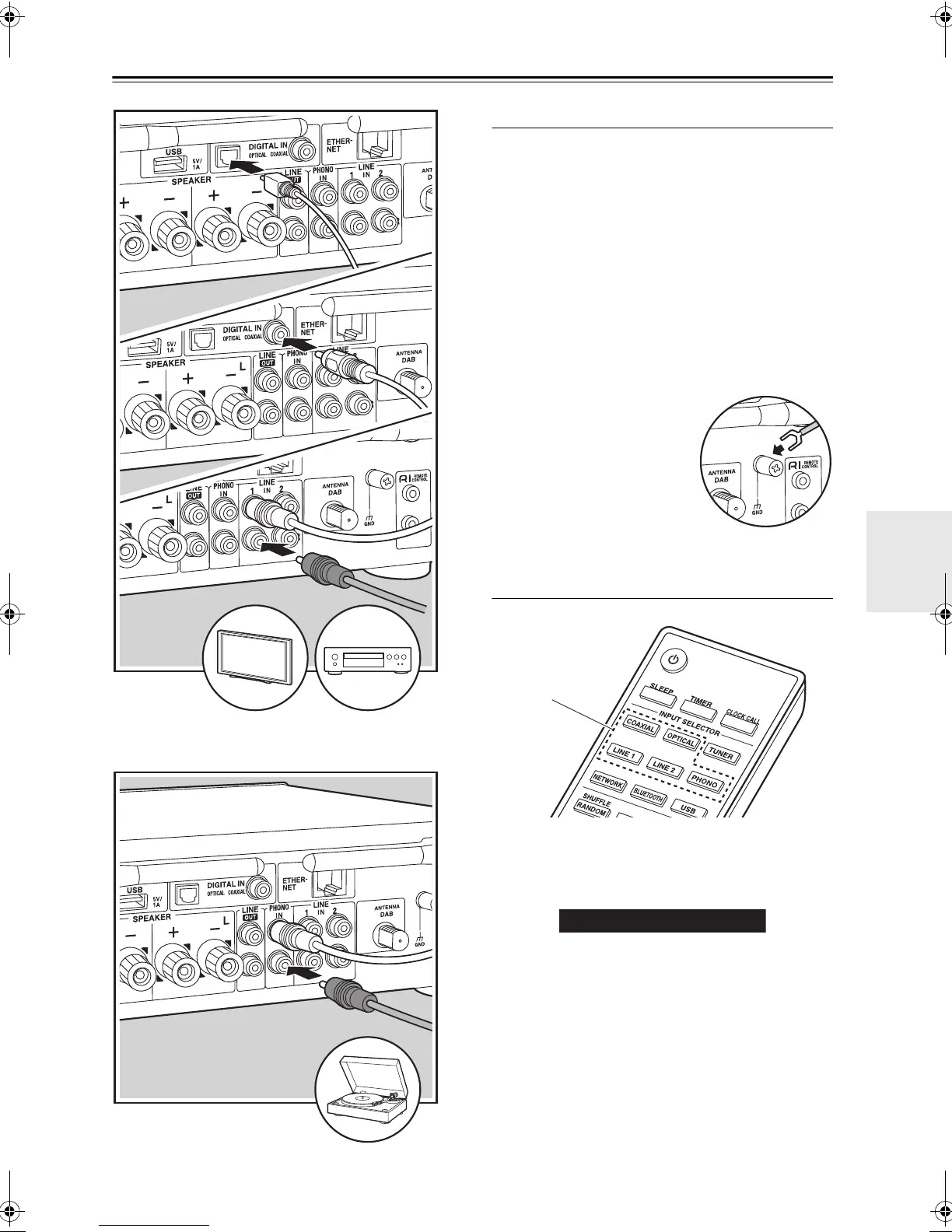

Playing Audio from an External Device
a Digital optical cable, b Digital coaxial cable, c Analog
audio cable
a Analog audio cable
Connections
You can play the audio from external devices such as
TVs, CD players, and turntables with MM cartridges
through this unit. Connect as follows according to the
output jacks on the external devices you are connecting.
When using a digital optical cable, connect to the
DIGITAL IN OPTICAL terminal on this unit.
When using a digital coaxial cable, connect to the
DIGITAL IN COAXIAL terminal on this unit.
When connecting with an analog audio cable, connect
the turntable to the PHONO IN jack and other external
devices is to the LINE IN jacks on this unit.
0 If the connected turntable has a built-in audio
equalizer, connect it to the LINE IN jack.
0 If the turntable has a ground wire, connect it to the
GND terminal.
Playing Back
1. Turn the unit on.
2. Press OPTICAL, COAXIAL, LINE 1, LINE 2, or
PHONO (a) to match the terminal you have connected
the device to switch the input of this unit.
3. Start play on the player.
0 When connected by a digital optical cable or a digital
coaxial cable, this unit supports linear PCM signals of
up to 192 kHz/24 bits for input.
c
a
a
b
b
a
a
OPTICAL
SN29402579_R-N855_En_1608xx.book 23 ページ ２０１６年９月１３日 火曜日 午前９時１２分

Onkyo R-N855 Specifications

General

Receiver type	stereo
Frequency range	5 - 60000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	-
Audio (L/R) out	1
Headphone connectivity	3.5 mm
Product color	Black
Speakers connectivity type	Banana connector
FM band range	87.5 - 108 MHz
Supported radio bands	DAB, DAB+, FM
Preset stations quantity	40
AC input voltage	80-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	60 W
Package weight	8000 g
Cables included	AC

Weight and Dimensions

Depth	283.2 mm
Width	275 mm
Height	87.7 mm
Weight	6100 g
