Opengear ACM7000 User Manual

Chapter 6: Alerts, Auto-Response & Logging
148

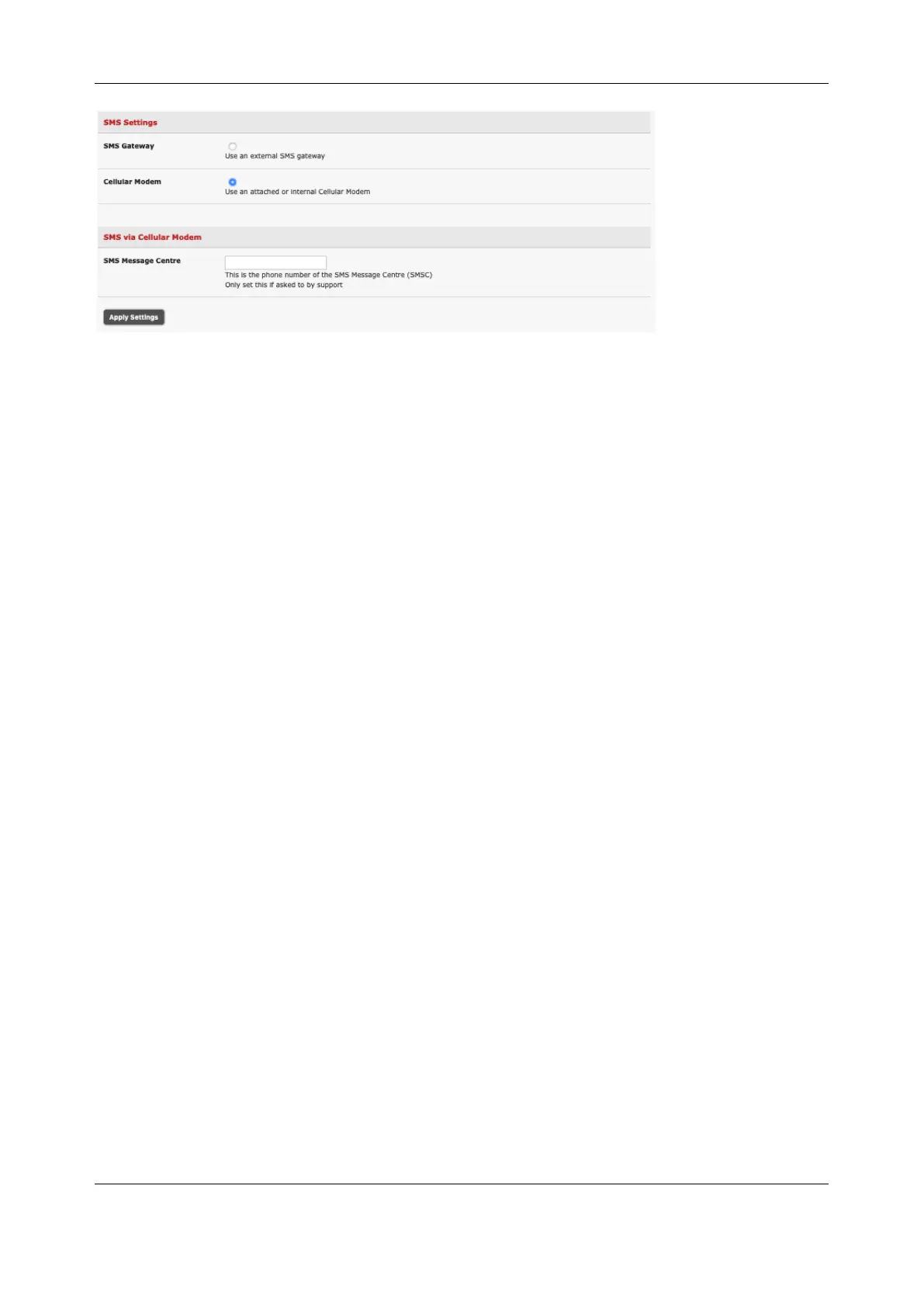

1. Select Cellular Modem in the SMS Settings field
2. You may need to enter the phone number of the carrier’s SMS Message Centre if advised by your
carrier or Support
3. Click Apply Settings to activate SMS-SMTP connection
6.5.3 Send SNMP Trap alerts
An administrator can configure the Simple Network Management Protocol (SNMP) agent that resides on
the console server to send SNMP trap alerts to an NMS management application:
1. Select Alerts & Logging > SNMP
2. Select Primary SNMP Manager tab. The Primary and Secondary SNMP Manager tabs are used to
configure where and how outgoing SNMP alerts and notifications are sent. If you require your console
server to send alerts via SNMP, at a minimum, a Primary SNMP Manager must be configured.
Optionally, a second SNMP Network Manager with its own SNMP settings can be specified on the
Secondary SNMP Manager tab

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
