• Key length This is the length of the generated key in bits. 1024 Bits are supposed to be sufficient
for most cases. Longer keys may result in slower response time of the console server during
connection establishment
• Subject Alternative Names set one or more Subject Alternative Name certificate entries to allow
for multi-homing the device.
NOTE: Set the Common Name of the device as a Subject Alternative Name when the CSR is
generated as some Chrome and Firefox versions will give warnings if this is not done.
2. Once this is done, click on the button Generate CSR which will initiate the Certificate Signing Request
generation. The CSR can be downloaded to your administration machine with the Download button
3. Send the saved CSR string to a Certification Authority (CA). for certification. You will get the new
certificate from the CA after a more or less complicated traditional authentication process (depending
on the CA)
4. Upload the certificate to the console server using the Upload button as shown below

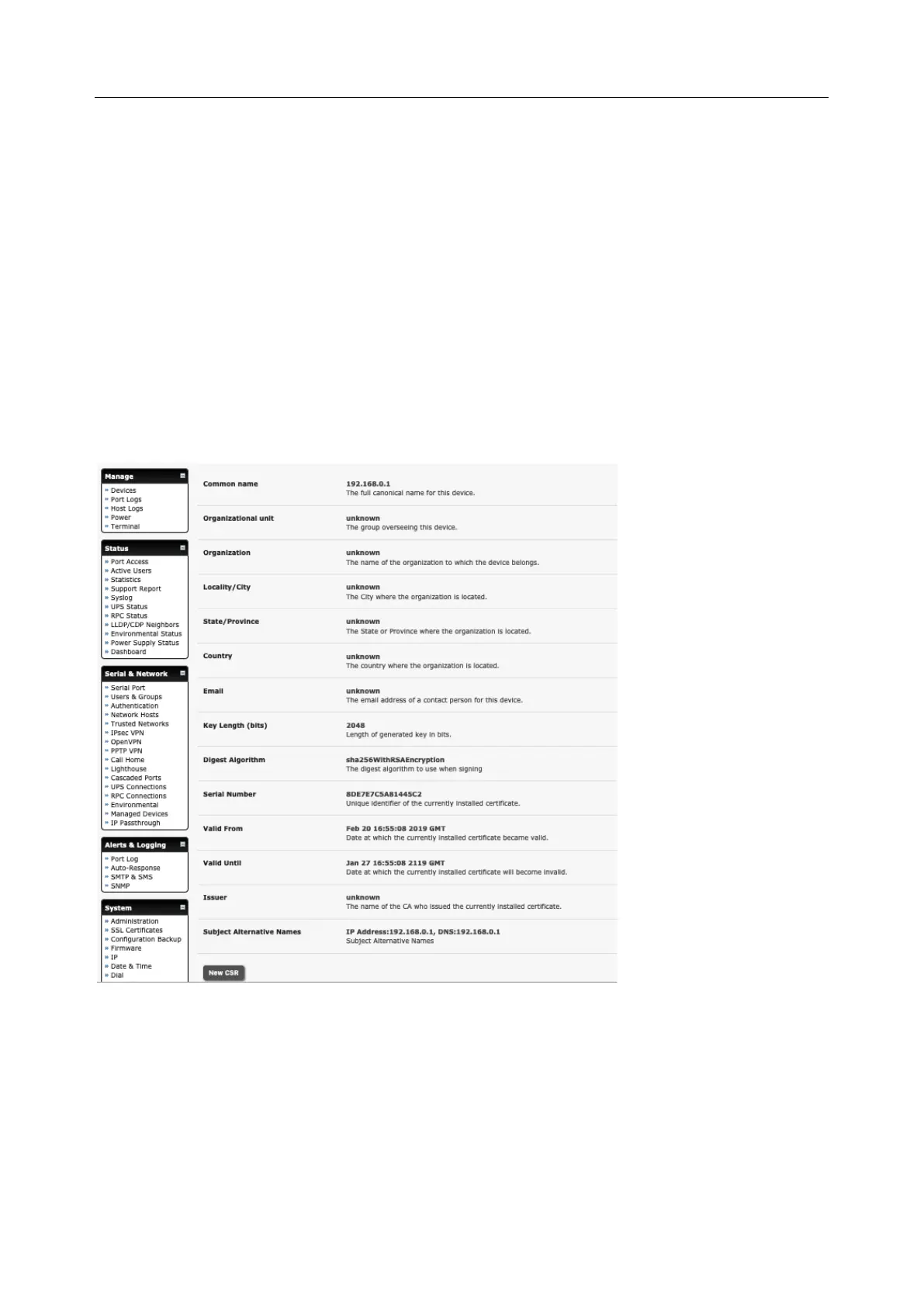

After completing these steps, the console server has its own certificate that is used for identifying the
console server to its users.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
