Opengear ACM7000 User Manual

User Manual
• Users at the central office can securely access the remote console servers and connected serial
console devices and machines on the Management LAN subnet at the remote location as though
they were local
• All these remote console servers can be monitored with a CMS6000 on the central network
• With serial bridging, serial data from controller at the central office machine can be securely
connected to the serially controlled devices at the remote sites

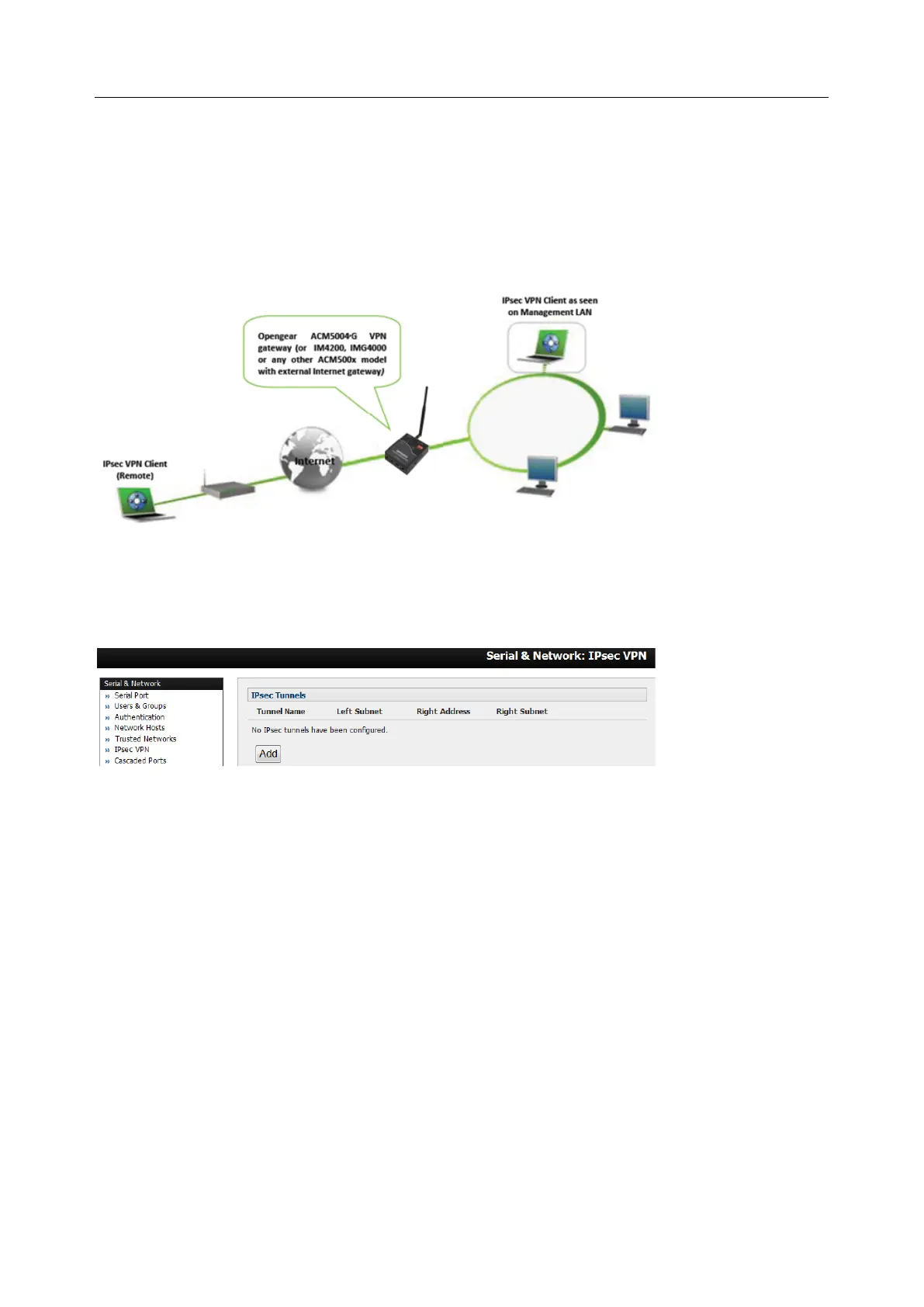

The road warrior administrator can use a VPN IPsec software client to remotely access the console server
and every machine on the Management LAN subnet at the remote location
Configuration of IPsec is quite complex so Opengear provides a GUI interface for basic set up as
described below.
To enable the VPN gateway:
1. Select IPsec VPN on the Serial & Networks menu
2. Click Add and complete the Add IPsec Tunnel screen
3. Enter any descriptive name you wish to identify the IPsec Tunnel you are adding such as
WestStOutlet-VPN

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
