Opengear ACM7000 User Manual

Chapter 3: Serial Port, Device and User Configuration
54

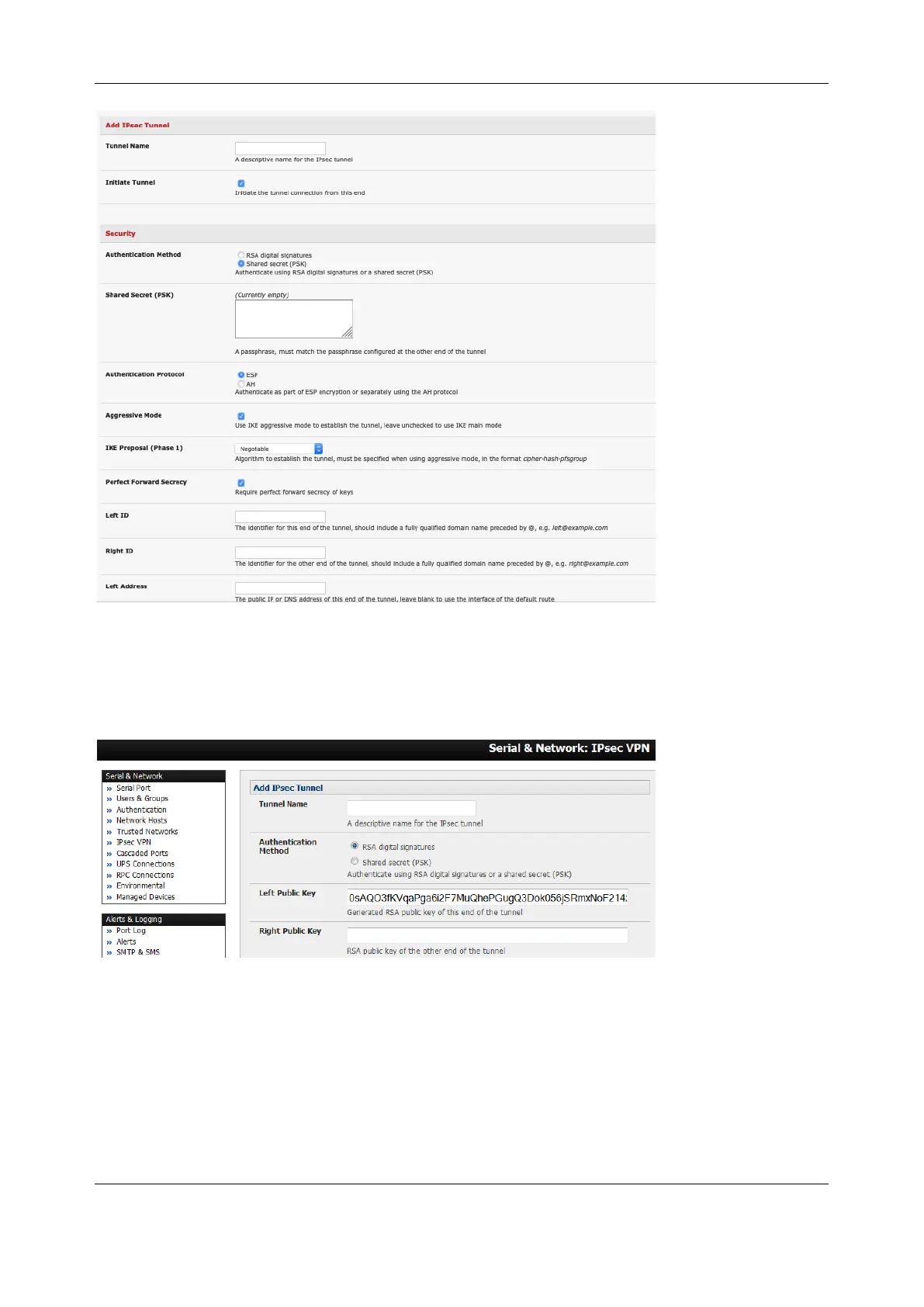

4. Select the Authentication Method to be used, either RSA digital signatures or a Shared secret
(PSK)
o If you select RSA you are asked to click here to generate keys. This generates an RSA
public key for the console server (the Left Public Key). Locate the key to be used on the
remote gateway, cut and paste it into the Right Public Key
o If you select Shared secret, enter a Pre-shared secret (PSK). The PSK must match the PSK
configured at the other end of the tunnel
5. In Authentication Protocol select the authentication protocol to be used. Either authenticate as
part of ESP (Encapsulating Security Payload) encryption or separately using the AH
(Authentication Header) protocol.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
