Opengear ACM7000 User Manual

User Manual

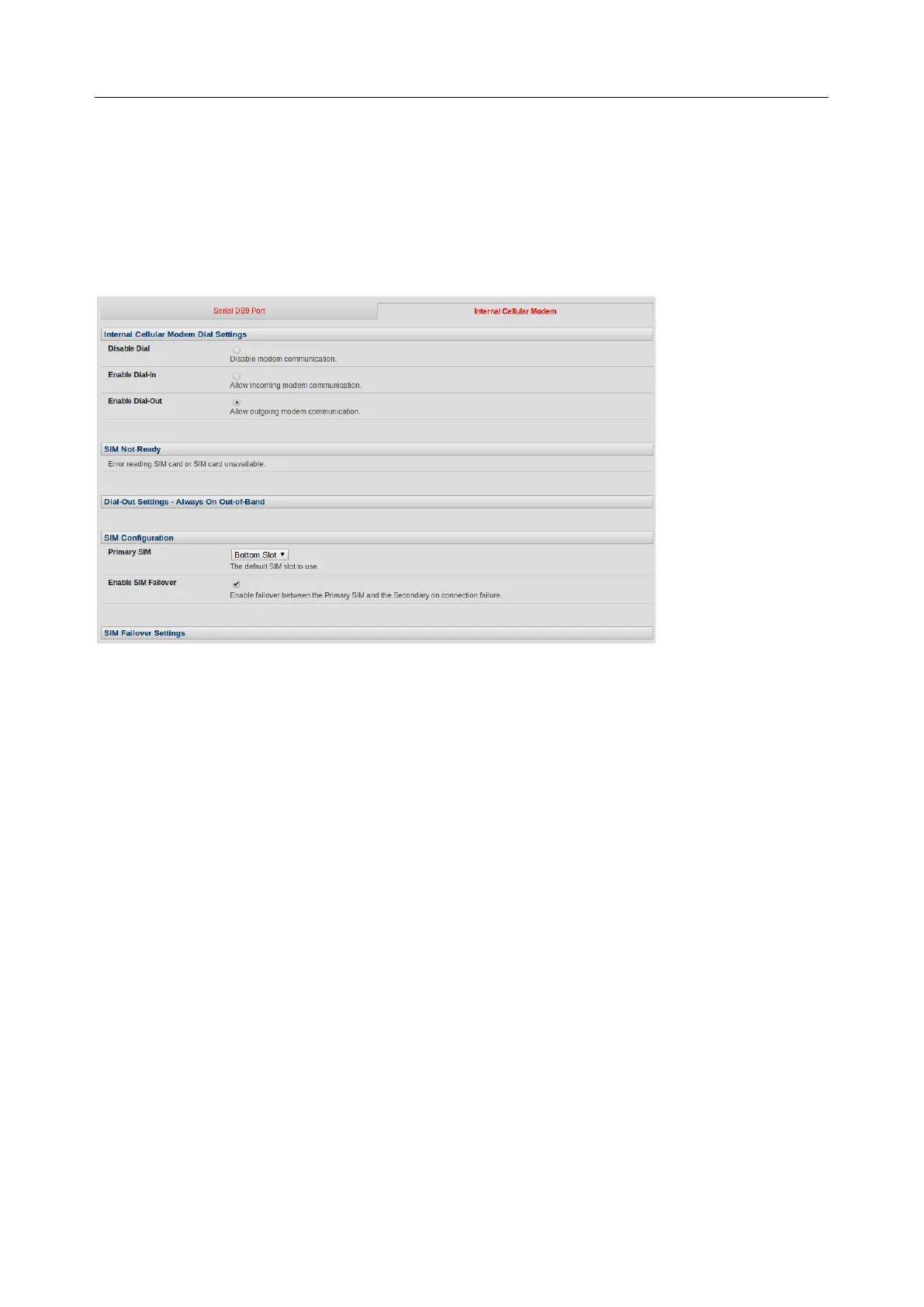

To configure dual SIM failover, you need to:
1. Choose which of the SIMs is to be the Primary. The other SIM will be the secondary/failover. It is
recommended that an explicit slot is chosen, rather than leaving it on Automatic. Select Internal
Cellular Modem panel on the System > Dial menu nominate which slot (Top or Bottom) contains the
Primary
2. Check Enable SIM Failover
3. Specify how the device will Failback from the failover SIM to the Primary SIM. There are two options
o On Disconnect failbacks to the Primary SIM only after the connection on the failover SIM has
failed its ping test
o On Timeout failbacks to the Primary SIM after the connection on the failover SIM has been up
for the timeout period. The timeout period is either the default value of 600 seconds or the
number of seconds you have specified in the Failback Timeout field
4. Configure each SIM connection with as much information to make a successful connection given
sufficient signal strength from the cell service provider
5. Enter a Failback Test IP address for each SIM. This IP address is used to ping test the status of the
cell modem connection and to determine if SIM failover or failback is to take place.
Configuring DDNS and the Modem Watchdog are optional. DDNS, when configured, is applied to the
cell modem dial out connection regardless of which SIM is in use. Dual SIM failover is for dial out
connections only
4.6.7 Automatic SIM Slot Detection
If a single SIM card is used in a Dual SIM slot product, the console server selects that slot. If both slots are
populated, the bottom SIM slot is used.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
