3 Operational Maintenance
3-5Eagle Operator Manual - OPEX Corp. Use Only - Not for Distribution
Dust Collection and Air Filtration System Maintenance
The Eagle has an optional Dust Collection and Air Filtration system. Its primary
purpose is improvement of the environment for the machine operator. Additional
benefits include improved machine functionality, maintainability and appearance.
Pickup locations
Dust pickup locations are provided where:
• paper-handling causes shear between pieces,
• paper cutting is being performed,
• opening and extraction of envelope contents takes place, and
• high-wear components of the machine are operating (i.e. foam rollers).

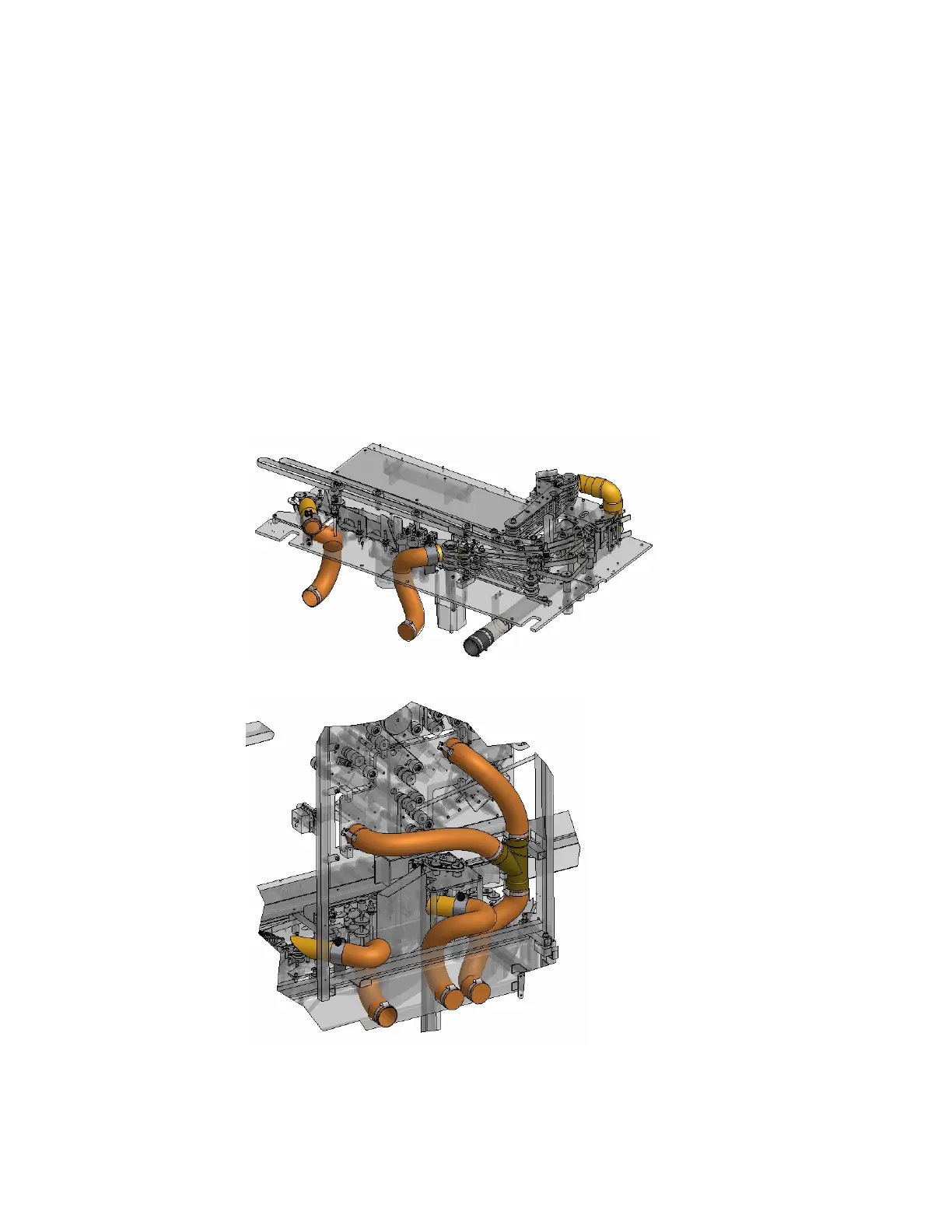

FIGURE 29: Dust pickup locations
Cutter #1
Buffer feeder
Main feeder
Cutter
#2
Cutter #3
Imager plate
