Calibrating the Touch-Screen Monitor
The touch-screen monitor is calibrated for its touch sensitivity before it leaves OPEX.
However, you may need to recalibrate, especially if it is in use for an extended period
of time.
To calibrate the monitor:
1 Open the Windows Control Panel by clicking Start > Settings > Control Panel.

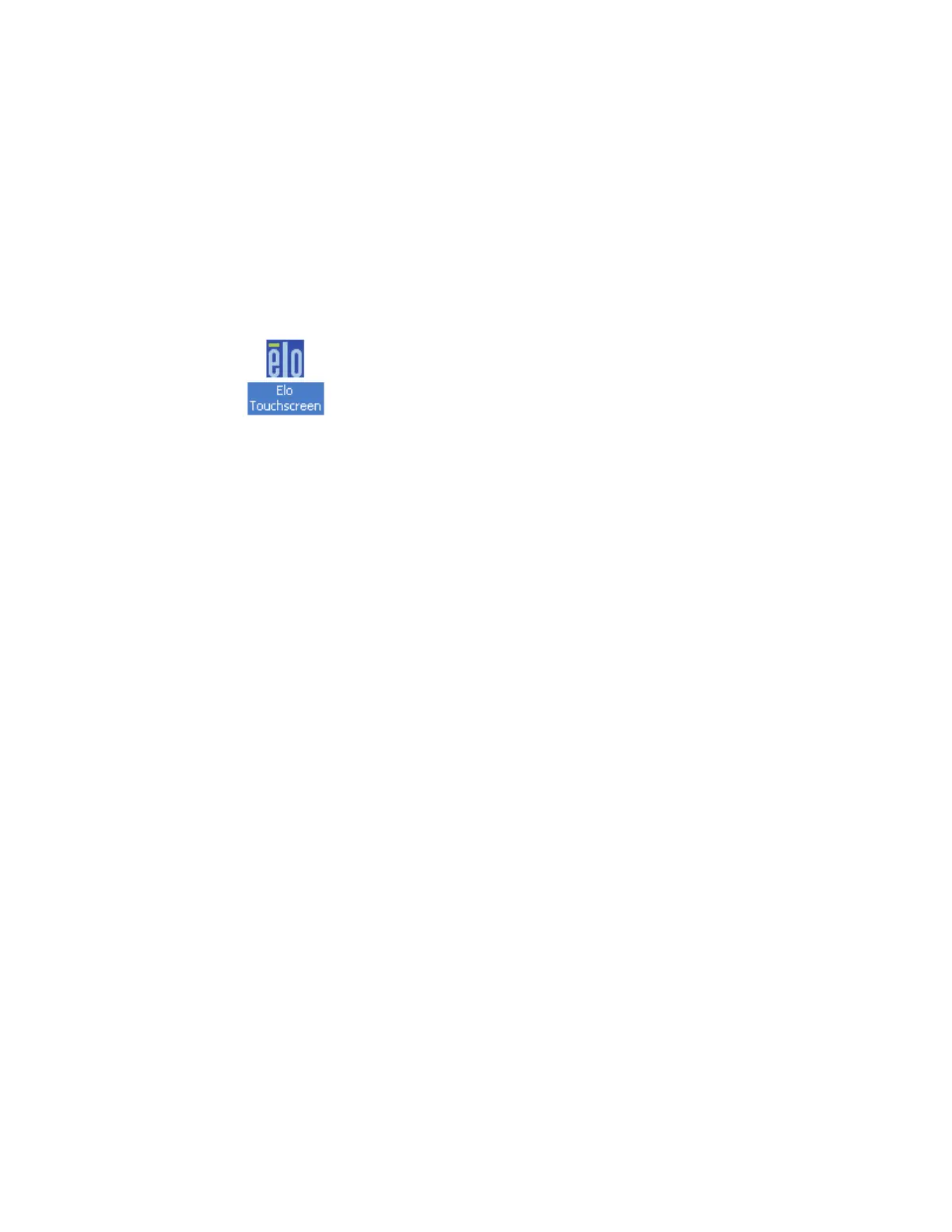

2 Double-click the Elo Touchscreen icon to open the Elo Properties screen.
3 Click Align.
4 Follow the instructions on the screen, using the monitor to touch the three
targets.
NOTE: Make sure you touch the monitor’s surface. Do not use the mouse to
perform this step, as you are calibrating the monitor to touch.
5 Check Video Alignment dialog box appears appears next. Touch around the
screen, making sure the cursor follows where you touch.
6 If the test was successful, touch Yes.
7 If the test was not successful, you are prompted to repeat the test. Complete
steps 3 through 6 again.
8 When finished, touch OK to close the Elo Touchscreen Properties window.
