8 Air inlet socket
Input for the external compressed air for the Venturi pump, the vitrectomy
handpiece and the silicone oil injection (only R-Evo Smart).
The air pressure must be 500 to 800kPa. The available flow must be at least
32Nl/min.
4.2.5
Side view

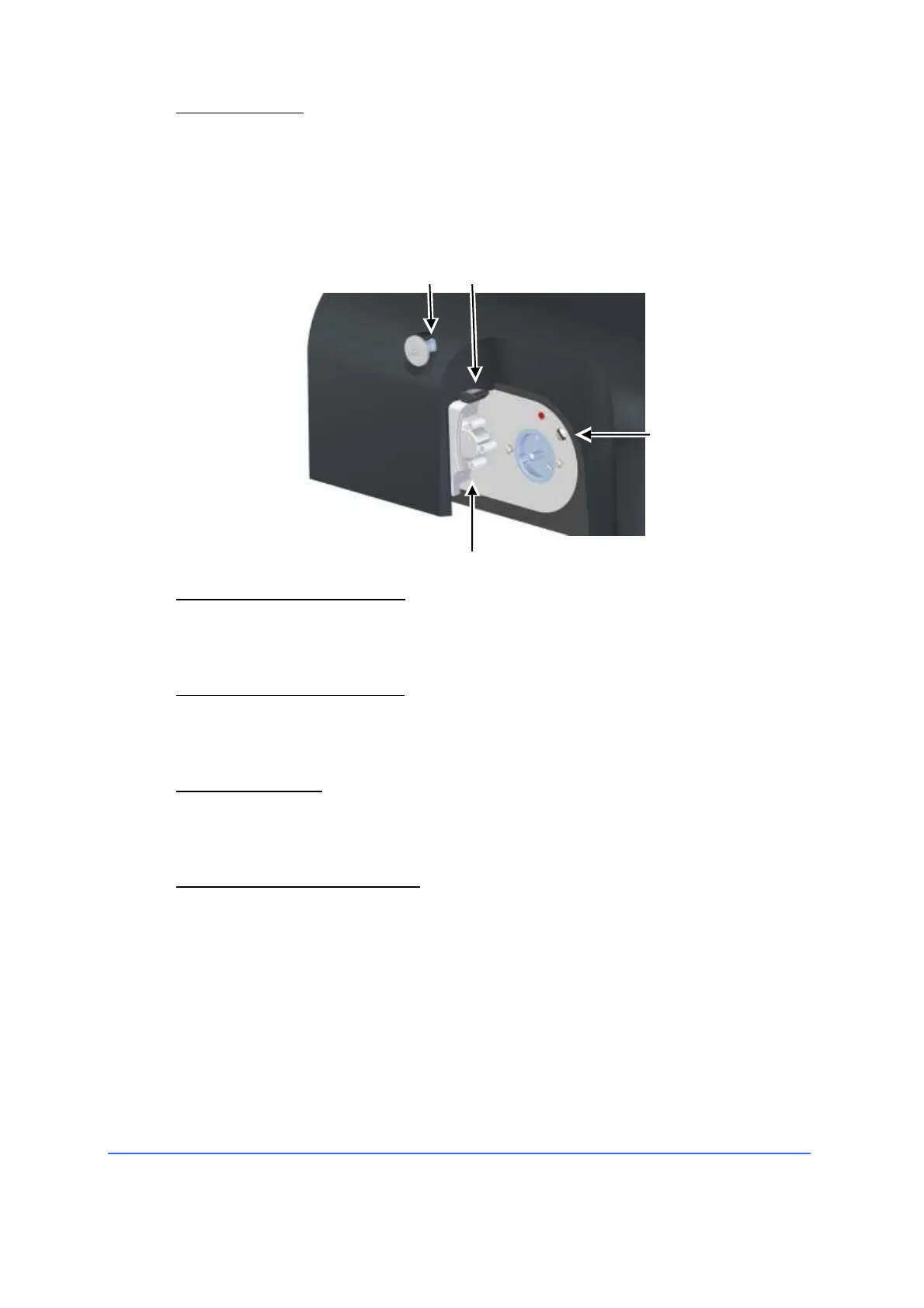

1 Controlled Irrigation Outlet
The connector for the pressurization of the balanced salt solution bottle or
the pressurization of the controlled infusion bag must be connected to this
socket.
2 I/A cassette release button
By briefly pressing this button, the peristaltic pump rotor moves backwards,
allowing the I/A cassette to rotate anti-clockwise and to remove it from the
pump plate.
3 Fluid level sensor
This sensor detects the presence of the I/A cassette and the level reached
by the fluids drawn into the collecting tank. Stops aspiration when the tank
is full.
4 Rotor of the peristaltic pump
Allows aspiration with peristaltic pump, also has the function of valve in the
case of aspiration with Venturi pump (R-Evo Smart S and CR).
