4.3.3 Installation of phaco accessories
CAUTION Risk of injury to the patient's eye!
If the "priming" is done while the tip is used on the
patient, this could cause serious damage to the patient's
ocular structure.
• Never perform the "Priming" preparation and test
procedure while you are using the device on a patient.

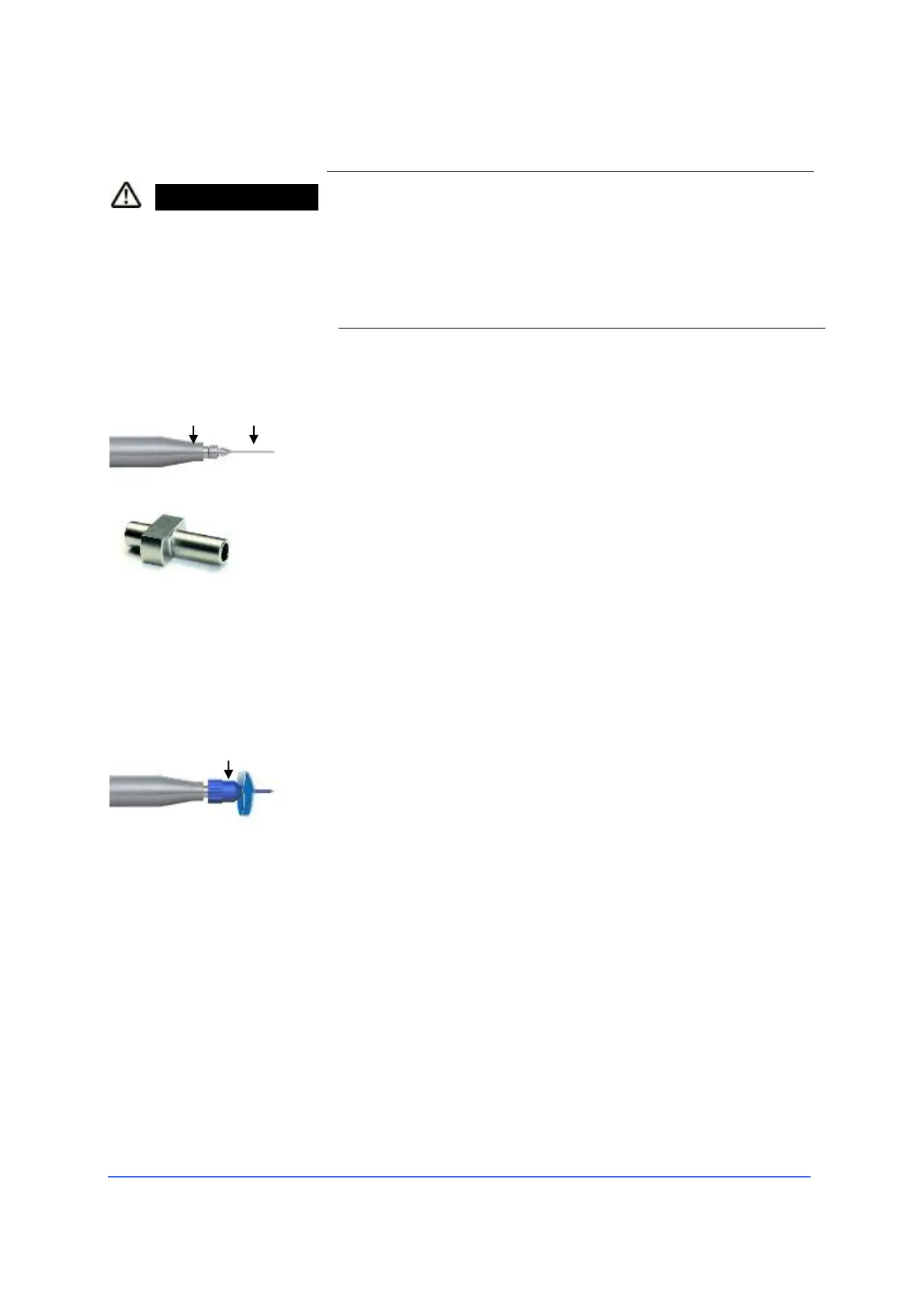

Connection of the tip to the handpiece
• Tighten the desired tip (2) on the end of a handpiece
(1), making sure the threads are correctly engaged.
Tighten the tip only with your fingers.
• Carefully position the wrench opening (on the side of
the flange) on the tip (2) without damaging the tip, so
that the key engages the slots at the base of the tip.
• Carefully tighten the tip with the appropriate wrench
clockwise.
• Remove the key from the tip.
Connection of the silicone sleeve (sleeve) to the tip
Carefully slide the silicone threaded sleeve (3) onto the tip
until the threads are engaged.
• Slowly tighten the silicone sleeve on the phaco
handpiece until the silicone sleeve end leaves exposed
the amount of phaco tip desired by the surgeon.
• The phaco handpiece (1) is now ready to receive the
irrigation/aspiration tubes of the surgical systems.
