R-evo Smart E/S/CR Installation and use manual
Cod. 1X10XXEN 2020-09-14 Rev.E
Connection of irrigation/aspiration tubings

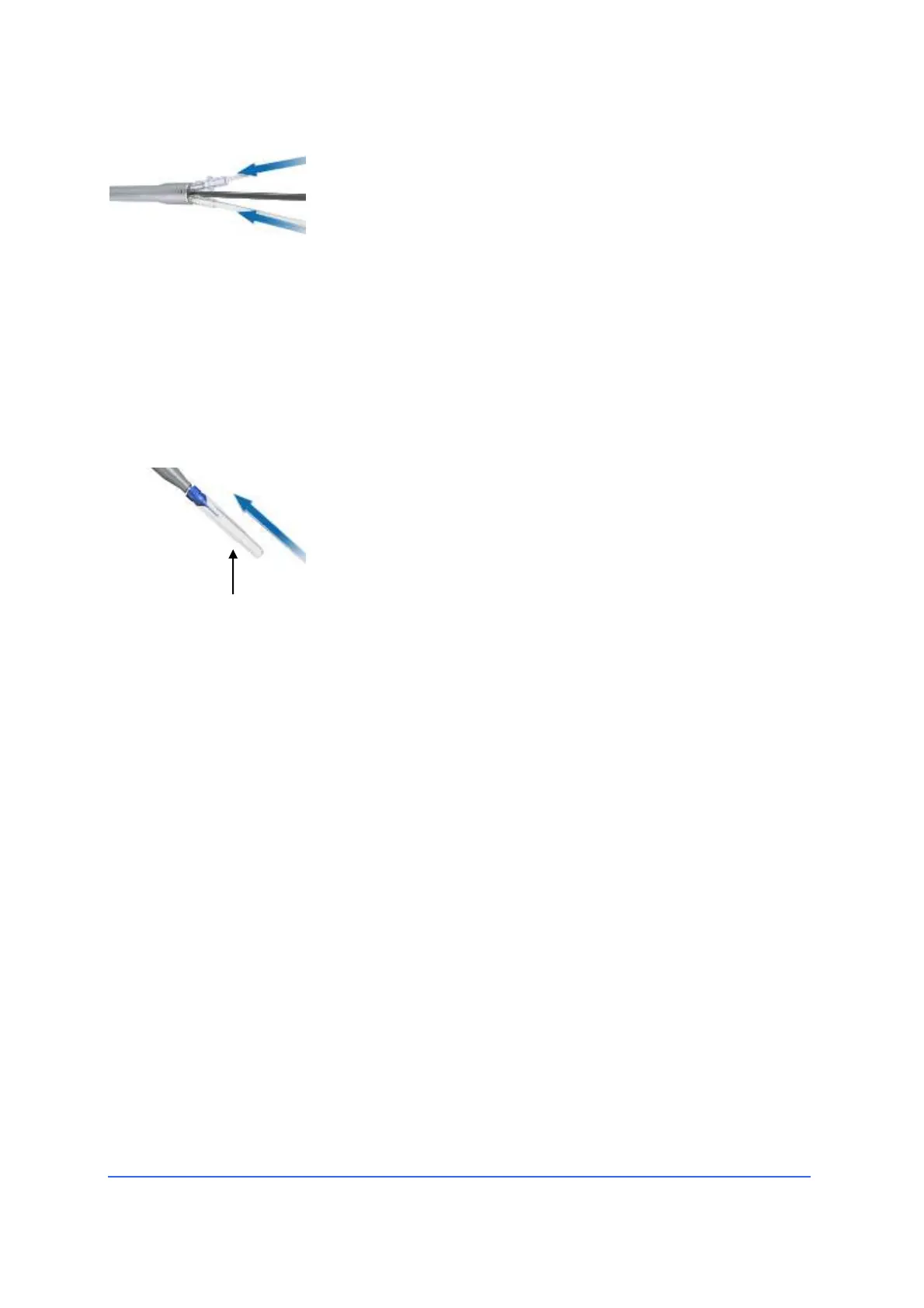

• To connect the aspiration tube of the
irrigation/aspiration tube assembly, insert the end of
the female connector into the corresponding male
connector of the phaco handpiece and tighten while
pressing and turning slightly.
• To connect the irrigation hose of the
irrigation/aspiration tubing assembly, insert the end of
the male Luer into the corresponding female connector
of the handpiece and tighten while pressing and turning
slightly.
Preparation procedure and "Priming" test
• Fill the test chamber (9) of balanced saline solution and
slide it over the silicone sleeve.
• Position the test chamber at the level of the patient's
eye.
• Connect the I/A cassette to the console if you have not
already done so, and connect it to the irrigation bottle.
• Plug the power supply plug of the handpiece into the U/S
socket (1) on the front of the unit.
• Press the button <Prime> (preparation) in the lower left
corner of the screen.
• After completing the preparation procedure, the display
will show the message "Ultrasound Ready".
