Version 1.1.1 - 2021-1-2528 Translation of original instruction
MB4
EN
MB4_GB_4.fm
4.7 Changing the speed range
ATTENTION!
Wait until the drilling-milling machine has come to a complete halt before changing the
speed using the gear switch.
There are two levers to switch over the gear to the desired spindle speed at the front side of the
machine. The following speeds are available in depending the used electric motor drive stage.

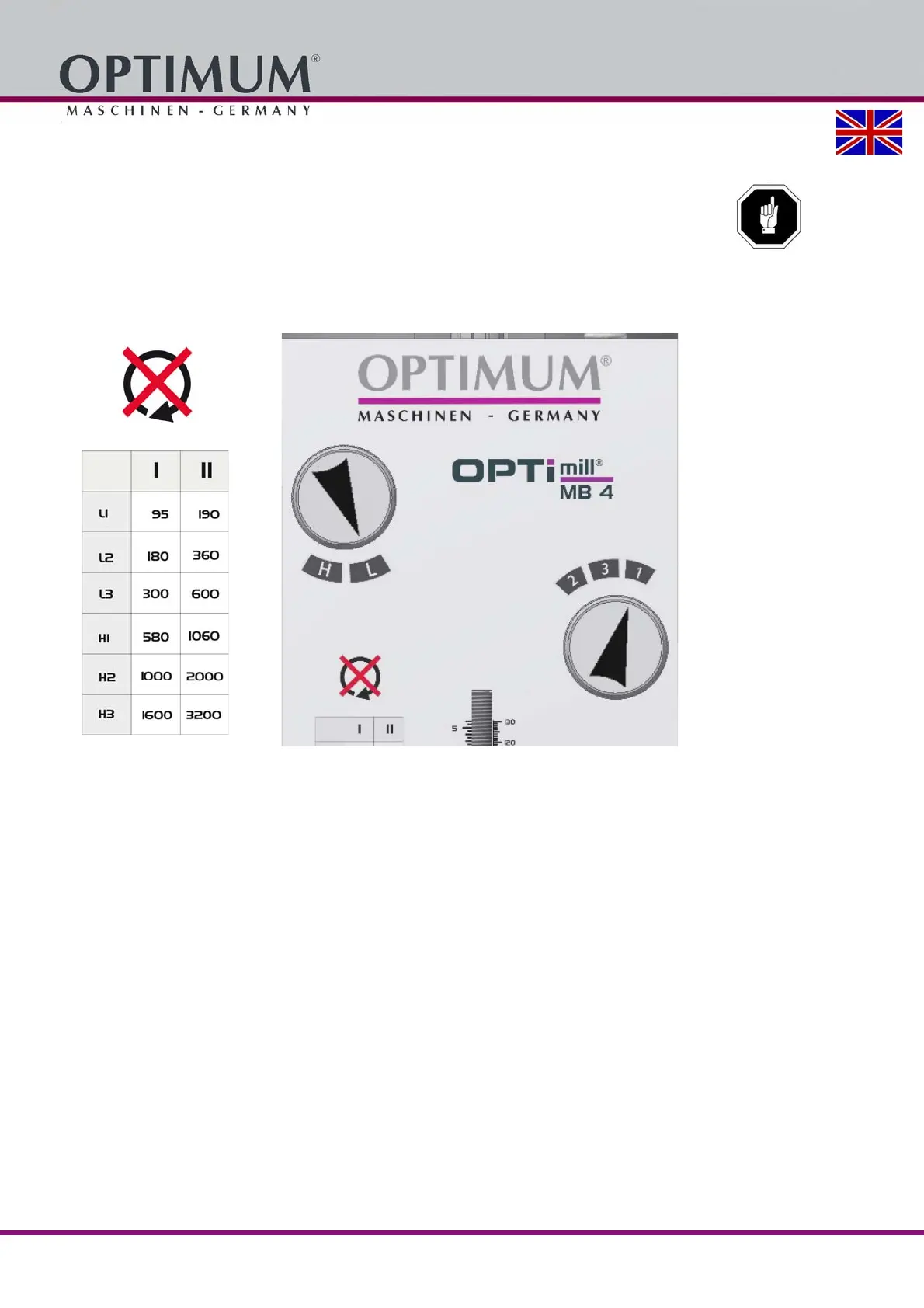

4.7.1 Speed table three-phase drive
Img.4-2: Speed table
