5.2. Connection between the COMPACT and COMPACT-E units
Use the BUS AUDIO LINK and the CAN BUS contacts to connect the COMPACT matrix to the COMPACT-E units.
By default, the transmission speed of the CAN bus of the COMPACT unit is 500 kbit/s.
For the connection of the CAN bus it is recommended to use a shielded twisted pair AWG24 cable.

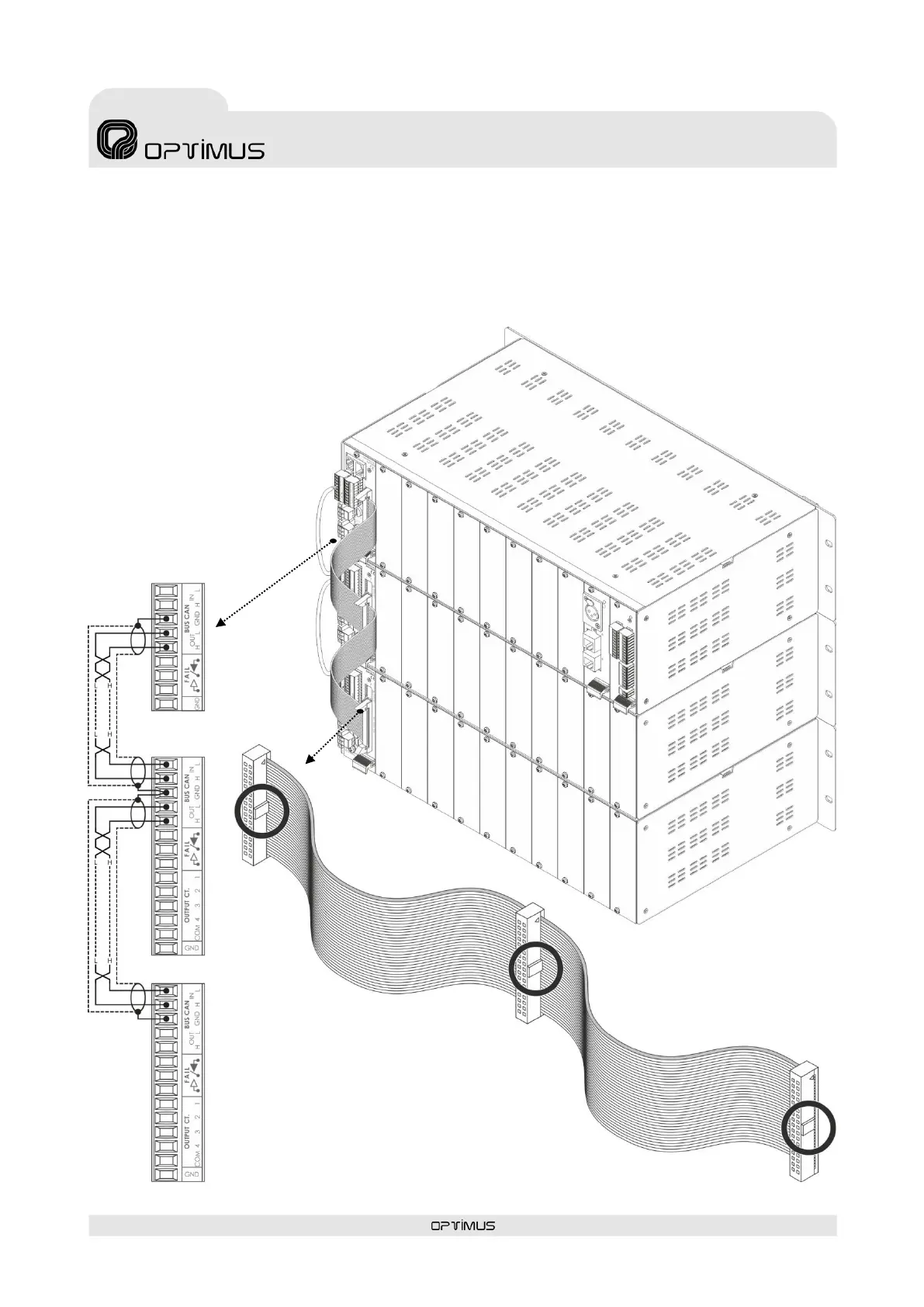

Figure 16
CAN BUS
Figure 17
AUDIO BUS
