7.2. UMX-C16 Connection

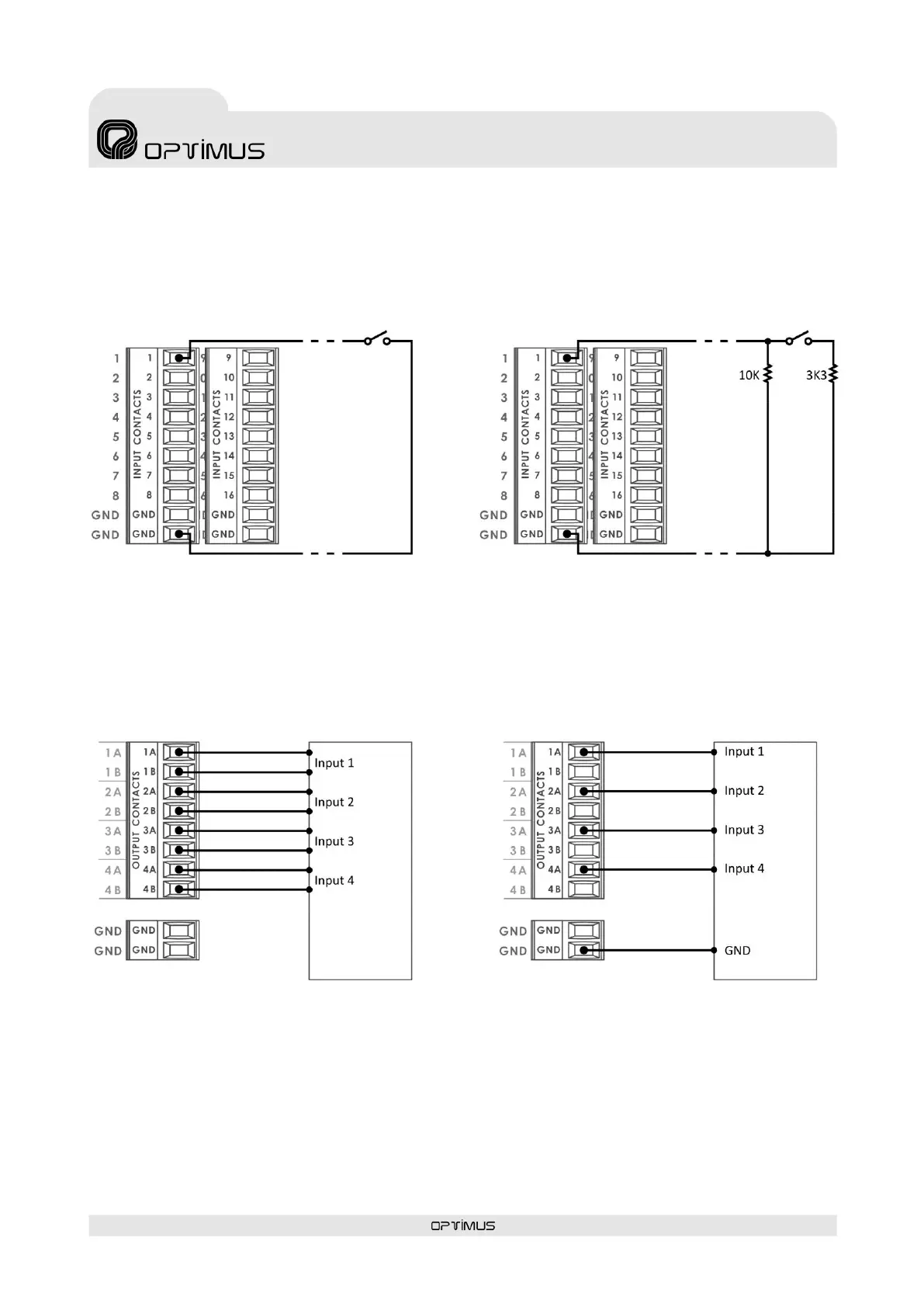

7.2.1. INPUT Contacts
7.2.2. OUTPUT Contacts
NOT MONITORED
CONTACT MONITORED
EXTERNAL UNIT
Figure 24
Figure 23
Figure 25
CONNECTION AS DRY CONTACTS
Figure 26
CONNECTION AS CONTACTS REFERENCED TO GROUND
EXTERNAL UNIT
