Note:
The 15 individual Fans are in the front of the chassis.
There are two flat head screws on either side of the Fan, that hold each
Fan in place.
4. Using a flathead screwdriver, unscrew the two flat head captive screws at each
side of the individual fan you are replacing.

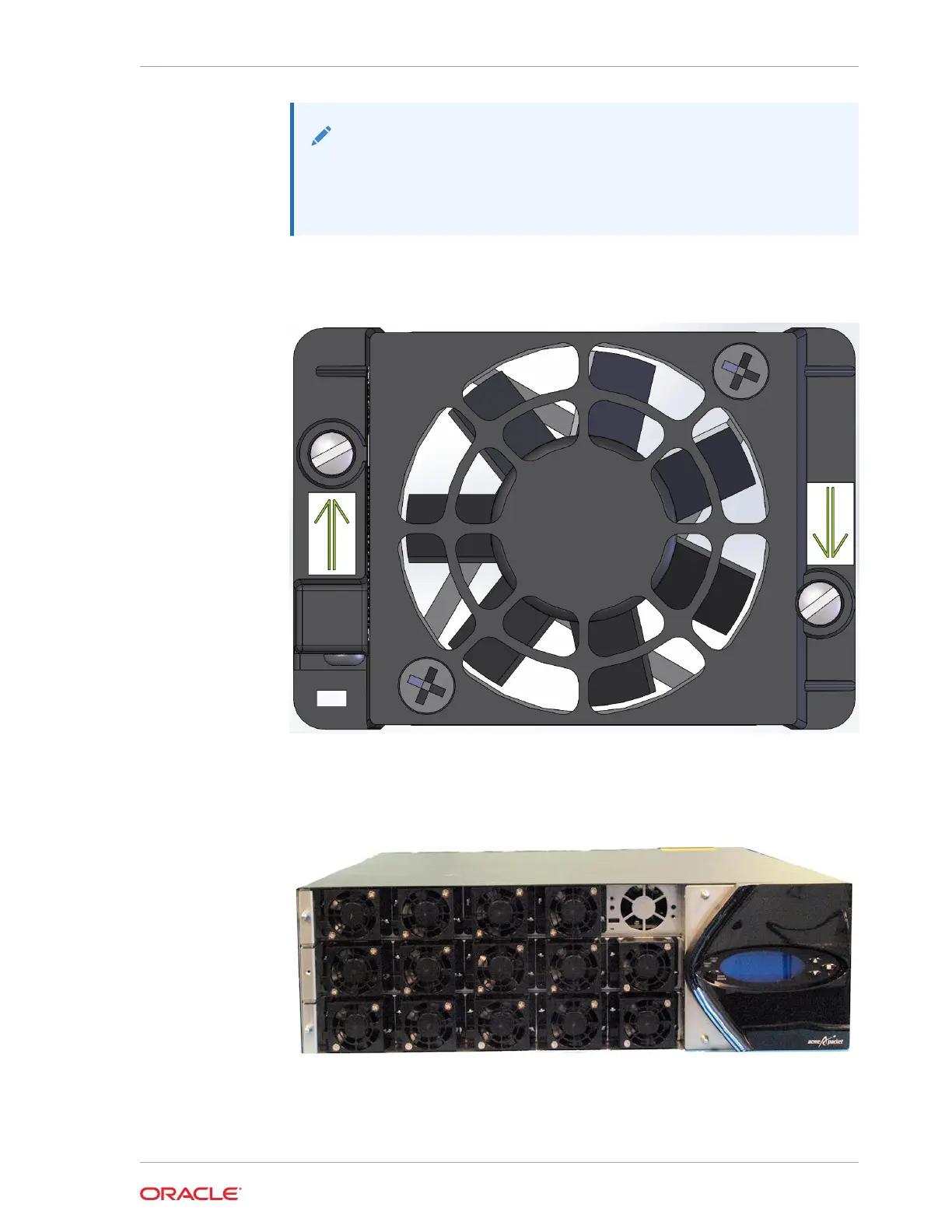

Captive Screws
5. Pull the individual fan you just unscrewed directly toward you and out of the
chassis. Move the fan to an ESD safe location.
Removed Fan
Chapter 6
Fan and Filter Maintenance
