Installed Stationary Slide Rails
Rear-Mounting a Tapped Hole Rack Installation

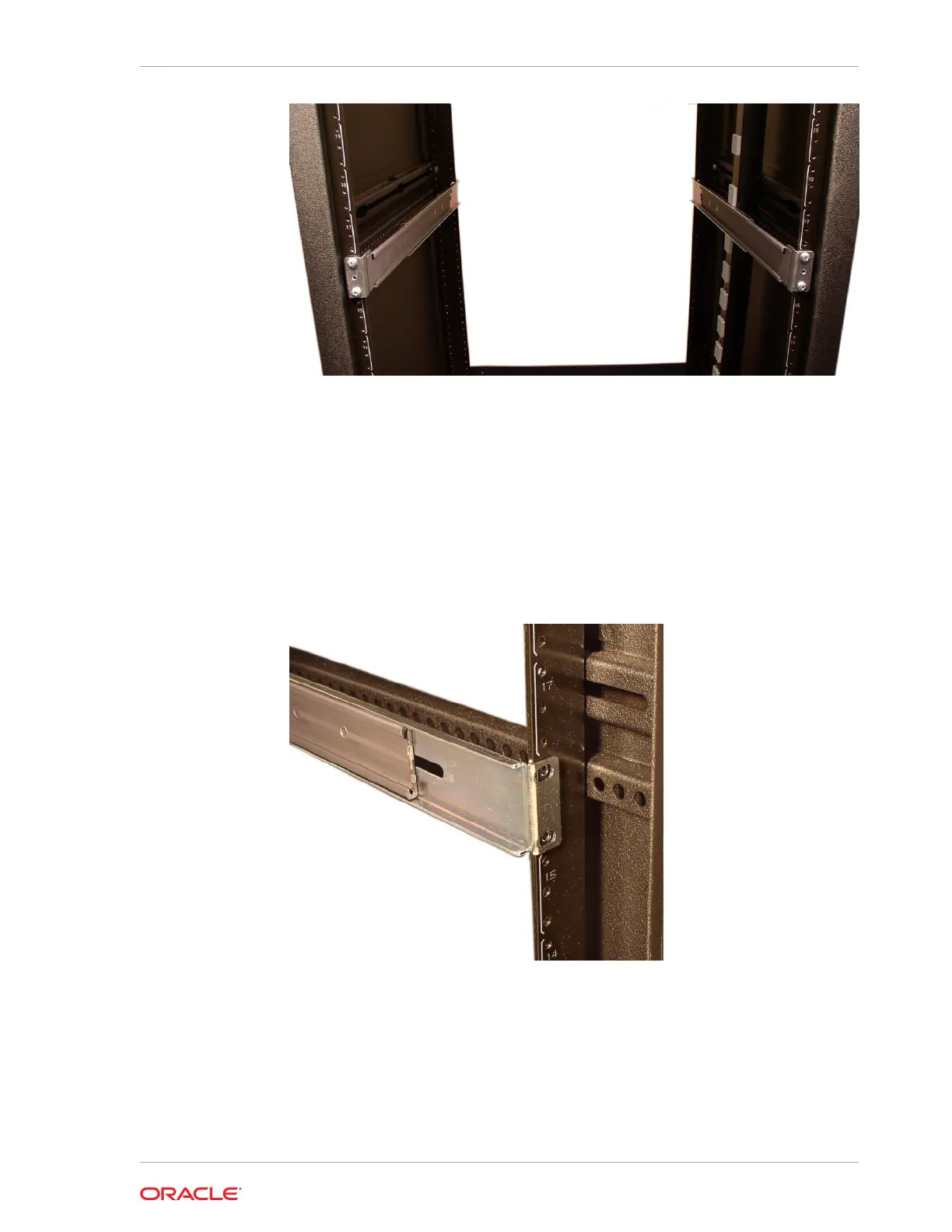

To install the stationary slide rails on the rear of a tapped hole equipment rack:
1. Locate the following components:
• 4 x 10-32 x 5/8” screws
2. Expand and line up the opposite end of the stationary slide rail on the outside of
the rear rack slide rail at the same height used for the front mount point.
Rear Mount Point
3. Place one 10-32 screw through the stationary slide rail ear and screw in place.
4. Repeat Step 3 for the other mounting point.
Chapter 4
Cabinet-Style 4-Post Chassis Installation
4-9
