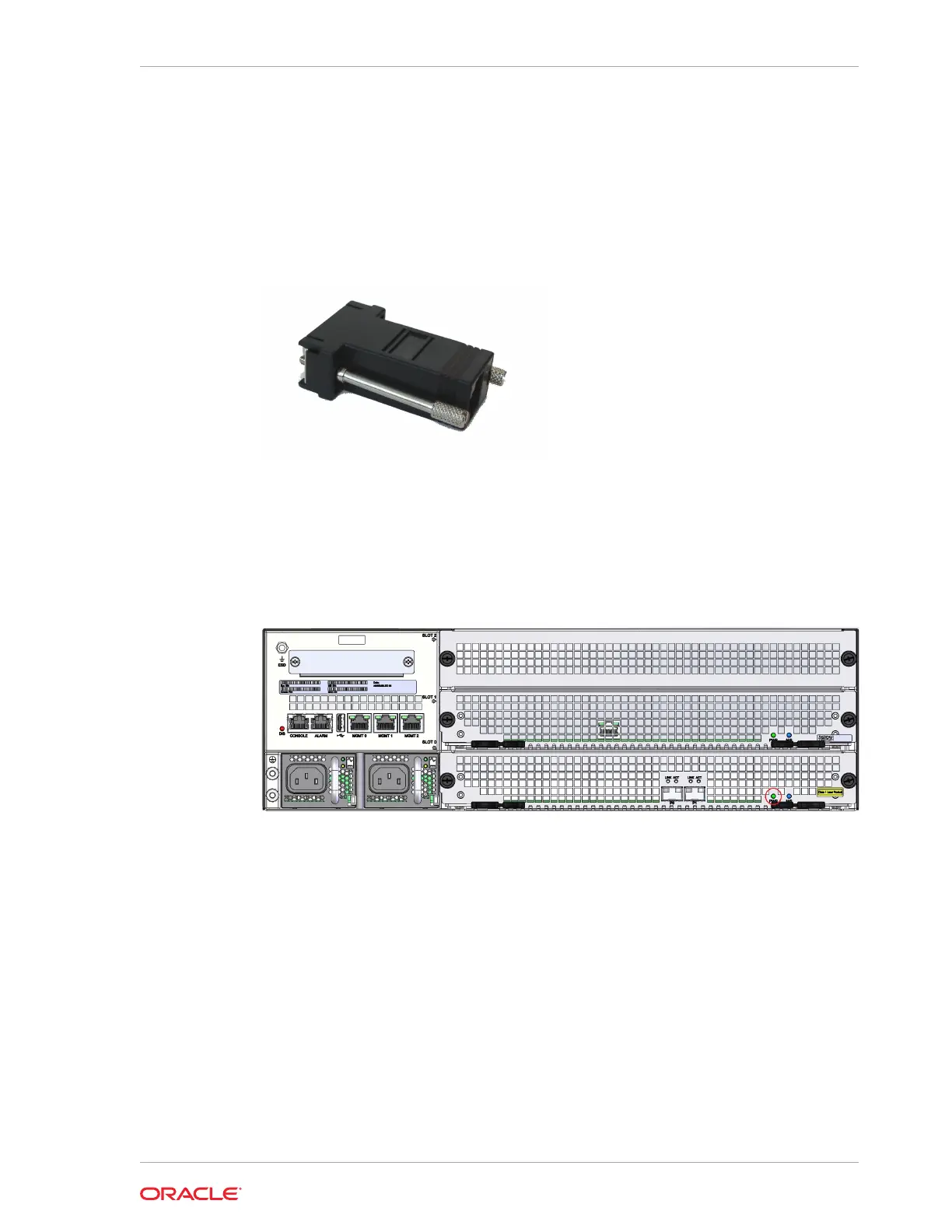

Console Adapter
A standard RJ45 to DB-9 serial console adapter is shipped with your Acme Packet
6300/6350. This adapter converts from an Ethernet cable’s RJ45 plug to a standard
DB-9 serial port jack, found on a PC or laptop. Any standard Ethernet cable can be
used between the Acme Packet 6300/6350 and the console adapter.
RJ45 to DB-9 Serial Console Adapter
PWR LED
The green PWR LED indicates the operational state of the Option Card.
PWR LED
Possible states of the PWR LED include:
on — indicates that power is being applied to the Option Card.
off — indicates that power is not being applied to the Option Card.
H/S LED
The blue H/S LED indicates whether the Option Card is seated properly.
Chapter 2
Option Card Slots
2-9
