Removing the TM
6. Place the TM on an ESD-safe antistatic surface.
Installing the Transcoding Module
The following procedure describes how to install the Transcoding Module (TM) onto
the TCU.
Prerequisites:
• Place the new TM in an ESD-safe location.
• Wear an ESD wrist strap or take similar equivalent actions to prevent static
damage to the TCU or other ESD-sensitive components.
• Note the location of the TM connector on the TCU.
To remove the TM:

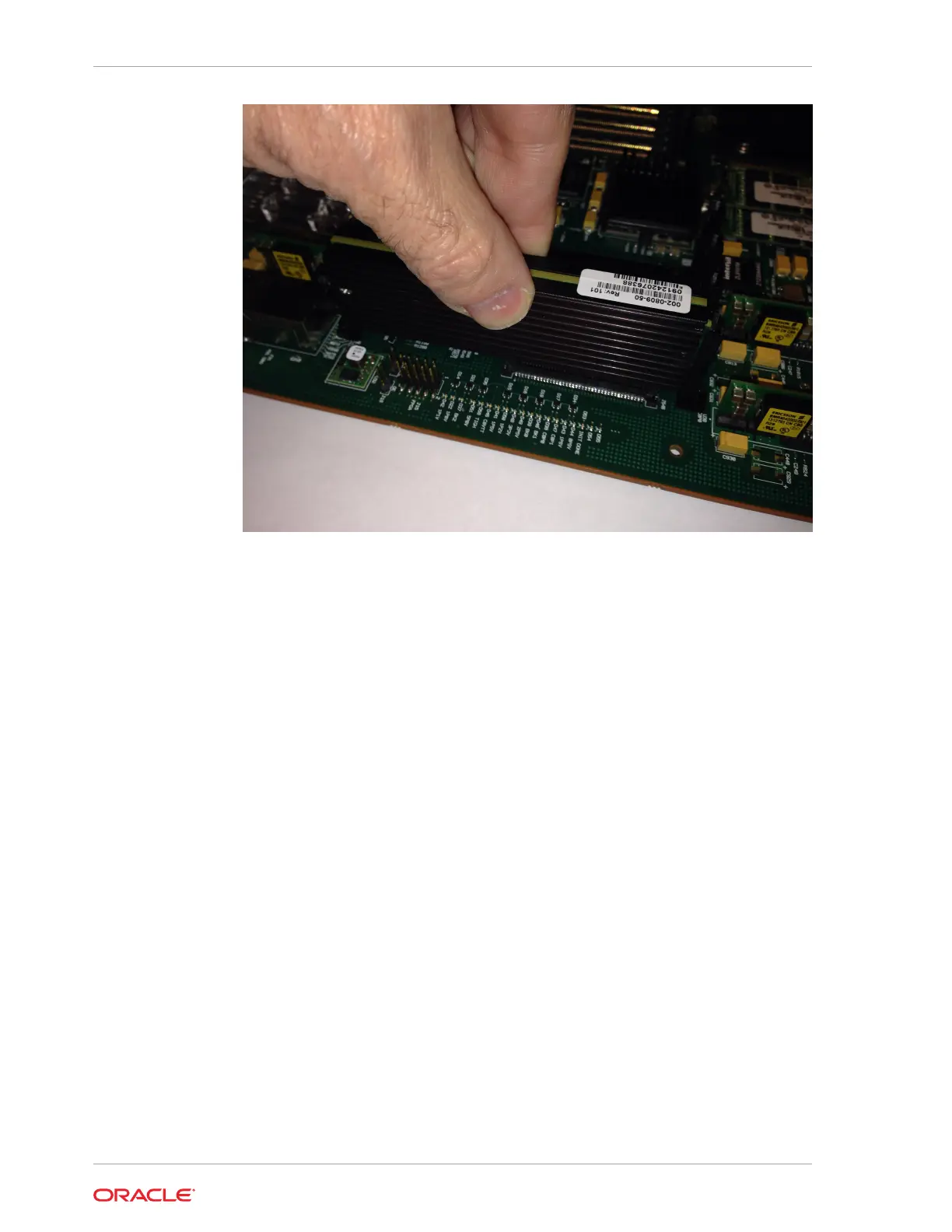

1. Grasp the TM between your thumb and index finger of each hand and line up both
sides of the module with the slot guides attached to the TCU (see below).
Chapter 6
Replacing Transcoding Modules
6-26
