H/S LED
Possible states of the H/S LED include:
on/blinking — indicates that the Option Card is not seated properly. When this occurs,
ensure that you remove power to the platform and attempt to properly lock the Option
Card to the chassis. Then apply power to the chassis. If the H/S LED is no longer lit,
proceed with normal operations.
off — when the PWR LED is on, this indicates that the Option Card is seated properly
in the chassis.
Alarm Port

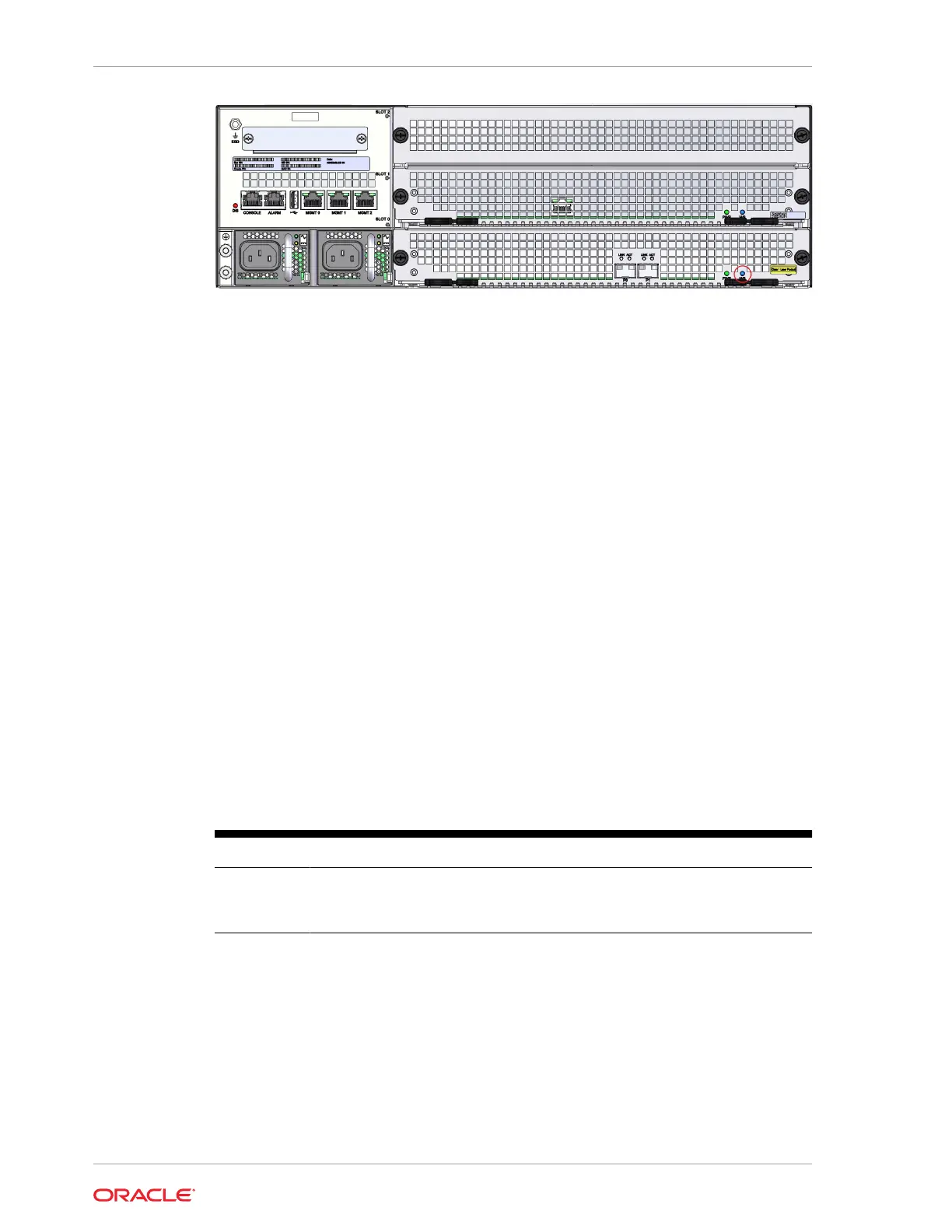

The alarm port on the Acme Packet 6300/6350 is a flexible interface that closes a
circuit when a specific alarm level becomes active on the Acme Packet 6300/6350. An
alarm control signal interface on the Acme Packet 6300/6350 can be used in a CO
location to indicate when internal alarms are generated. The Acme Packet 6300/6350
uses alarm levels that correspond to three levels of service-disrupting incidents. When
one of the three alarm levels is generated, the corresponding circuit for that level on
the alarm port is closed.
Alarm Levels
The following table lists the three alarm levels.
Table 2-2 Acme Packet 6300/6350 Alarm Types
Alarm Type Description
Minor Functionality has been impaired to a small degree (e.g., a single fan has failed).
Major Pending failures or unexpected events have occurred (e.g., a loss of signal).
Critical A catastrophic condition has occurred (e.g., the system is overheating).
The alarm port uses a standard RJ45 connector.
Alarm Port Pin-out
The following table lists the pin assignments for the RJ45 alarm port.
Chapter 2
Option Card Slots
2-10
