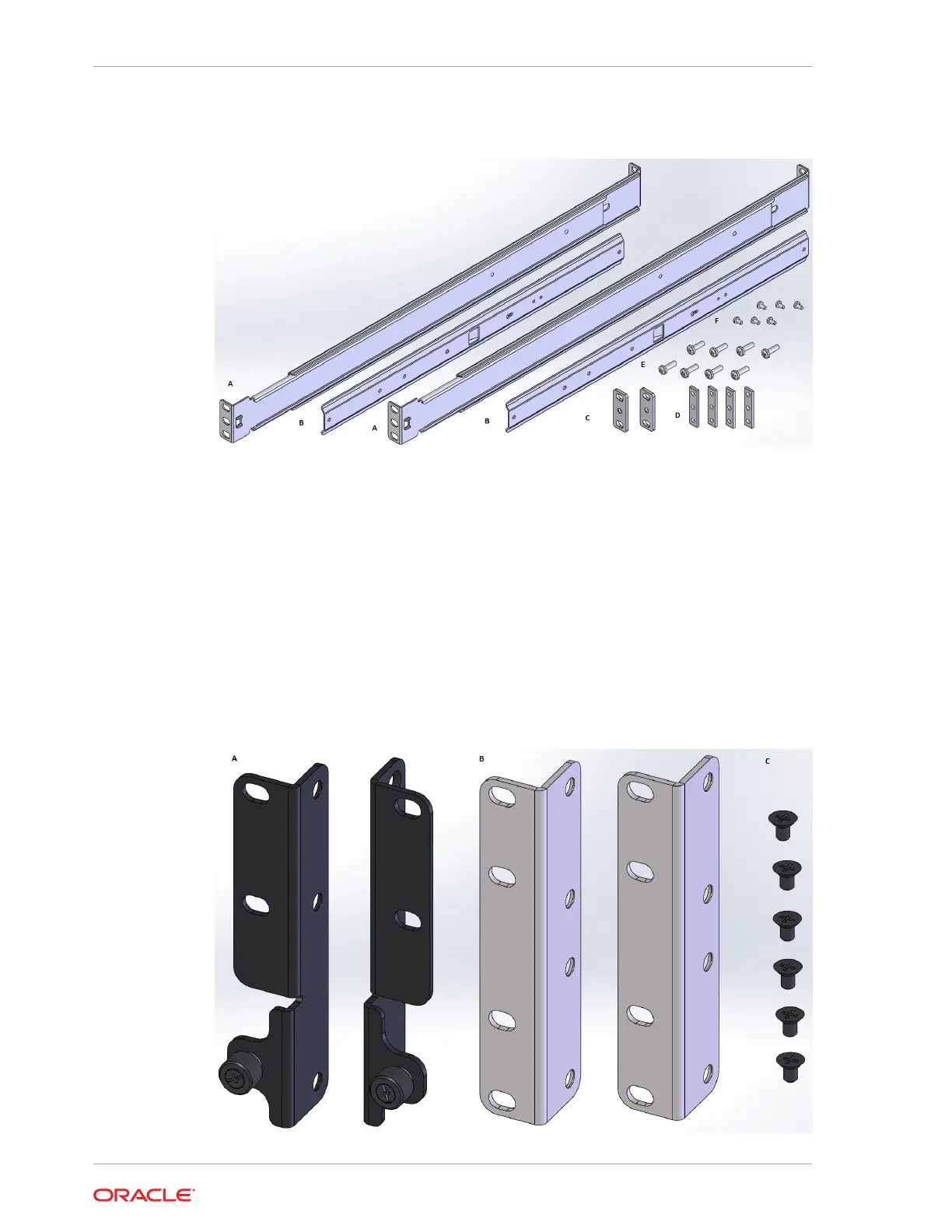

The following diagram shows all of the equipment rack installation hardware that ships
with the Acme Packet 6300/6350.
• A—Left and right stationary slide rails
• B—Left and right chassis slide rails
• C—Spacers
• D—Nut bars
• E—#10-32 x 5/8 pan head screws
• F—#6-32 x 5/16 pan head screws
Mounting Hardware
The following diagram shows the mounting hardware
that ships with the Acme Packet 6300/6350.
Chapter 2
Chassis
2-2
