• 2 x nut bars

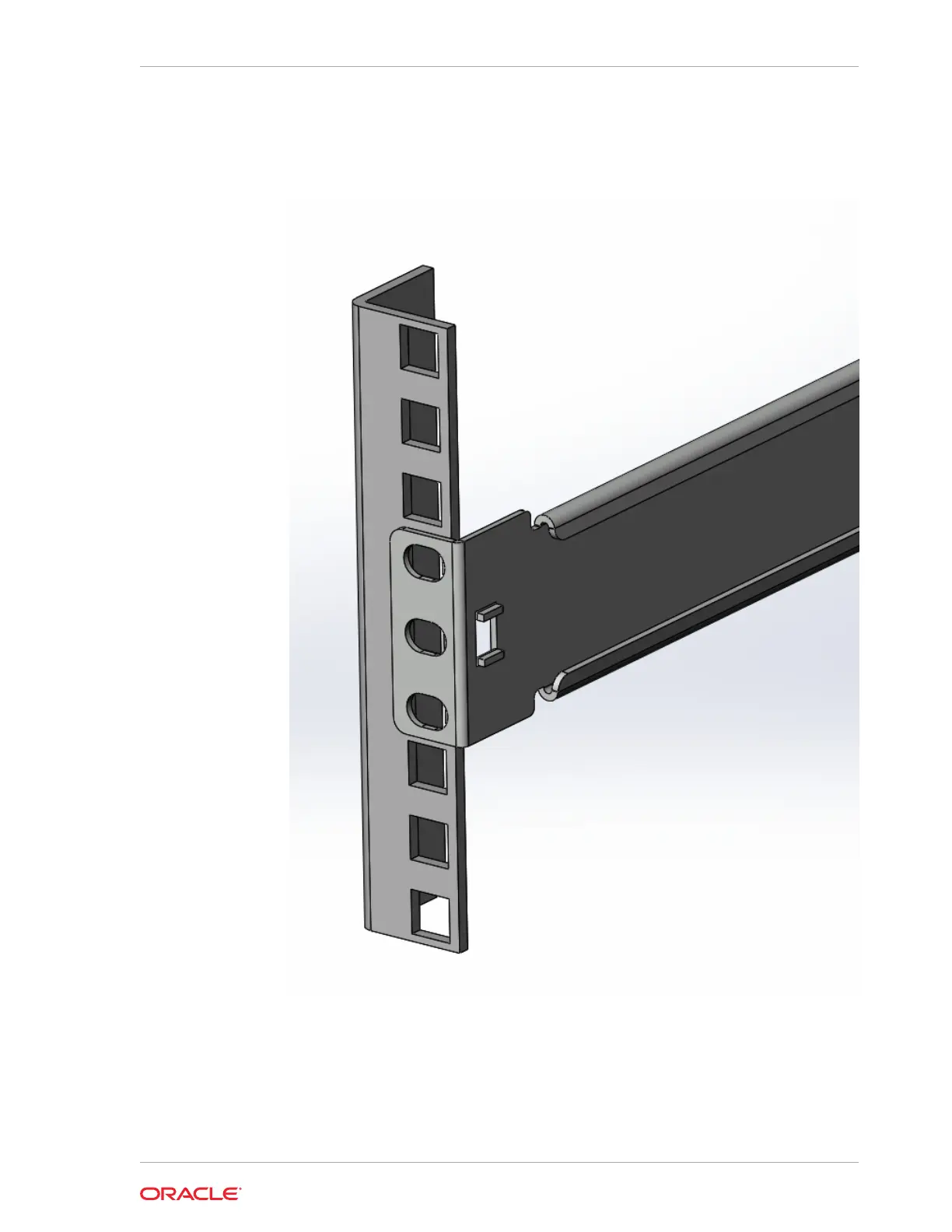

2. Line up the stationary slide rail end with three mounting slots with an appropriate
mount point on the front of the equipment rack.
Front Mount Point
3. Place 2 x 10-32 screws through the mounting spacer, through the stationary slide
rail ear, through the square rack slide rail.
4. Hold the nut bar behind the front rack slide rail.
5. Secure the 10-32 screw to the nut bar you are holding in place. Refer to the
following exploded view of procedure:
Chapter 4
Cabinet-Style 4-Post Chassis Installation
4-11
