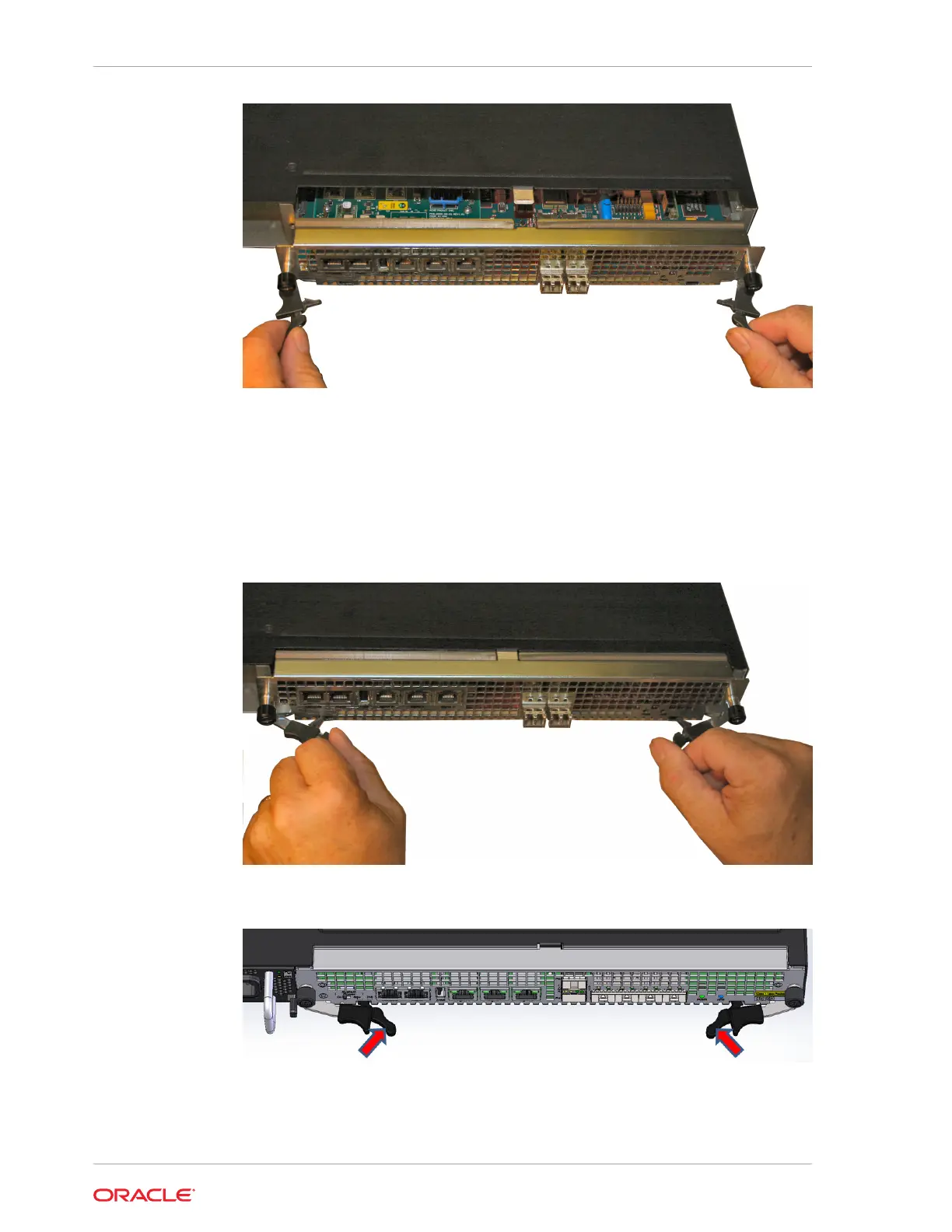

Installing the NIU/TCU (NIU Shown)
6. Continue sliding the NIU/TCU into the chassis until the ejection levers catch the
chassis. At this point, the ejection levers will start to fold inward as the NIU/TCU is
inserted into the chassis.
7. Fold both ejection levers inward toward the face of the NIU/TCU to draw the
physical interface card toward the system chassis complete the connection to the
motherboard.
Locking the NIU/TCU to the Chassis (NIU Shown)
Ensure pressure is applied to the ends of the ejector (not the sliding section) when
seating the NIU/TCU
8. Verify the lever catch is fully engaged with the bezel.
