Oracle Database Appliance X6-2-HA User Manual

Remove Faulty DIMMs
AppendixA • Servicing the Oracle Database Appliance Version 1 135

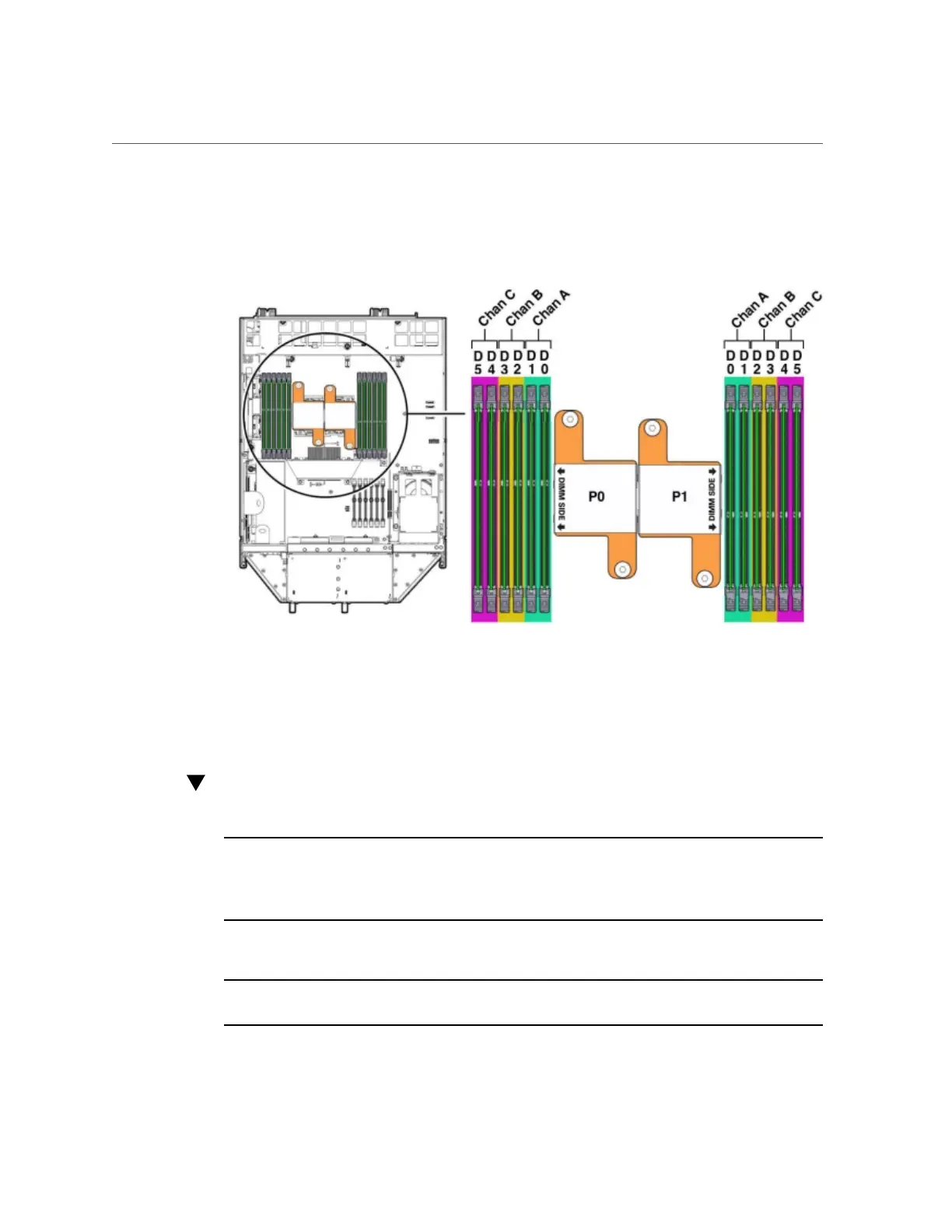

The following picture shows the physical layout of the DIMMs and CPUs. When viewing the
server node from the front, CPU0 (P0) is on the right.
Each processor socket supports three independent memory channels labeled channel A, B,
and C, where channel A is closest to the processor socket. Each channel supports two DIMM
slots, is controlled by an independent memory controller, and operates independent of the other
channels.
Remove Faulty DIMMs
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes removing DIMMs from Oracle Database Appliance Version 1.
Note - The DDR3 memory modules (DIMMs) are customer-replaceable units (CRUs) and do
not require an Oracle-qualified service person for replacement.
1.
Prepare the server node for service.
