Oracle Database Appliance X6-2-HA User Manual

Remove Boot Disk Backplane
170 Oracle Database Appliance Service Manual • June 2017
1.
Prepare the server node for service.
a.
Attach an antistatic wrist strap.
See “Performing Electrostatic Discharge and Antistatic Prevention
Measures” on page 112.
b.
Remove the server node from the system.
Power is removed from the server node when you remove it from the system. See
“Removing Server Nodes From the System Chassis” on page 113.
c.
Remove the server node top cover.
See “Removing the Server Node Top Cover” on page 114.
2.
Unseat the boot disk drives.
See “Remove a Boot Drive” on page 122.
3.
Remove the boot disk backplane.
a.

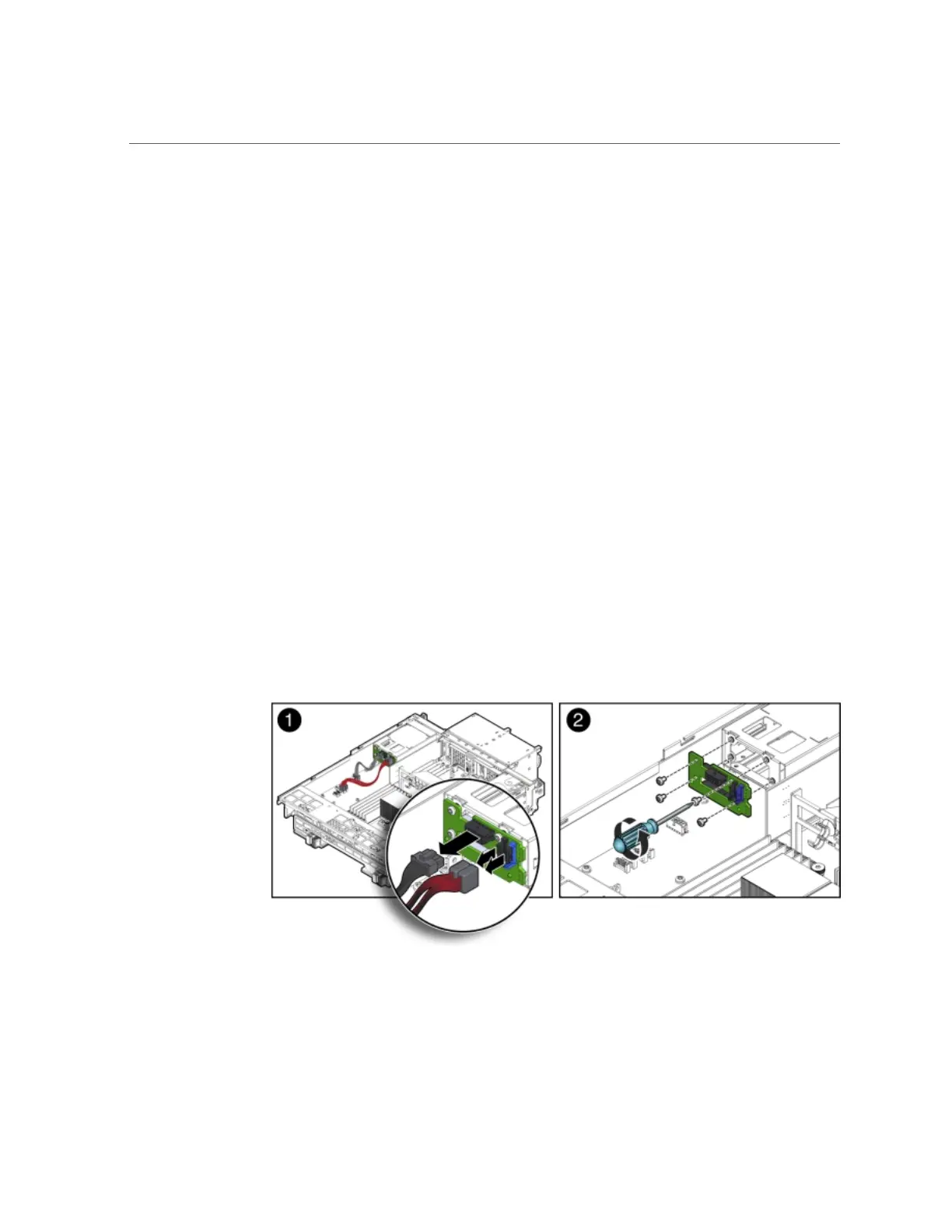

Disconnect the power and data cables [1].
b.
Remove the four Phillips screws that secure the boot disk backplane to the
rear-mounted disk drives assembly and remove the backplane [2].
4.
Place the boot disk backplane on an antistatic mat.
